Automatic Transaxle Shift Control: Removal

Remove the push button, the spring and the cap.

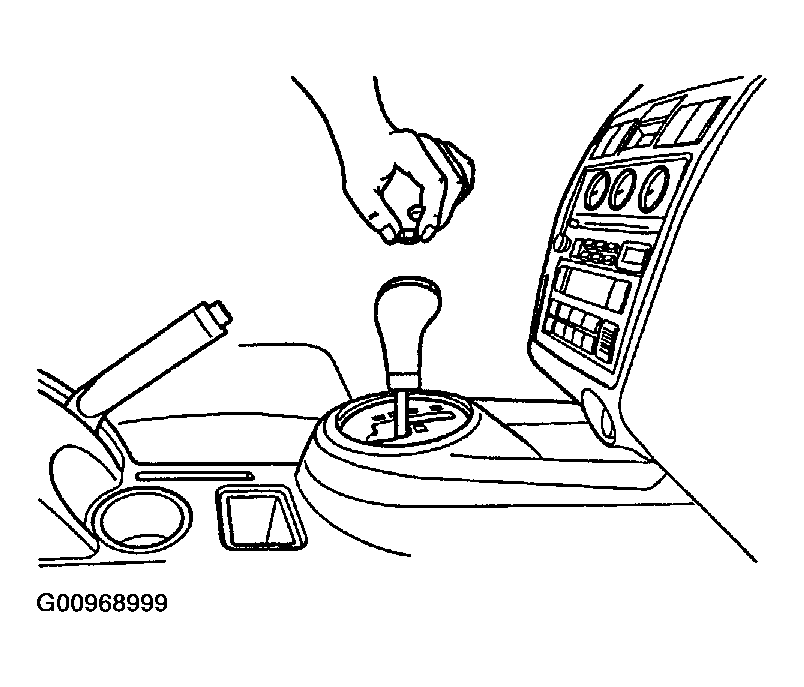

Fig 1: Removing The Push Button, The Spring & The Cap
Courtesy of HYUNDAI MOTOR CO.
Remove the knob mounting nut.

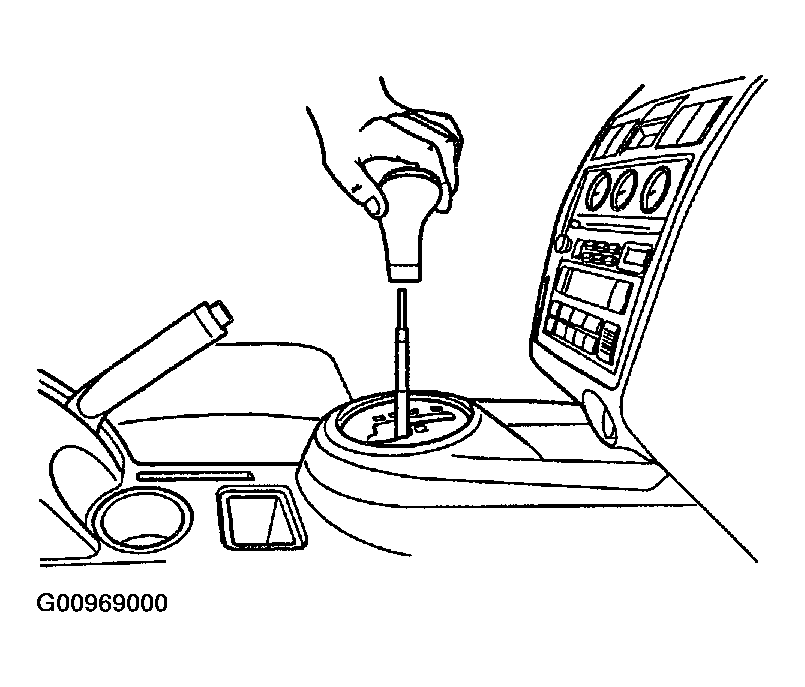

Fig 2: Removing The Knob Mounting Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the shift knob.

Fig 3: Removing Shift Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the console upper cover.
Remove the console assembly.

Fig 4: Removing The Console Assembly
Courtesy of HYUNDAI MOTOR CO.

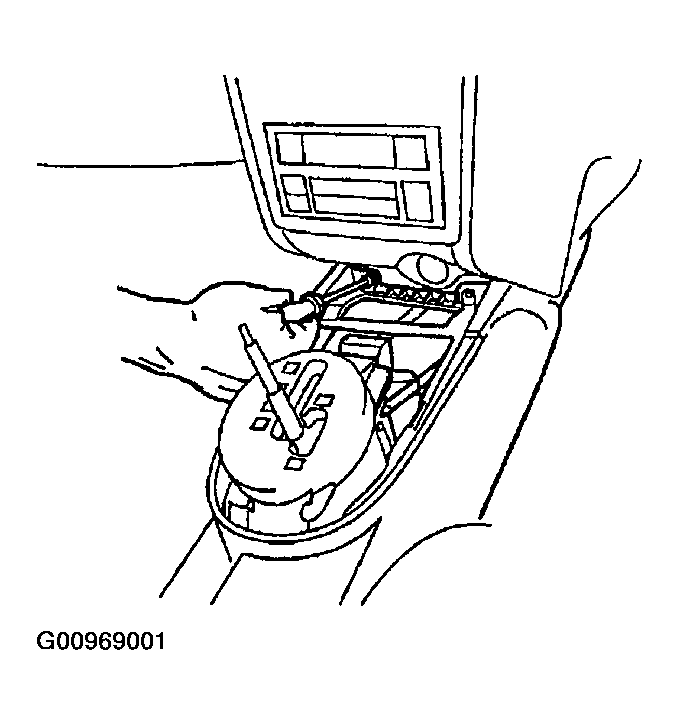

Remove the indicator panel.

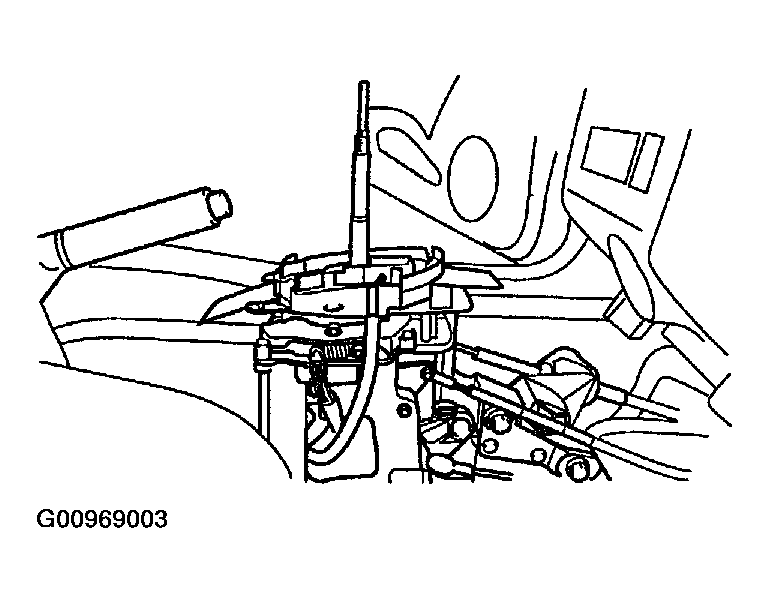

Fig 5: Removing Indicator Panel
Courtesy of HYUNDAI MOTOR CO.

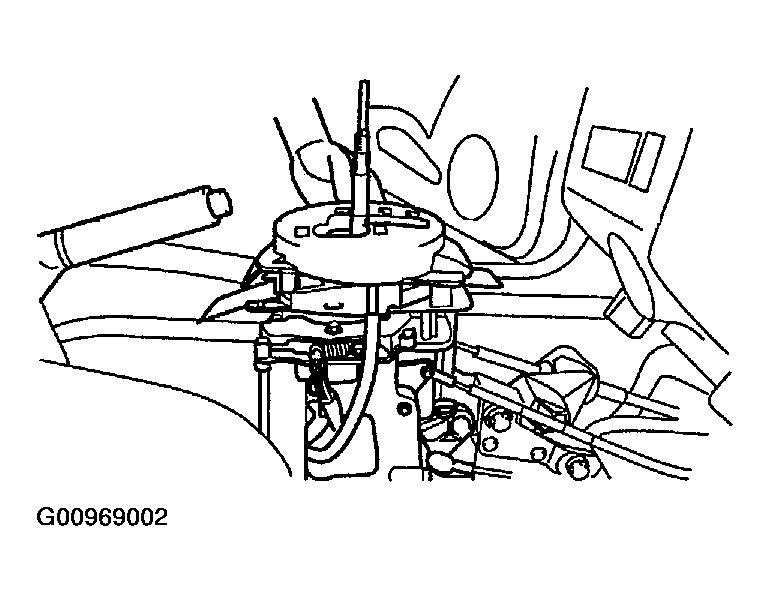

Remove the indicator lower cover.

Fig 6: Removing The Indicator Lower Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the indicator plate.

Fig 7: Removing Indicator Plate
Courtesy of HYUNDAI MOTOR CO.

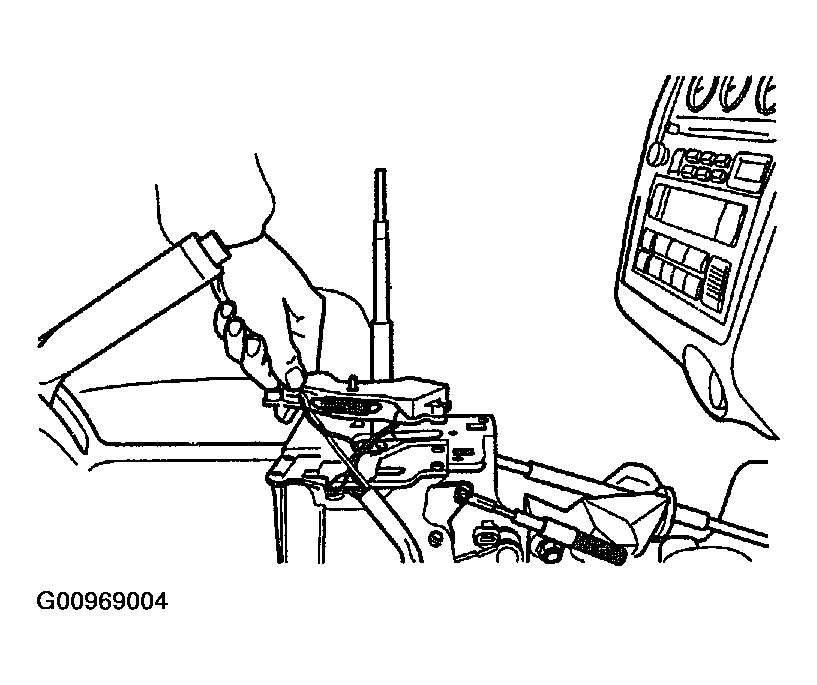

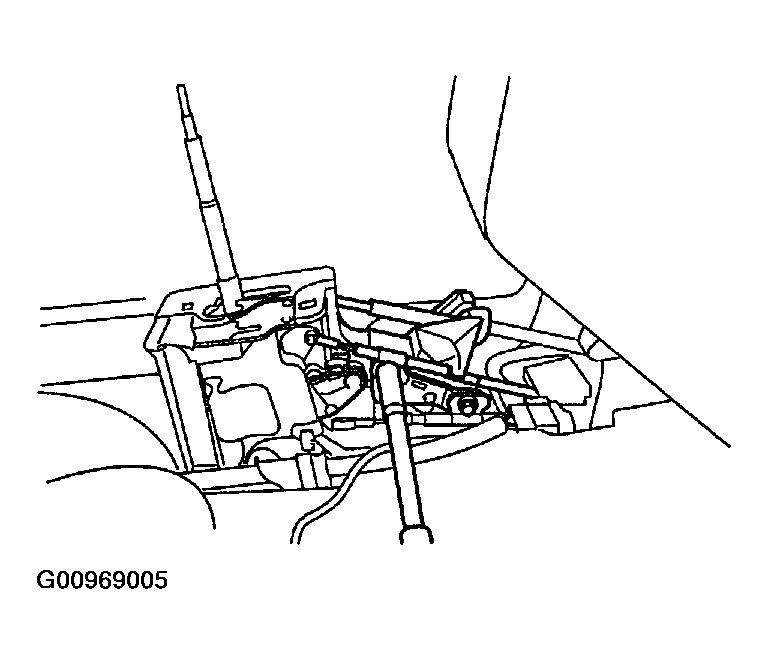

Remove the key lock cable nut.

Fig 8: Removing The Key Lock Cable Nut
Courtesy of HYUNDAI MOTOR CO.

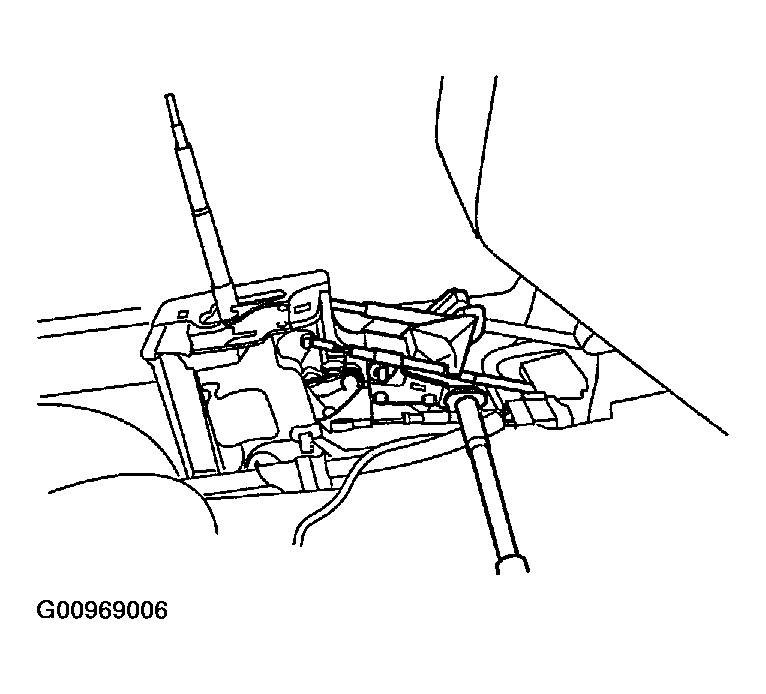

Remove the shift lock cable nut.

Fig 9: Removing The Shift Lock Cable Nut
Courtesy of HYUNDAI MOTOR CO.

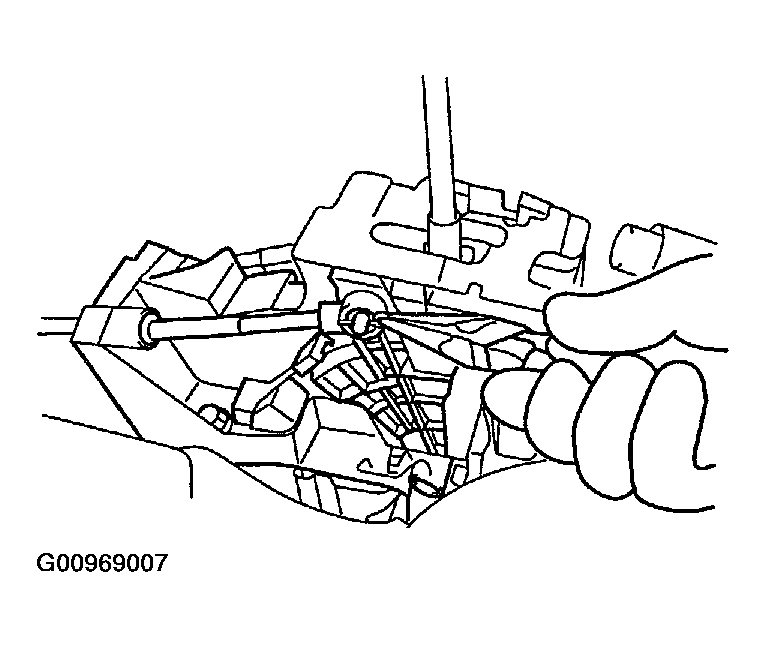

Remove the control cable snap pin.

Fig 10: Removing The Control Cable Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable clip and the control cable.

Fig 11: Removing The Control Cable Clip & The Control Cable
Courtesy of HYUNDAI MOTOR CO.

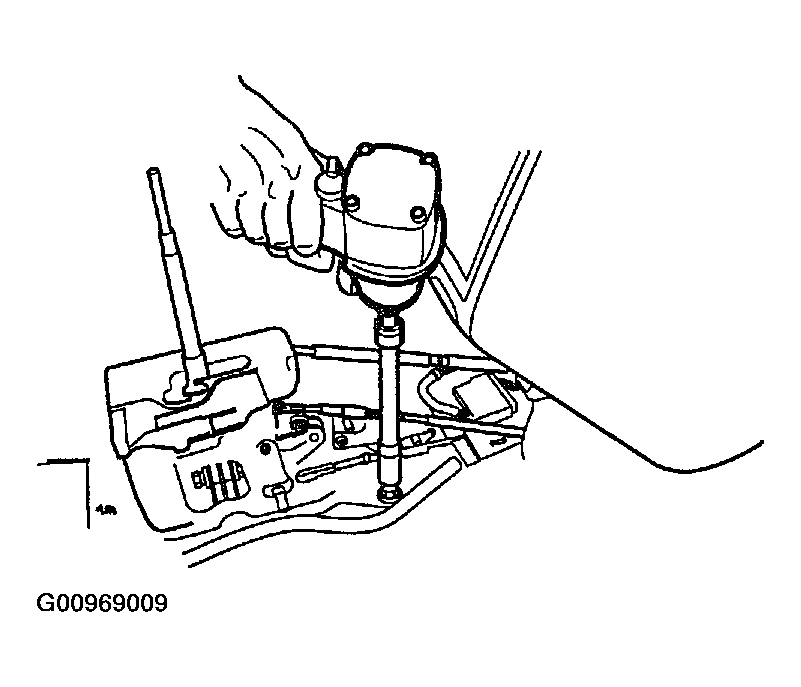

Remove the shift lever bracket bolt.

Fig 12: Removing The Shift Lever Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.

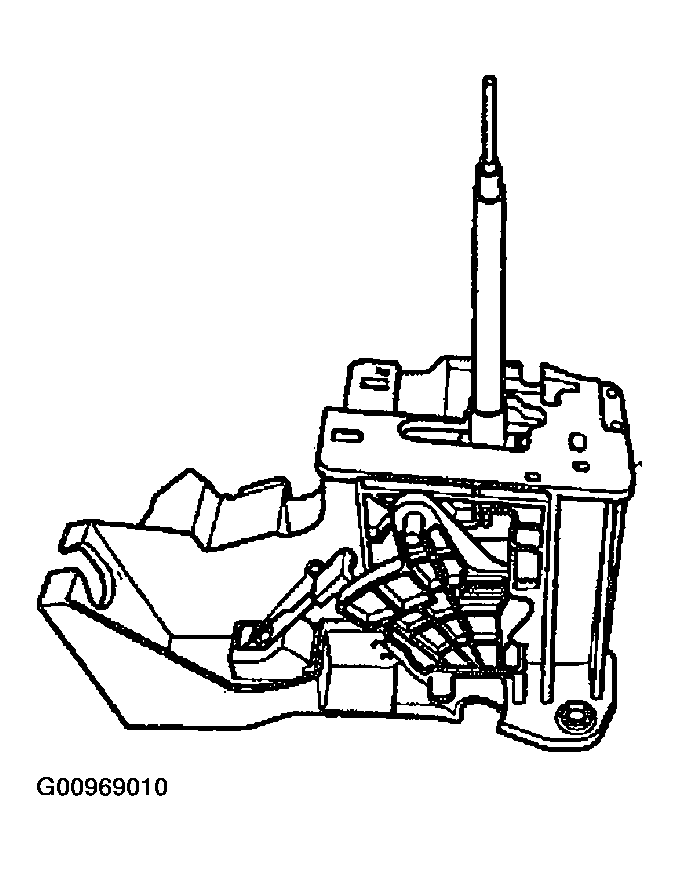

Remove the shift lever.

Fig 13: Removing The Shift Lever
Courtesy of HYUNDAI MOTOR CO.
