Automatic Transaxle: Removal

Remove the engine cover.

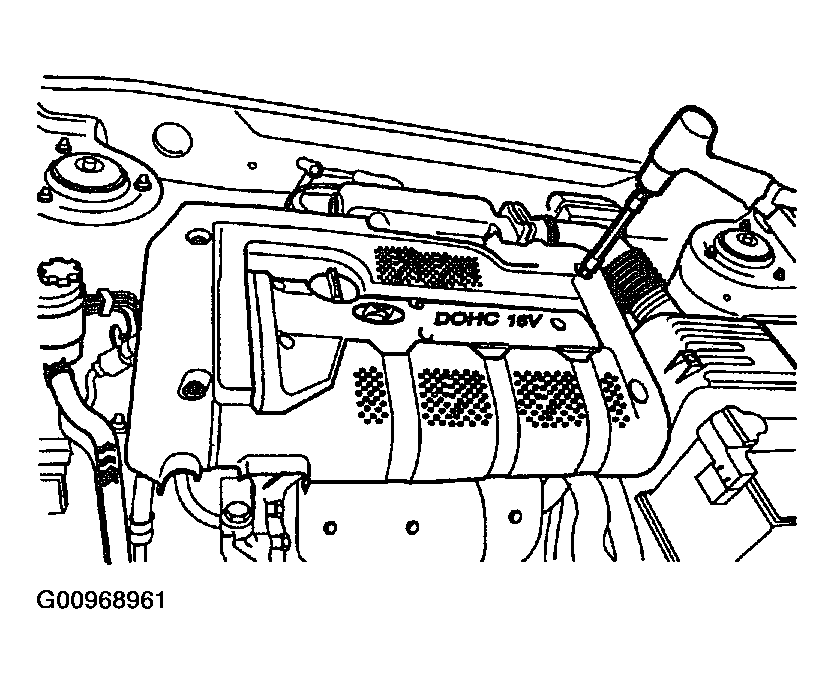

Fig 1: Identifying Engine Cover
Courtesy of HYUNDAI MOTOR CO.

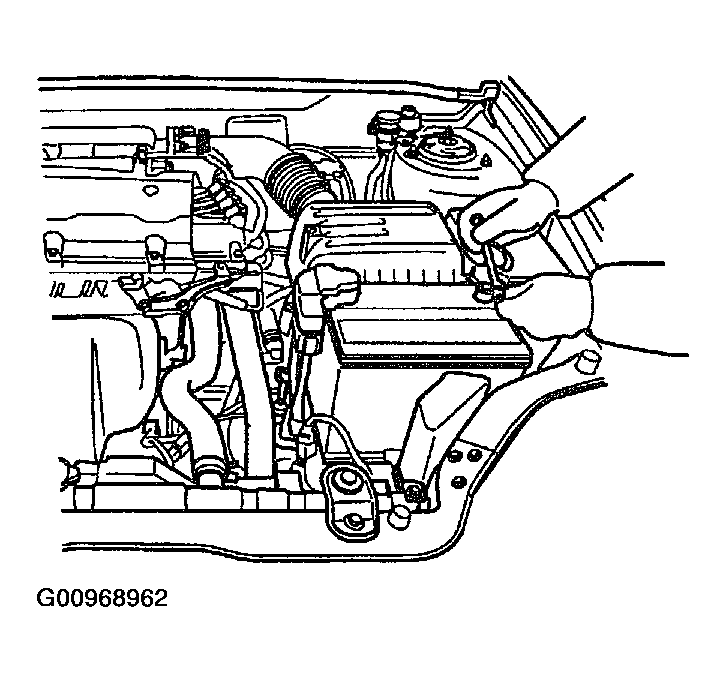

Remove the battery terminal.

Fig 2: Removing Battery Terminal
Courtesy of HYUNDAI MOTOR CO.
Remove the air duct.

Fig 3: Removing Air Duct
Courtesy of HYUNDAI MOTOR CO.

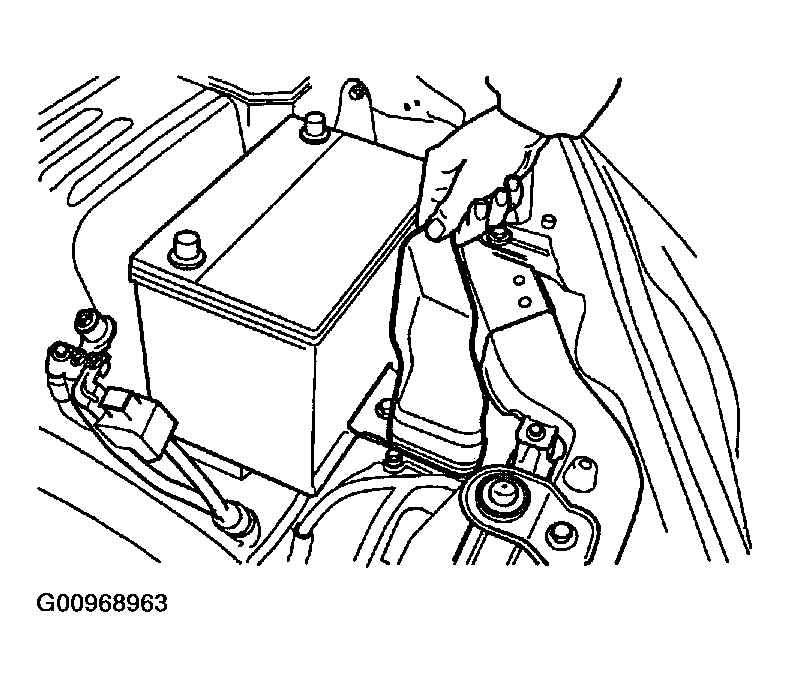

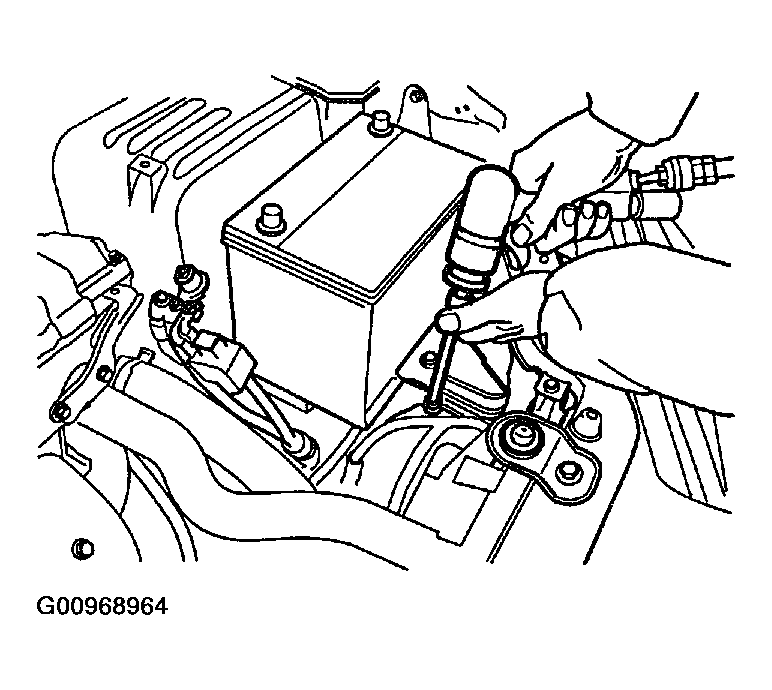

Remove the battery tray.

Fig 4: Removing Battery Tray
Courtesy of HYUNDAI MOTOR CO.

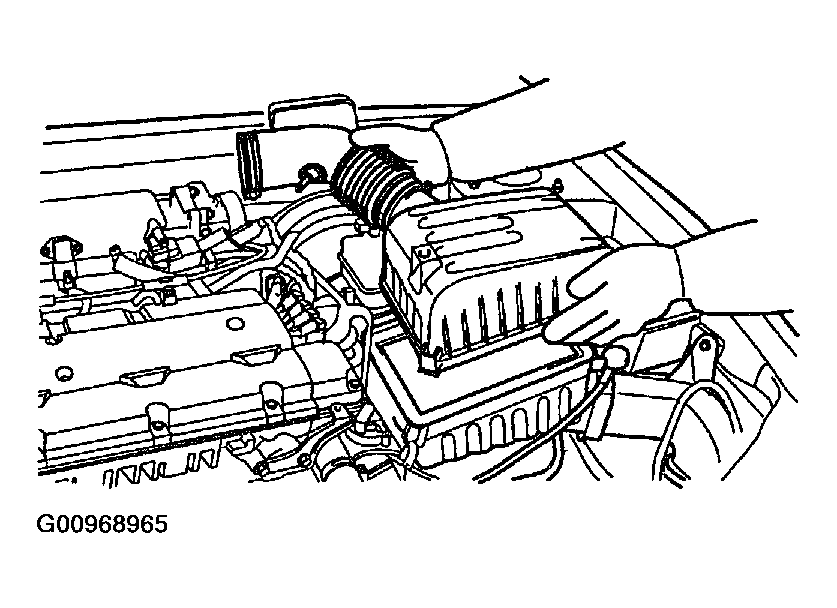

Remove the air cleaner.
1. Upper

  Fig 5: Removing Upper Air Cleaner
  Courtesy of HYUNDAI MOTOR CO.
2. Lower

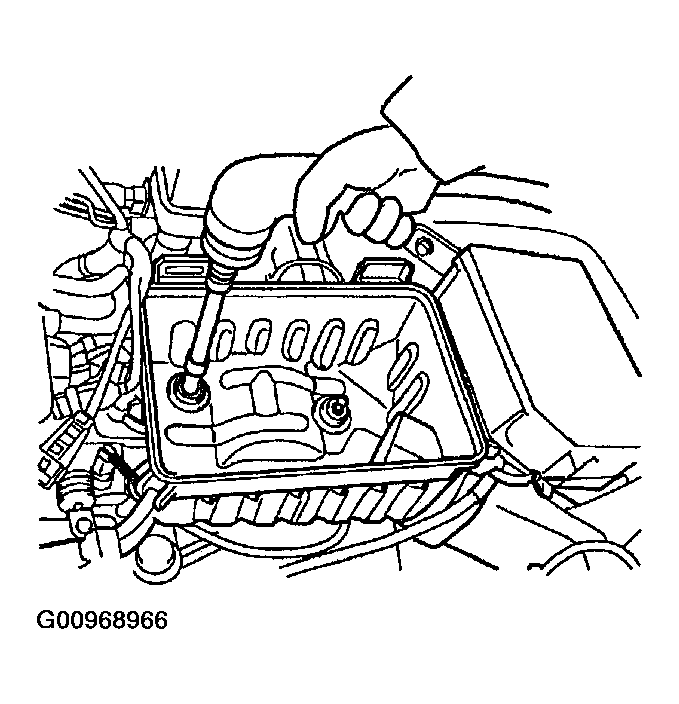

  Fig 6: Removing Lower Air Cleaner
  Courtesy of HYUNDAI MOTOR CO.

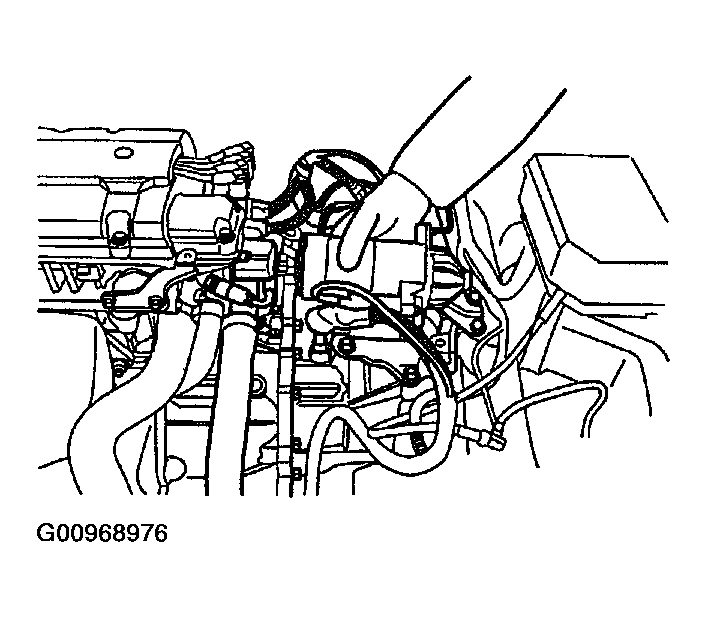

After removing the CKP sensor, O2 sensor and oil pressure switch wiring bracket, separate the connectors.

Fig 7: Removing Connectors Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the speedometer sensor connector.
Remove the transaxle range switch.

Fig 8: Identifying Transaxle Range Switch
Courtesy of HYUNDAI MOTOR CO.

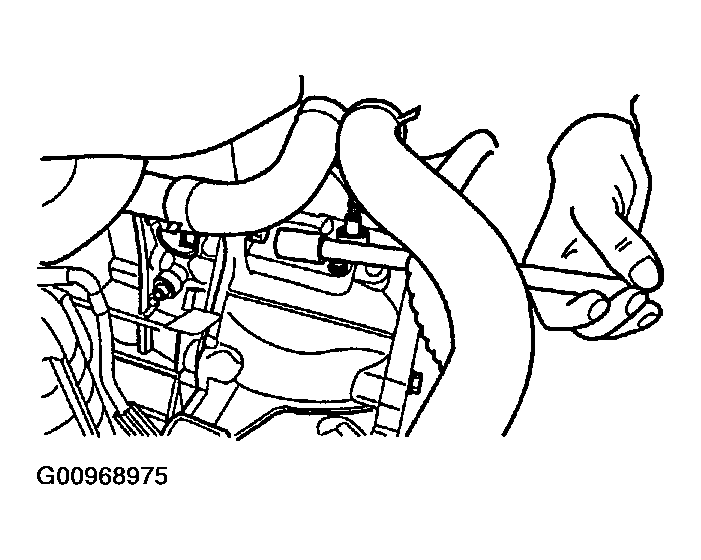

Remove the oil cooler hose.

Fig 9: Identifying Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

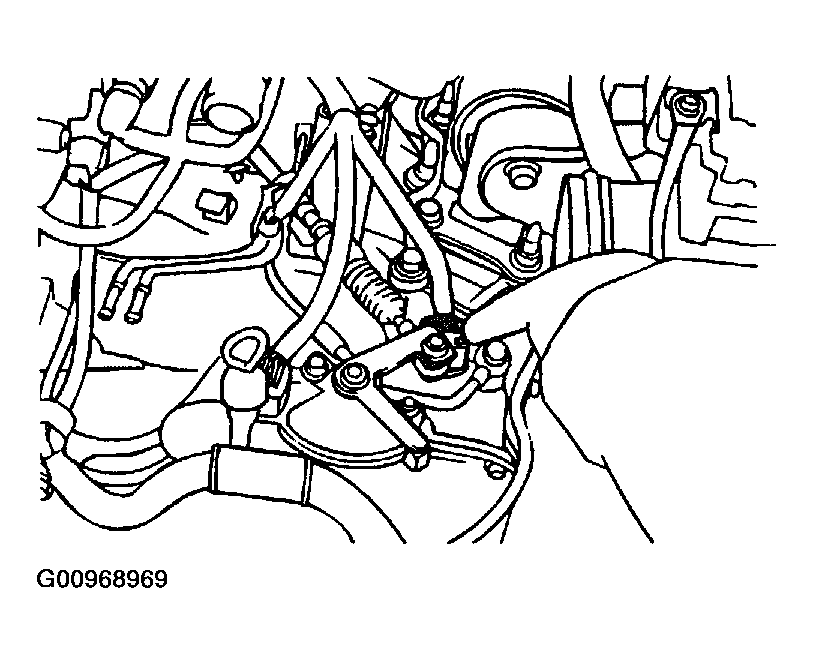

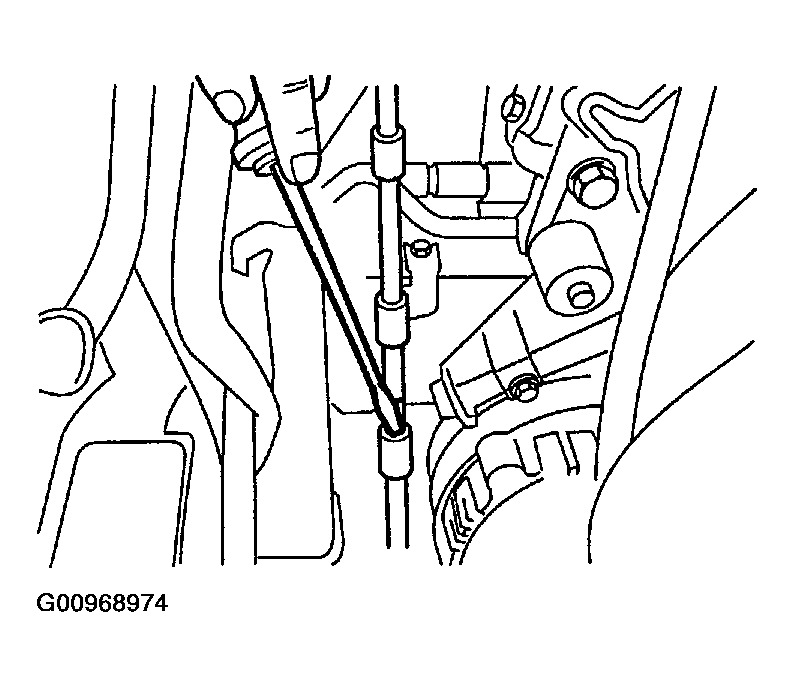

Remove the clip (transaxle side) of the shift cable.

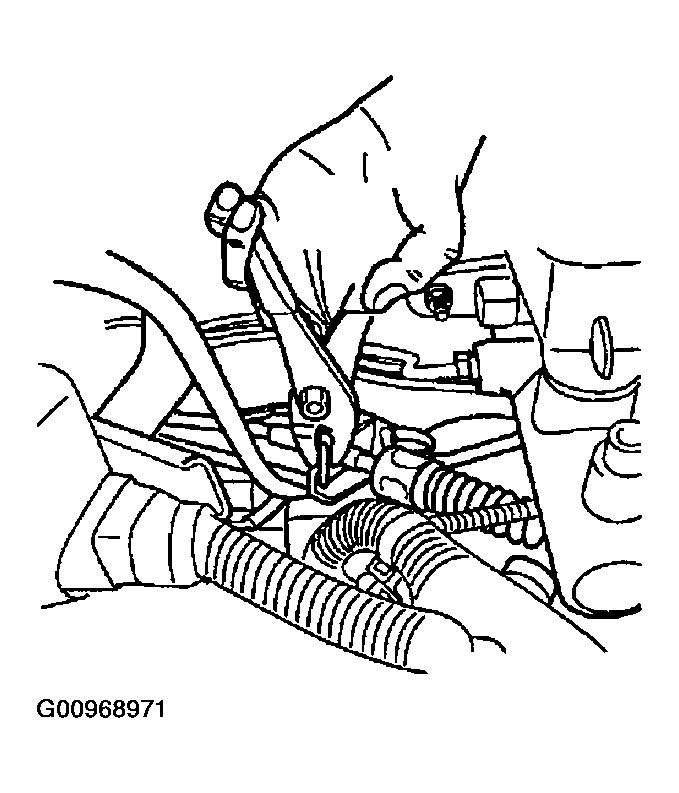

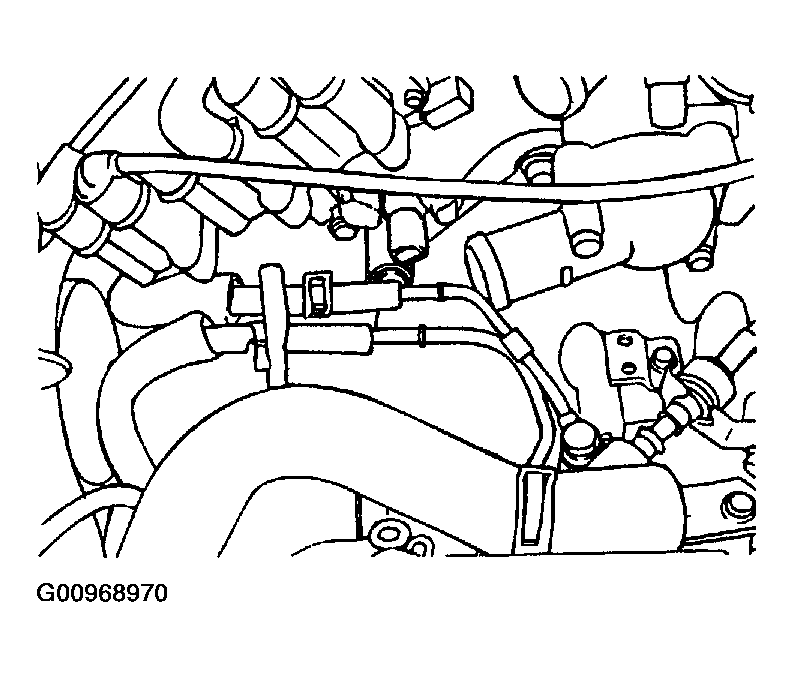

Fig 10: Removing The Clip Of The Shift Cable
Courtesy of HYUNDAI MOTOR CO.
Separate the steering column shaft joint.

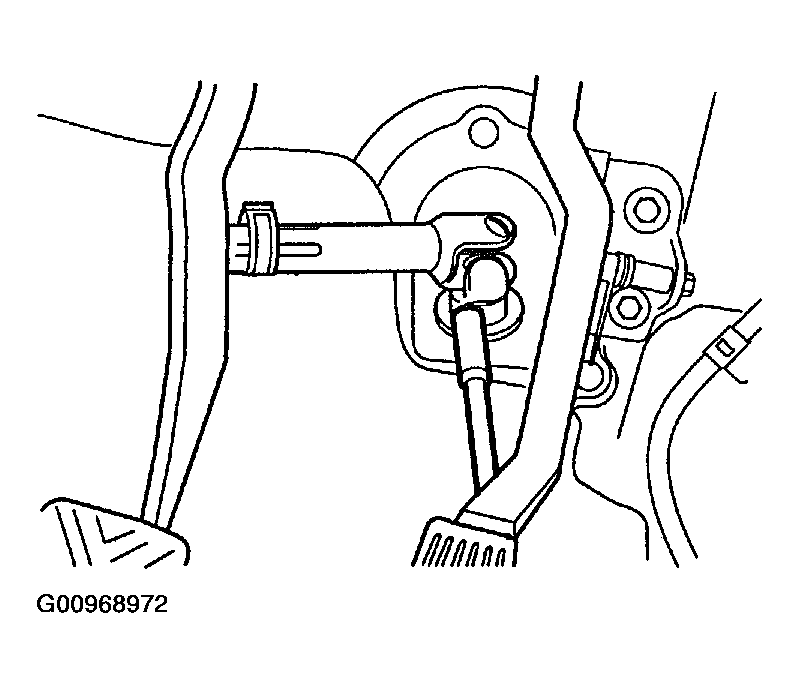

Fig 11: Separate The Steering Column Shaft Joint
Courtesy of HYUNDAI MOTOR CO.

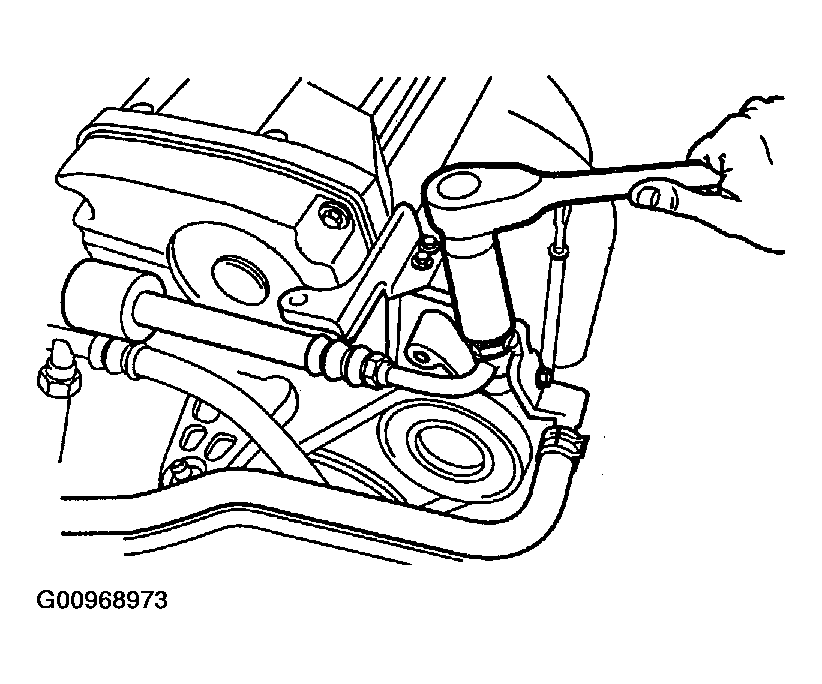

Separate the power steering oil pump hose.

Fig 12: Separating The Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to leak after separating.

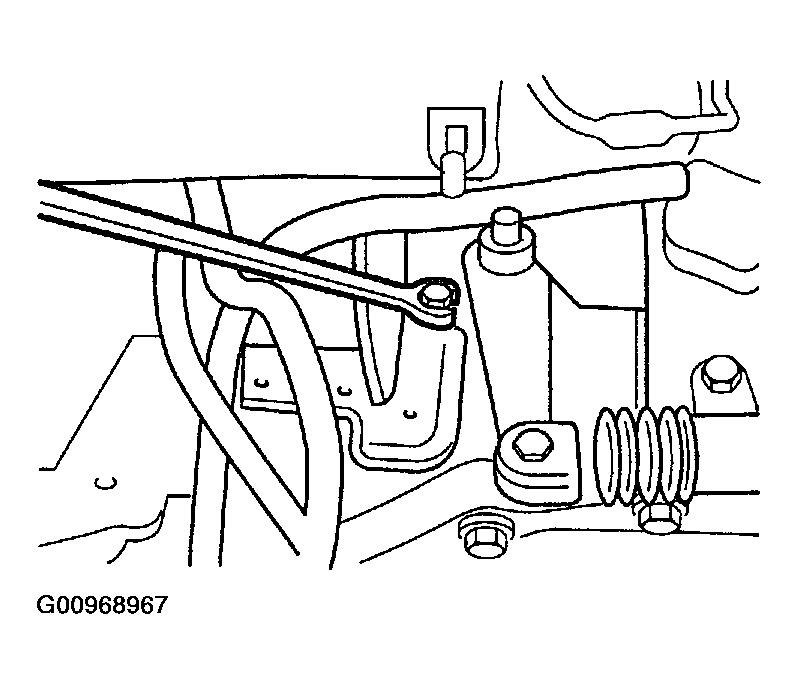

Separate the hose after removing the clip of the power steering return hose.

Fig 13: Separating Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.

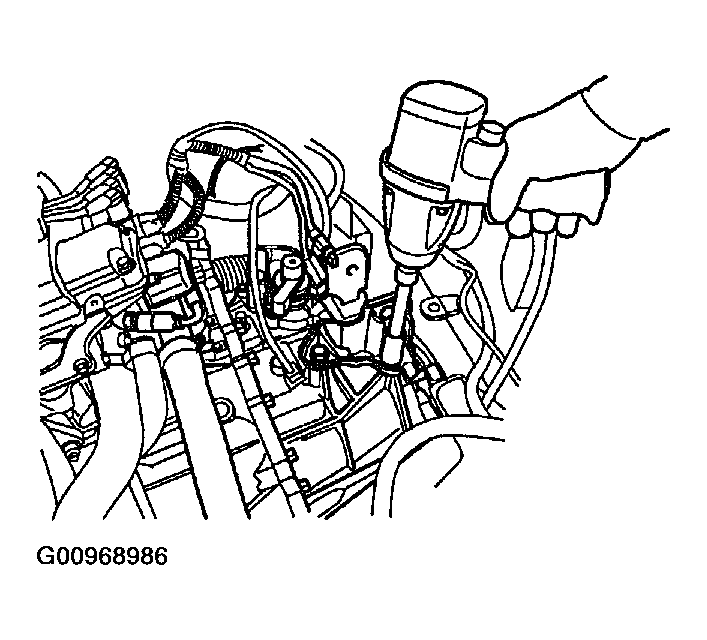

Fig 14: Removing The Upper Connecting Transaxle Bolt
Courtesy of HYUNDAI MOTOR CO.
Separate the start motor.

Fig 15: Separating The Start Motor
Courtesy of HYUNDAI MOTOR CO.
Install the engine support fixture.

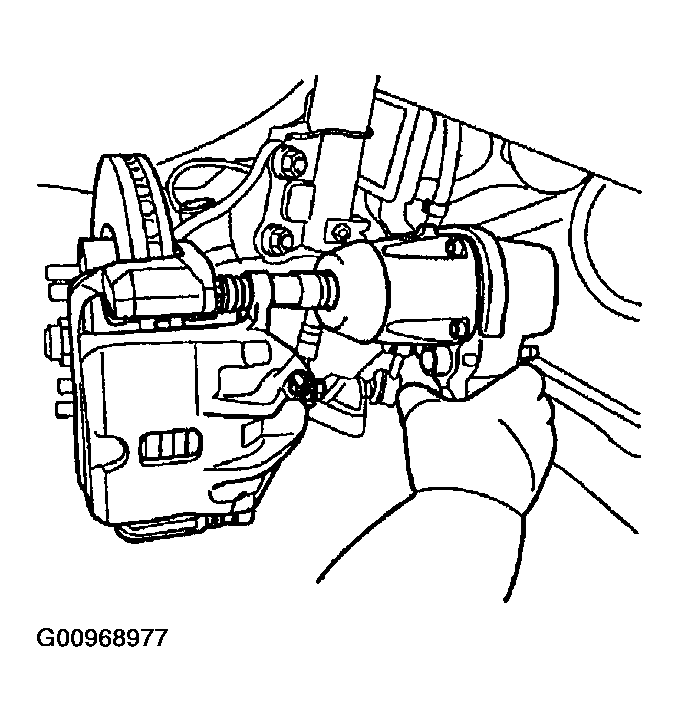

After removing the tire, remove the caliper.

Fig 16: Removing Brake Caliper
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle side cover.

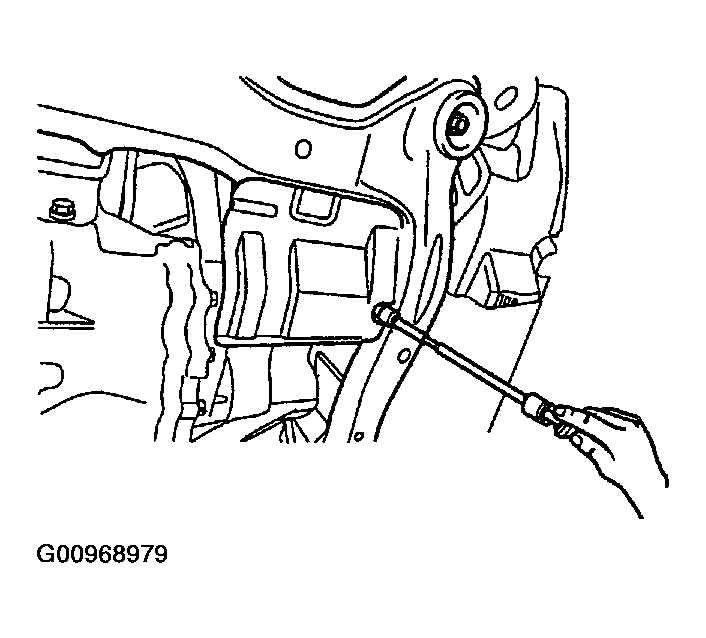

Fig 17: Removing The Transaxle Side Cover
Courtesy of HYUNDAI MOTOR CO.

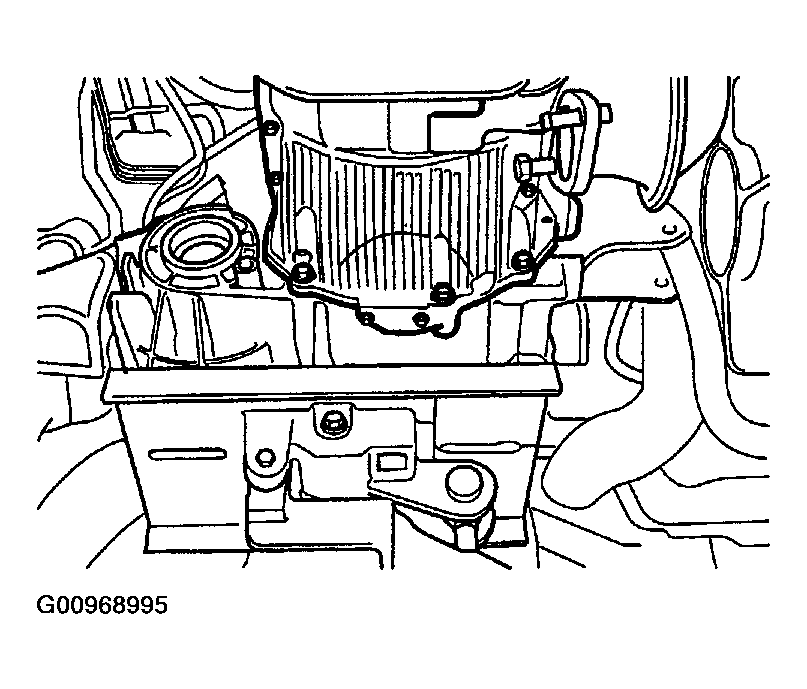

Remove the transaxle under cover.

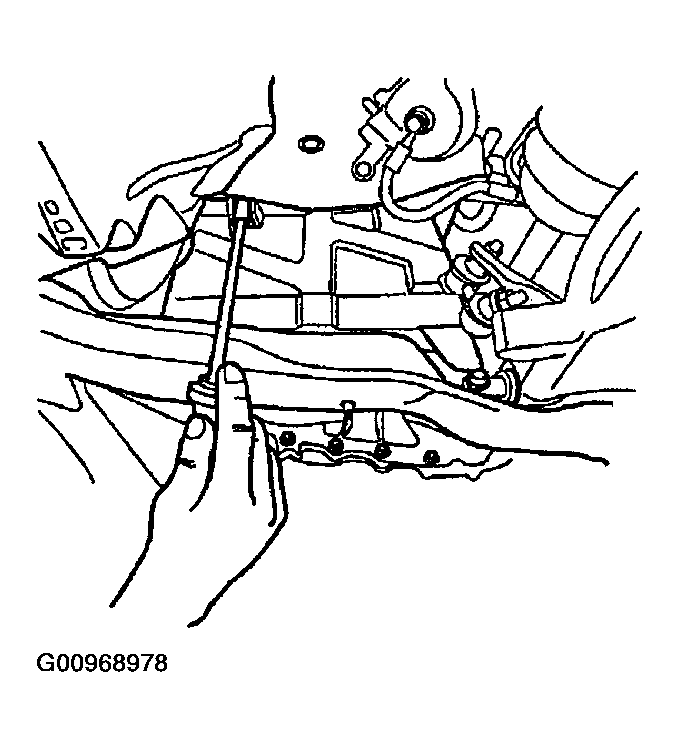

Fig 18: Removing The Transaxle Under Cover
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end.

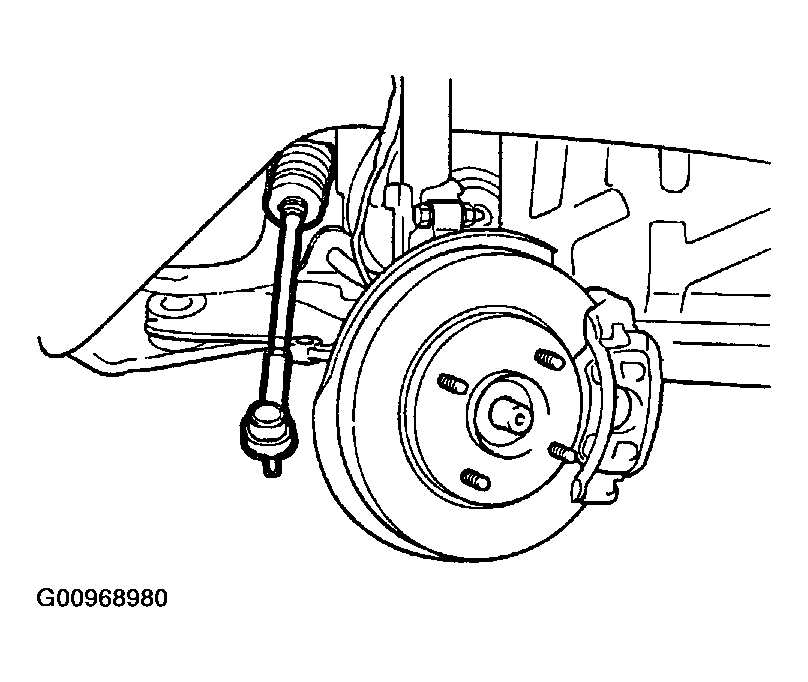

Fig 19: Separating Tie Rod End
Courtesy of HYUNDAI MOTOR CO.

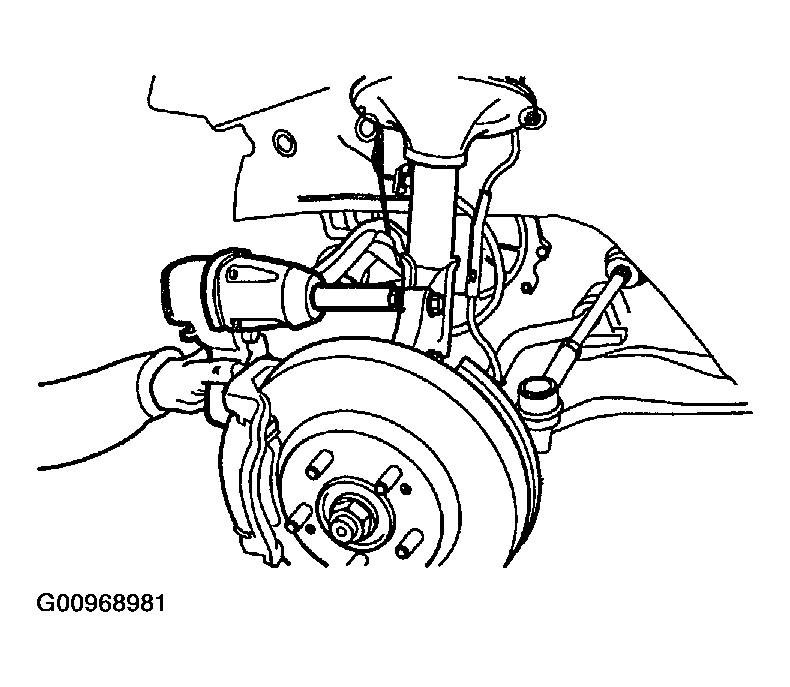

Remove the wheel speed sensor and the knuckle mounting bolt.

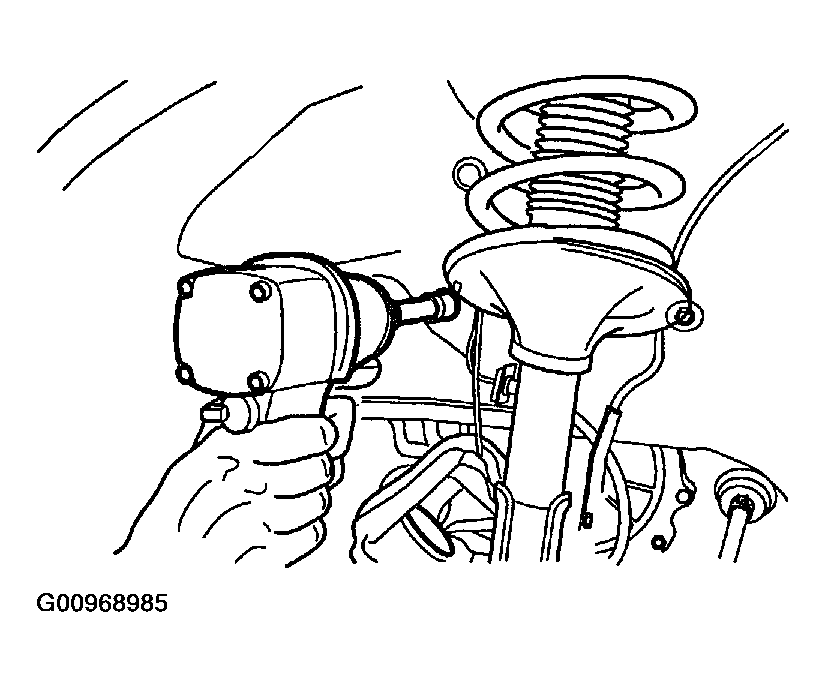

Fig 20: Separating Wheel Knuckle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

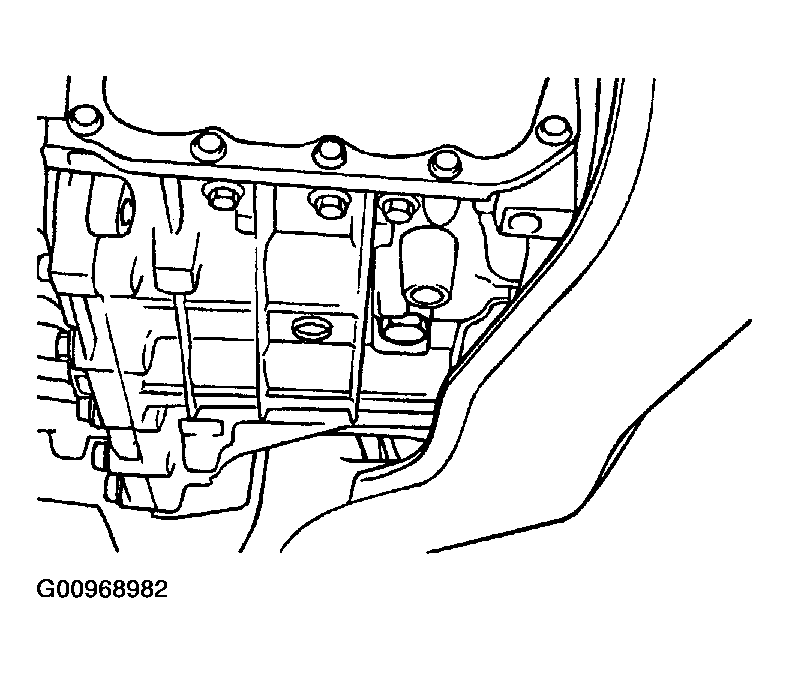

Drain the oil.

Fig 21: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle mounting bracket.

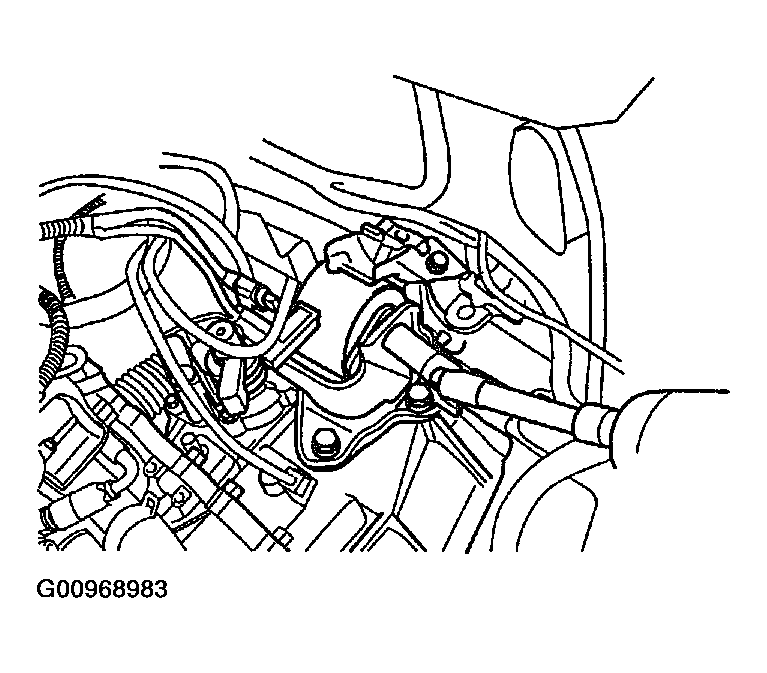

1. Insulator bolt

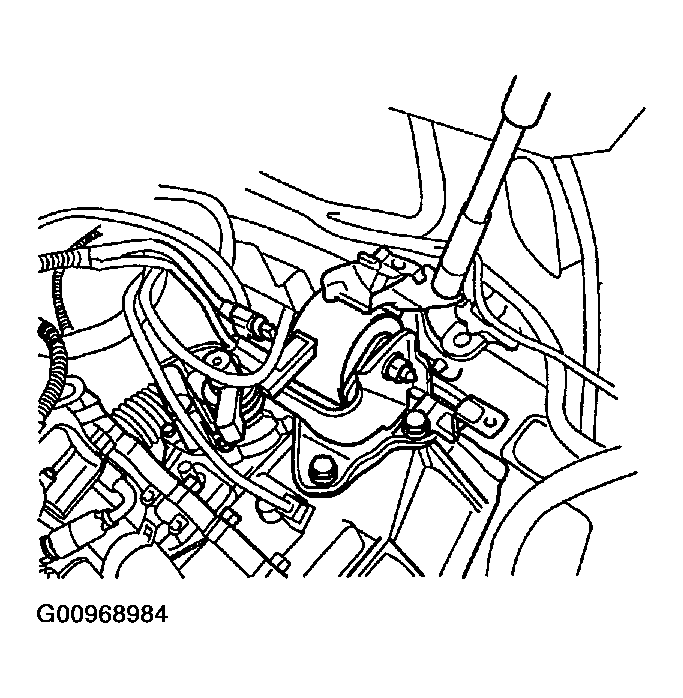

  Fig 22: Removing Transaxle Mounting Bracket Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

  Fig 23: Removing Upper Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.

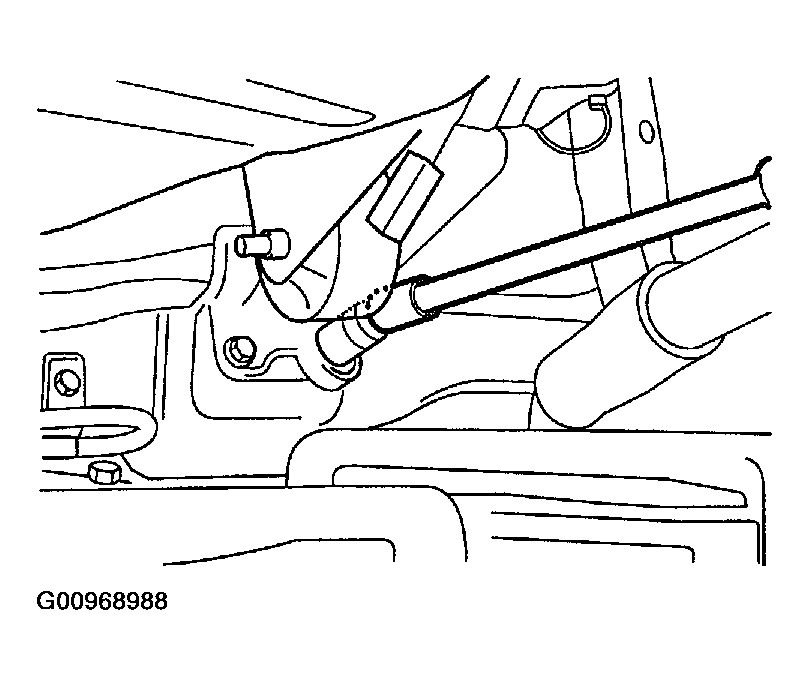

3. Body mounting bolt (Side)

  Fig 24: Removing Side Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt.

  Fig 25: Removing Transaxle Side Mounting Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.

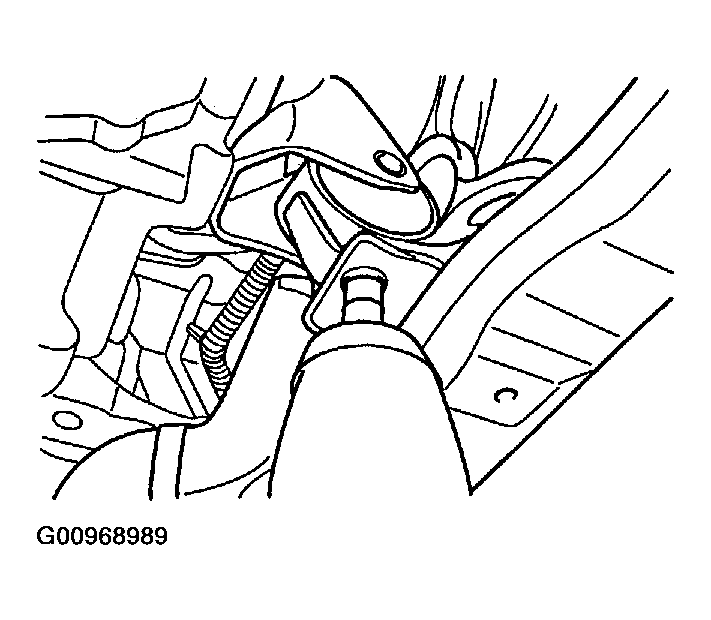

1. Insulator bolt

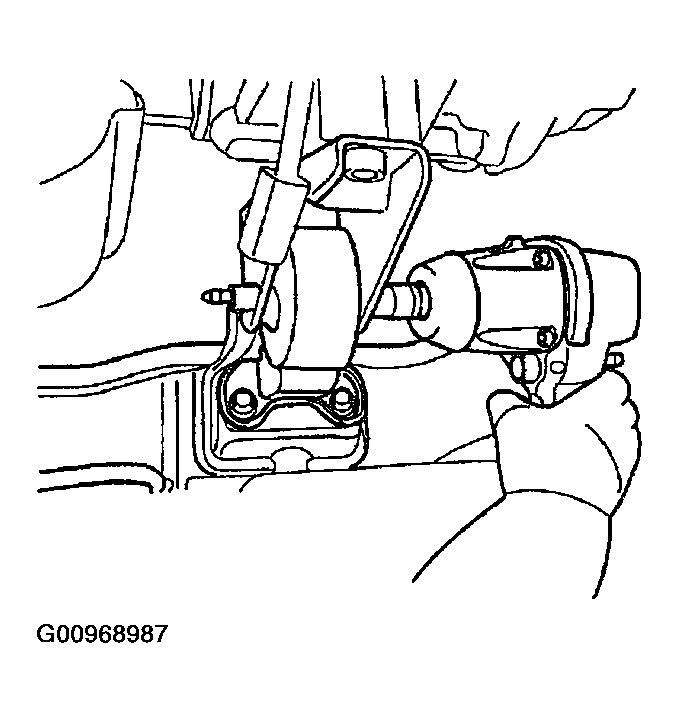

  Fig 26: Removing Front Roller Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

  Fig 27: Removing Upper Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)

  Fig 28: Removing Lower Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.

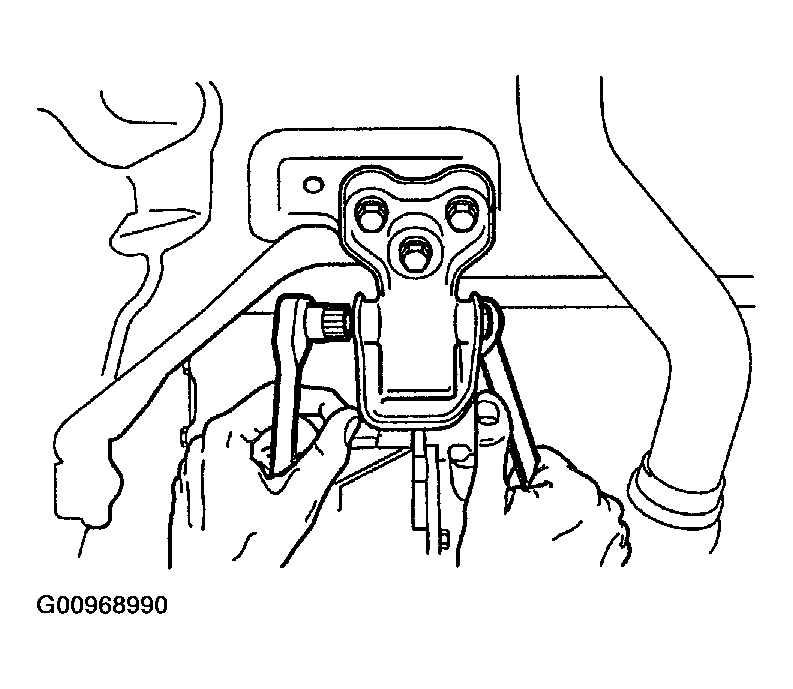

1. Insulator bolt

  Fig 29: Remove The Rear Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.

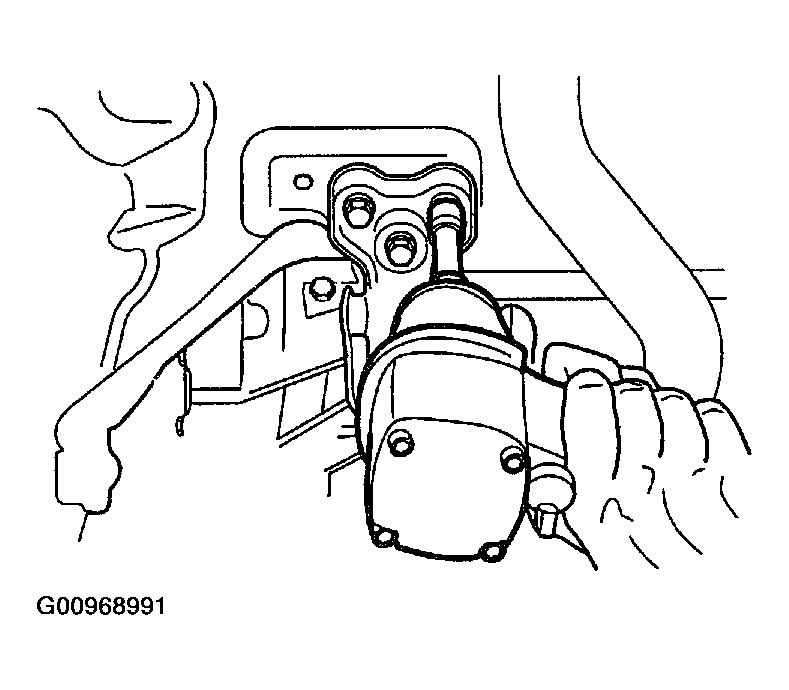

2. Stopper bolt

  Fig 30: Removing Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.
Remove the front muffler.

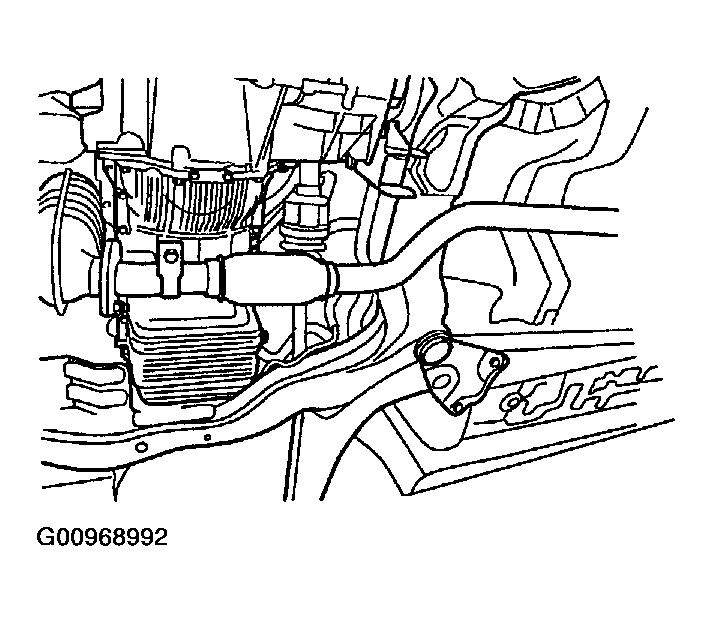

Fig 31: Identifying Front Muffler
Courtesy of HYUNDAI MOTOR CO.
Remove the sub frame mounting bolt.

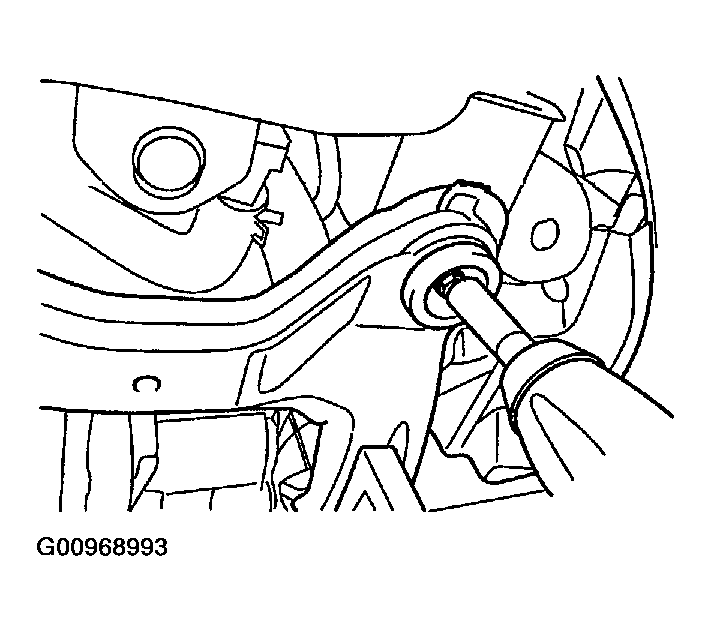

Fig 32: Removing Sub Frame Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the jack under the transaxle assembly.

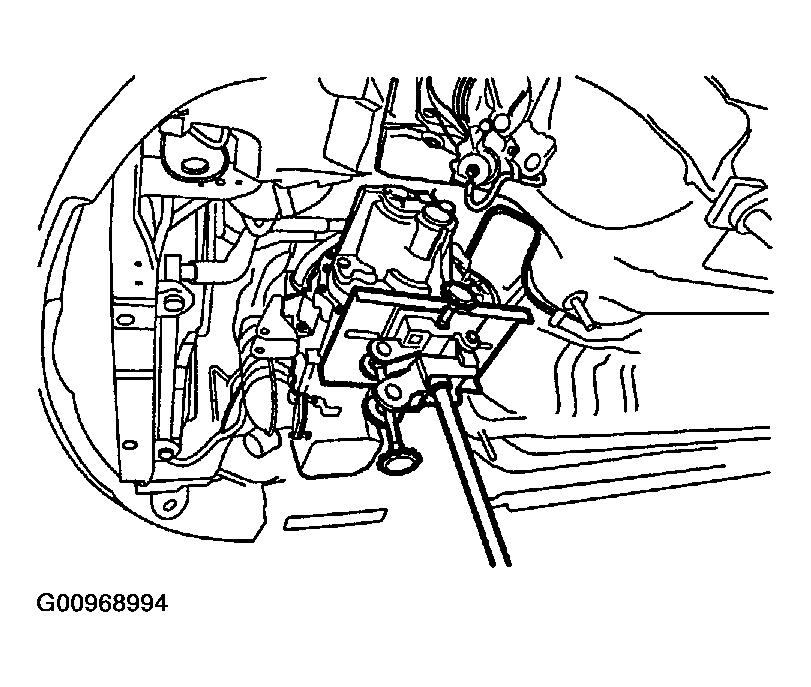

Fig 33: Installing Jack
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle lower mounting bolt to the engine.

Fig 34: Identifying Transaxle Mounting Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle assembly.
