Transaxle Range Switch Continuity Check

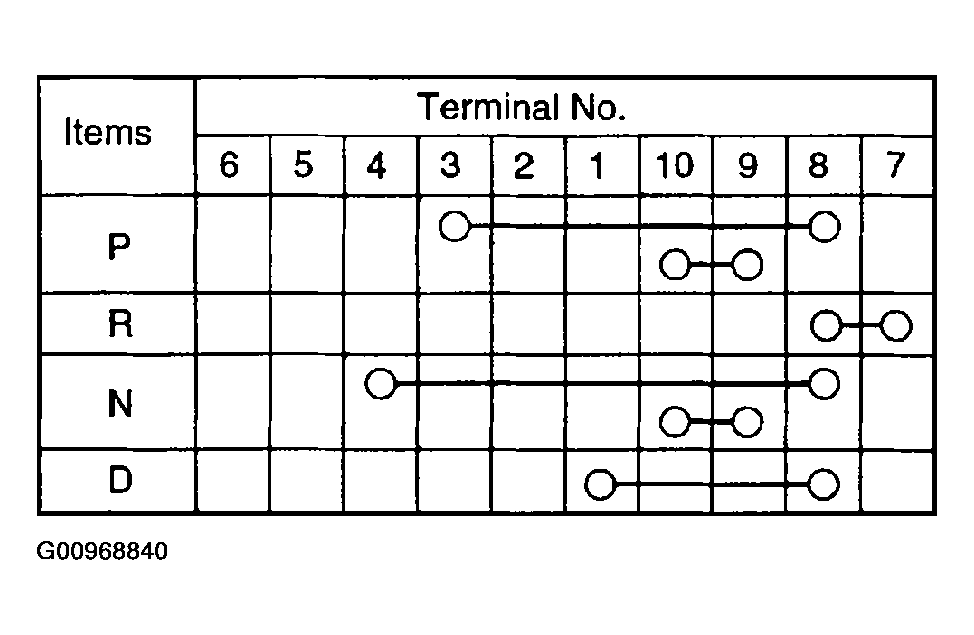

Fig 1: Transaxle Range Switch Continuity Table
G00968840Courtesy of HYUNDAI MOTOR CO.

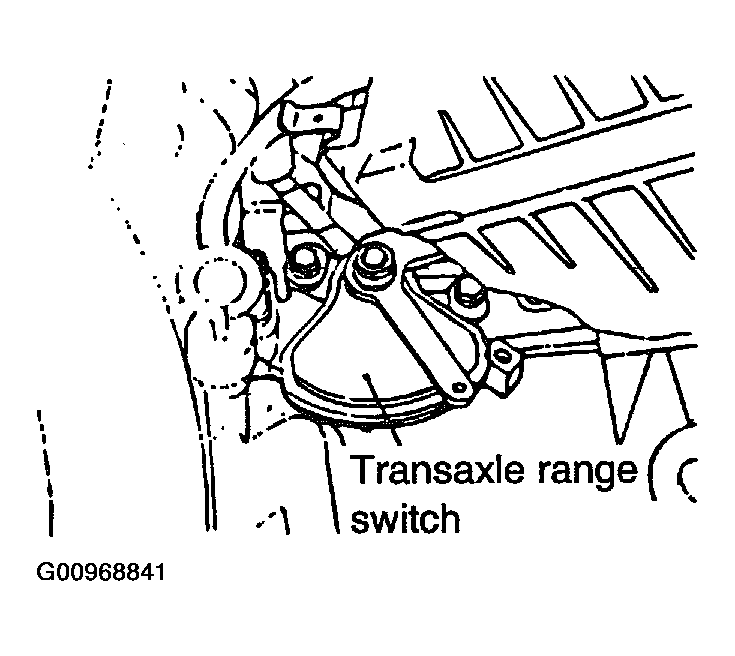

Fig 2: Identifying Transaxle Range Switch
G00968841Courtesy of HYUNDAI MOTOR CO.

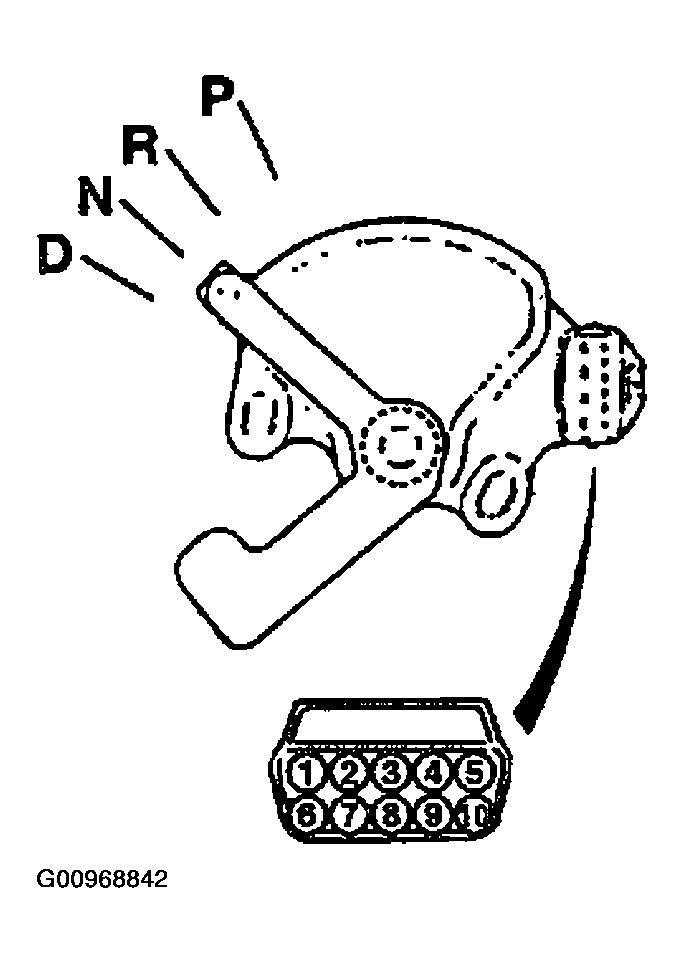

Fig 3: Identifying Transaxle Range Switch Positions & Connector Terminals
G00968842Courtesy of HYUNDAI MOTOR CO.
