Inspection Chart For Diagnosis Codes

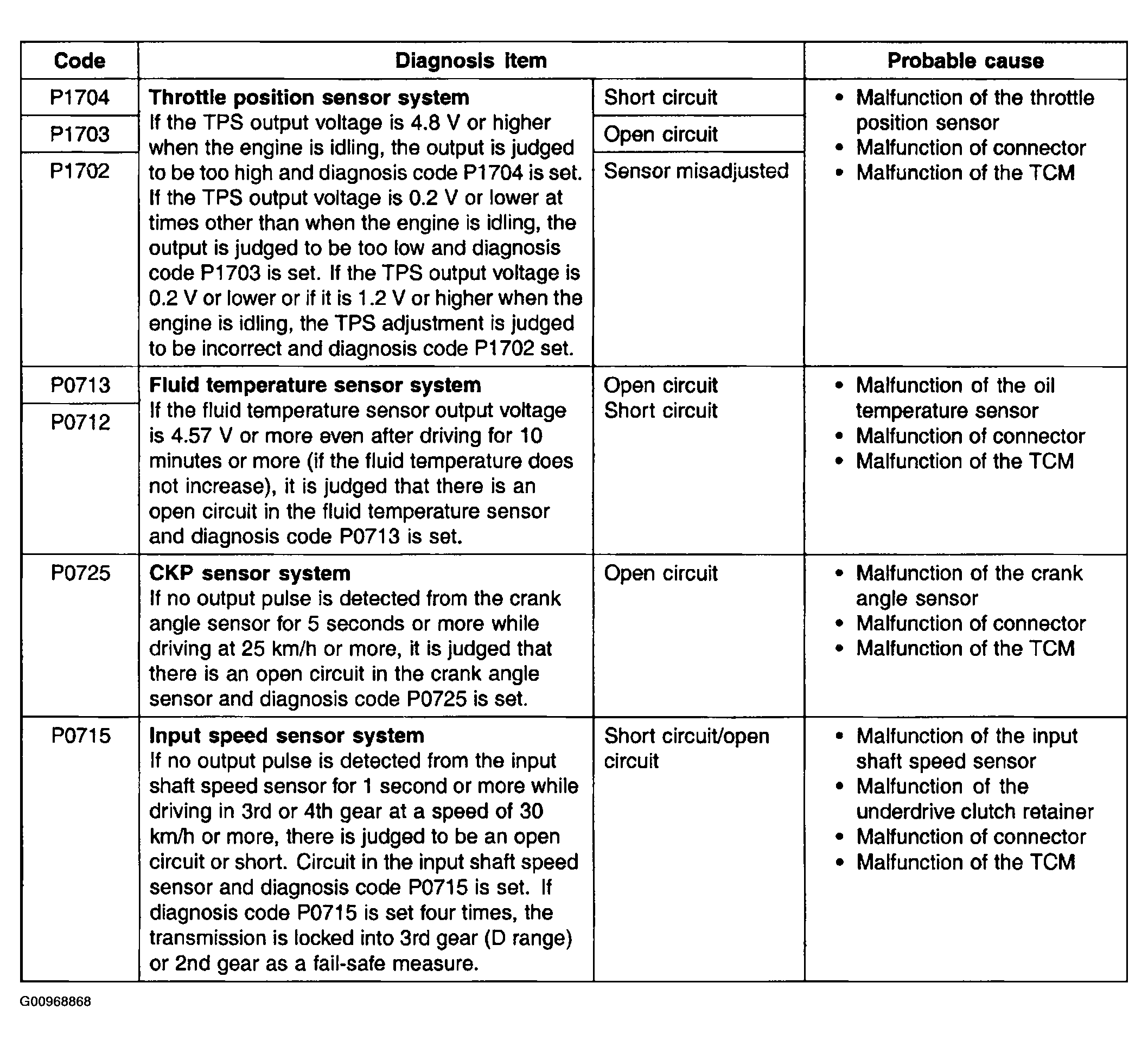

Fig 1: Inspection Chart For DTC P1704, P1703, P1702, P0713, P0712, P0725 & P0715
Courtesy of HYUNDAI MOTOR CO.

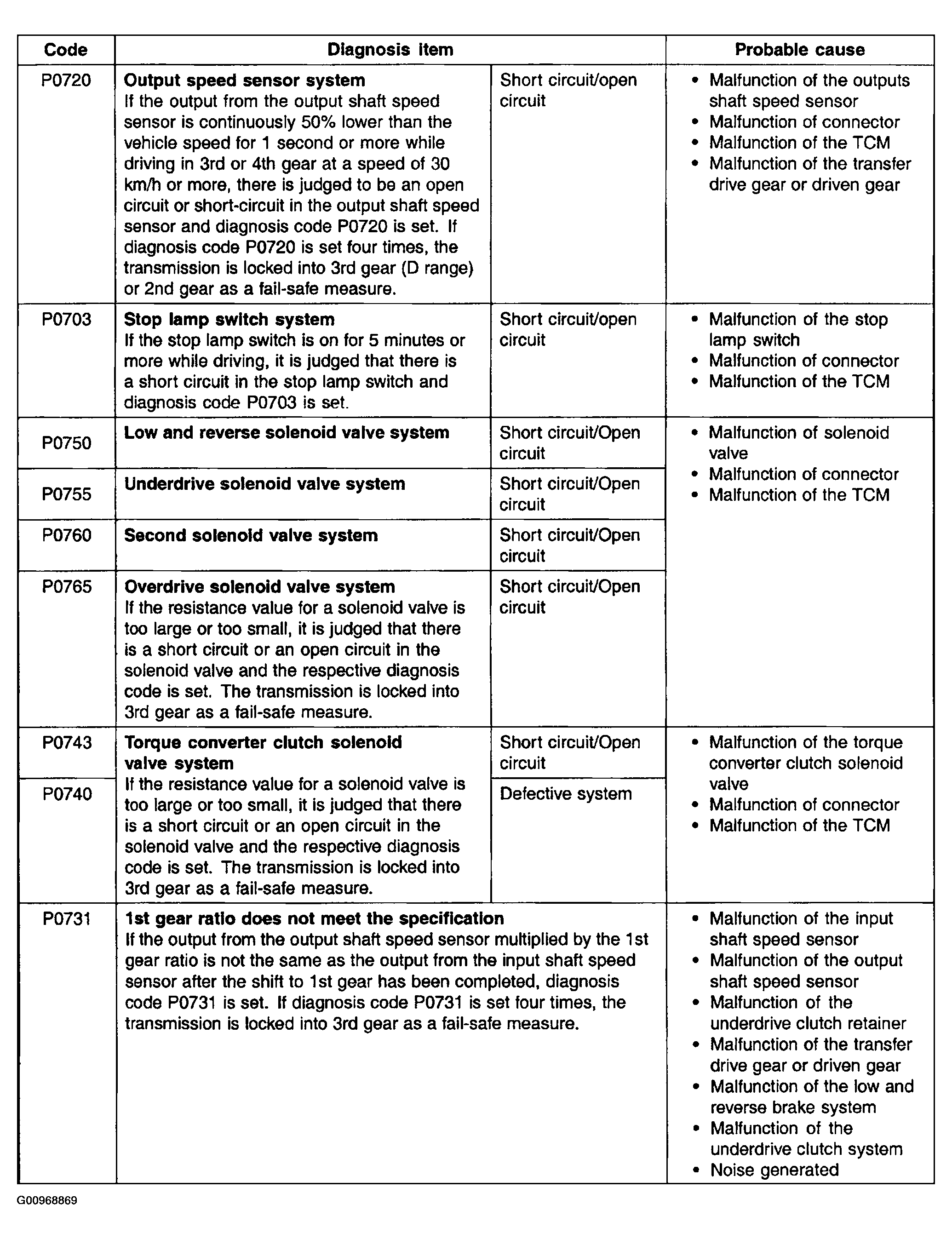

Fig 2: Inspection Chart For DTC P0720, P0703, P0750, P0755, P0760, P0765, P0743, P0740 & P0731
Courtesy of HYUNDAI MOTOR CO.

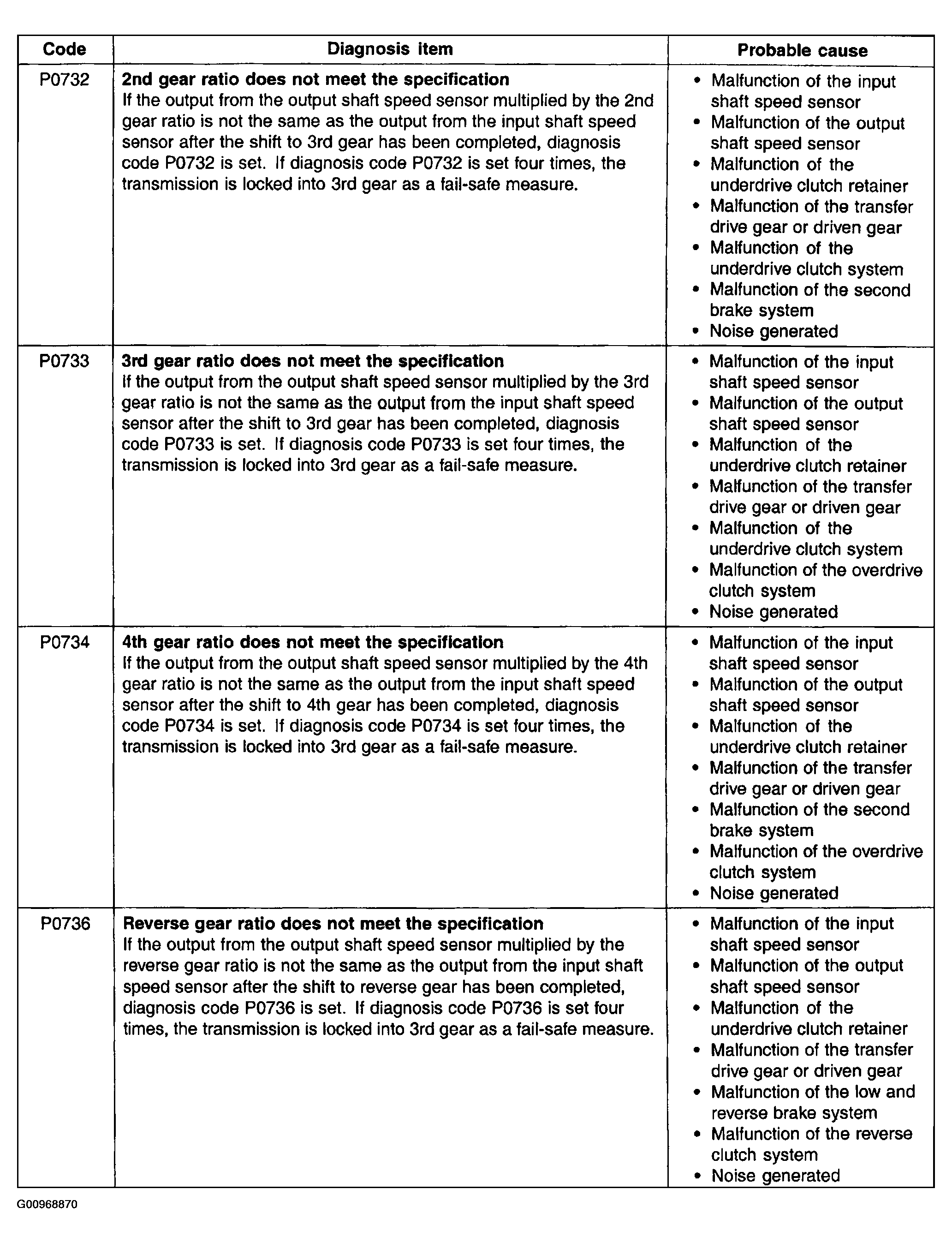

Fig 3: Inspection Chart For DTC P0732, P0733, P0734 & P0736
Courtesy of HYUNDAI MOTOR CO.

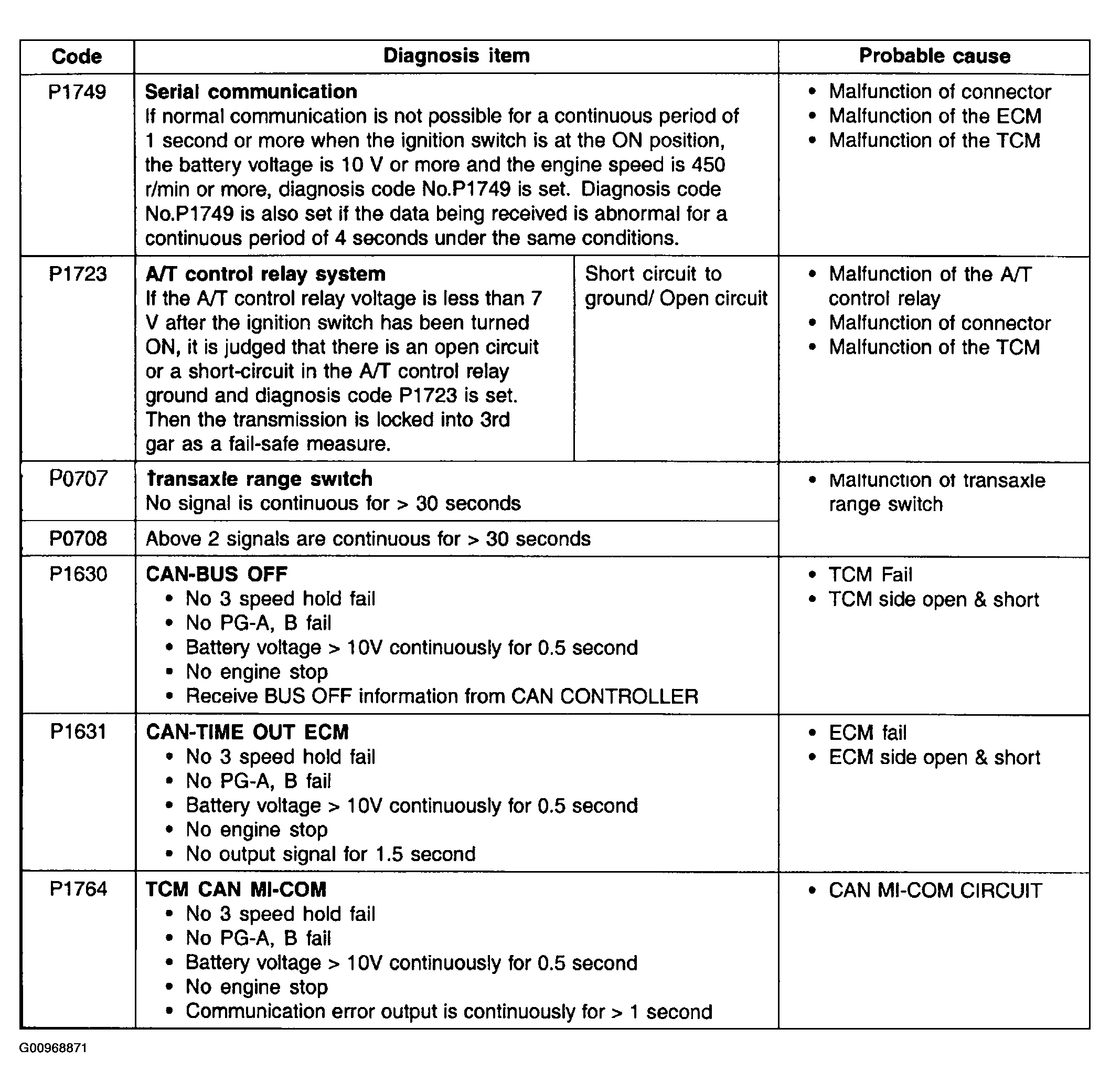

Fig 4: Inspection Chart For DTC P1749, P1723, P0707, P0708, P1630, P1631 & P1764
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
