DTC P0725: Crankshaft Position Sensor System

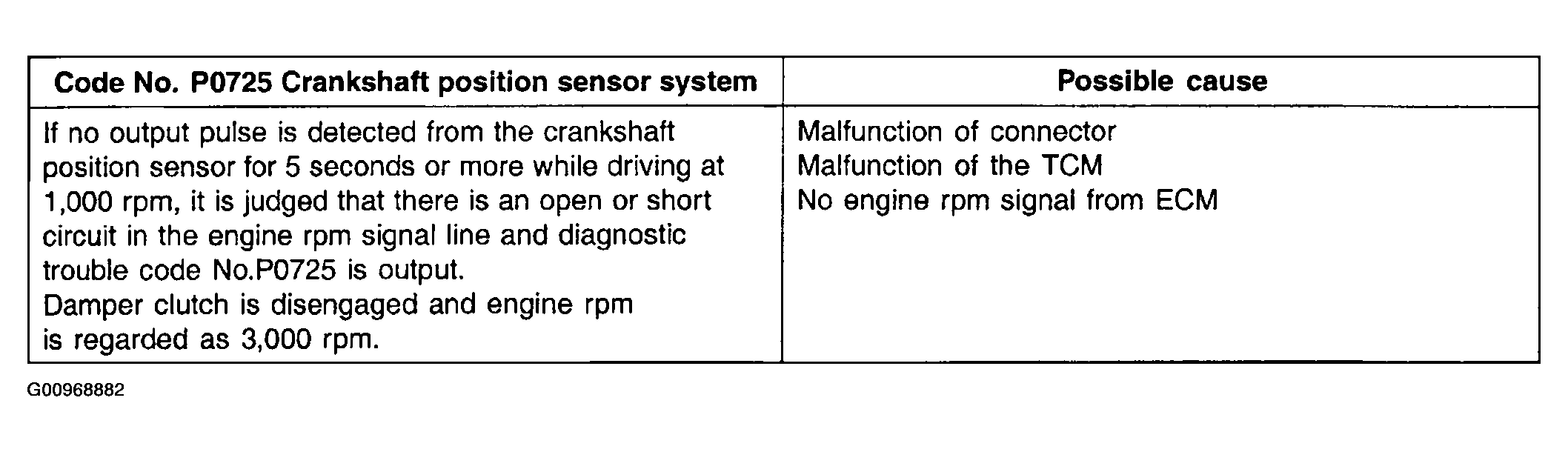

Fig 1: DTC P0725 Detecting Conditions & Probable Causes
G00968882Courtesy of HYUNDAI MOTOR CO.

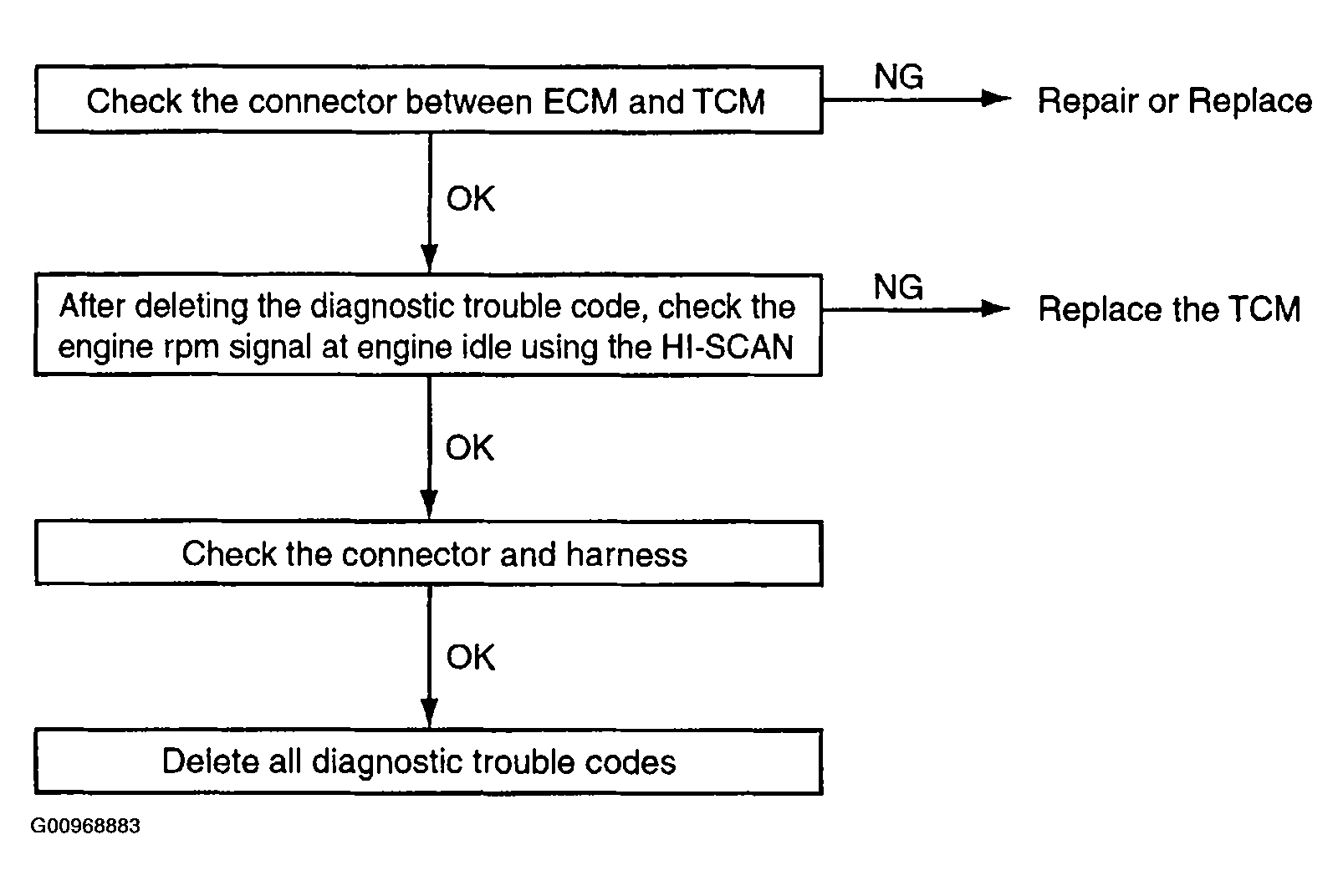

Fig 2: DTC P0725 Diagnostic Flow Chart
G00968883Courtesy of HYUNDAI MOTOR CO.
