Inspection Procedure 15

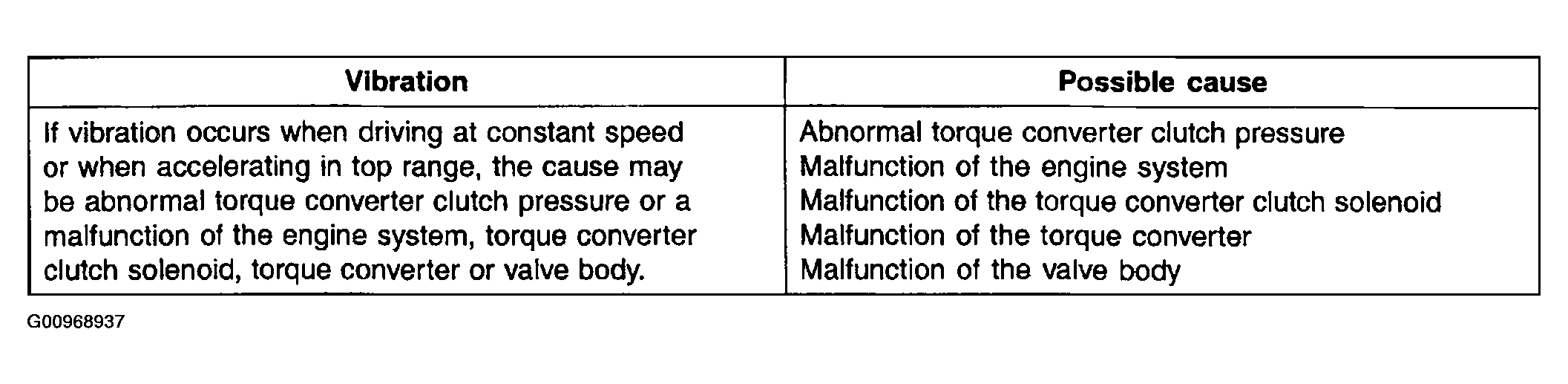

Fig 1: Vibration Possible Causes Table
G00968937Courtesy of HYUNDAI MOTOR CO.

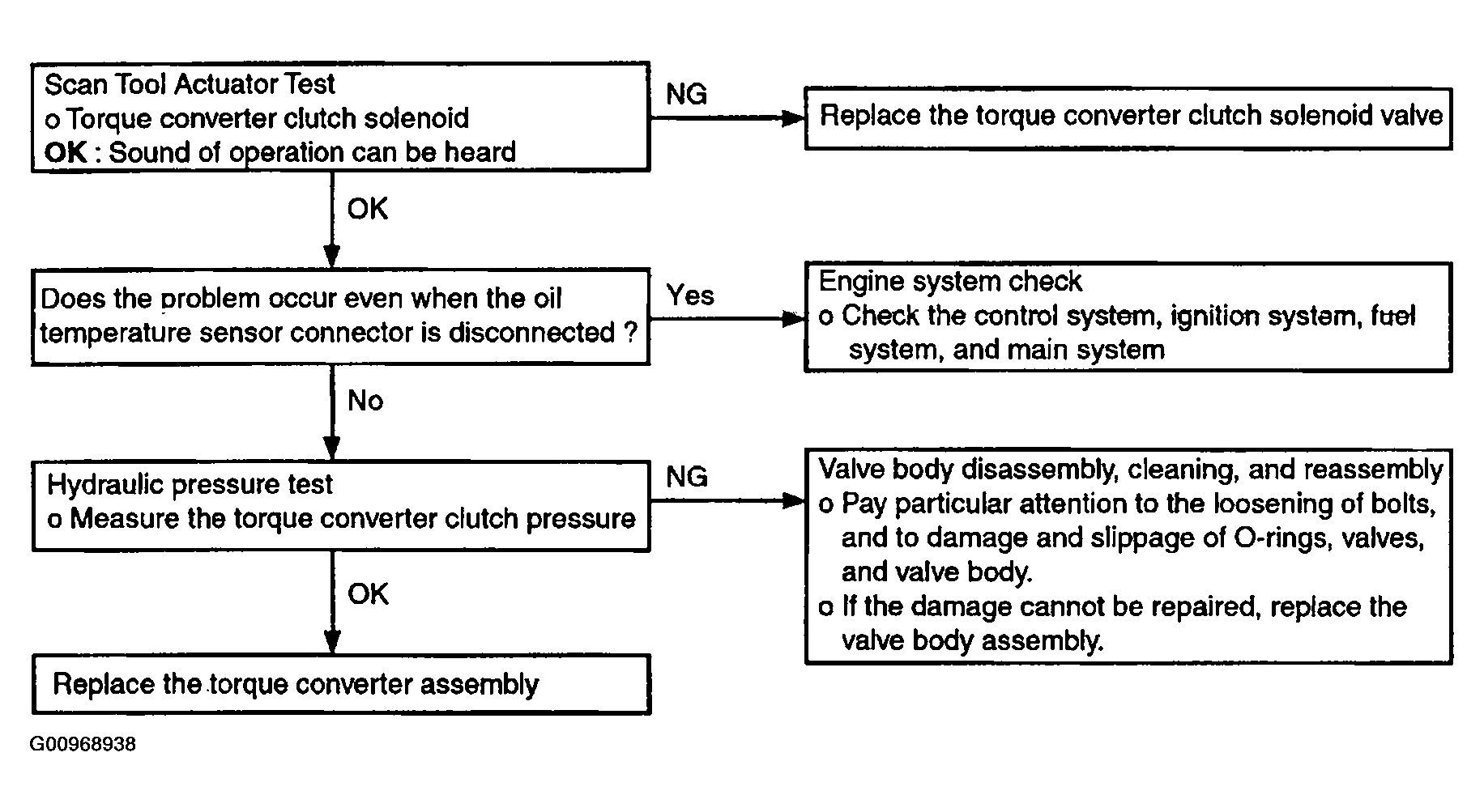

Fig 2: Vibration Diagnostic Flow Chart
G00968938Courtesy of HYUNDAI MOTOR CO.
