Inspection Procedure 3

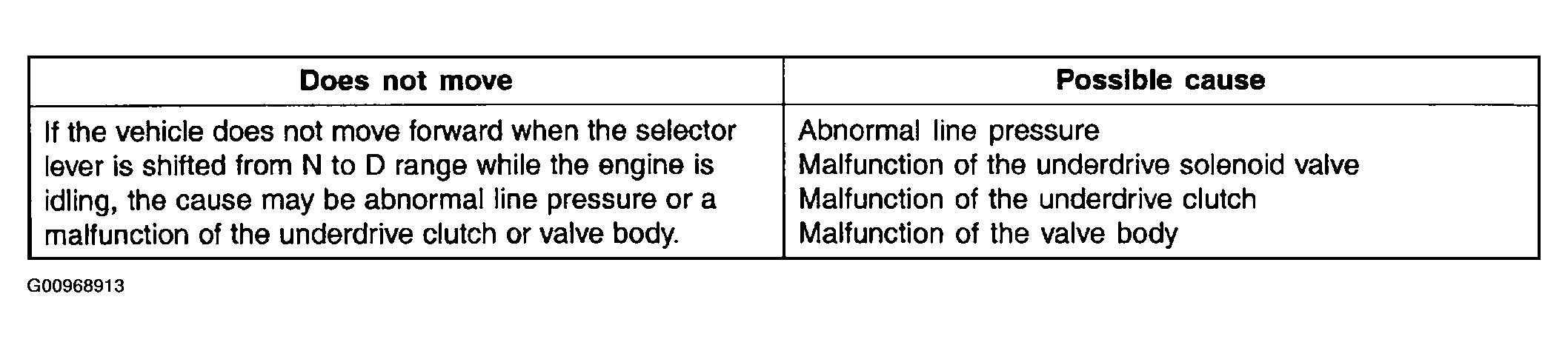

Fig 1: Vehicle Does Not Move Forward Possible Causes Table
G00968913Courtesy of HYUNDAI MOTOR CO.

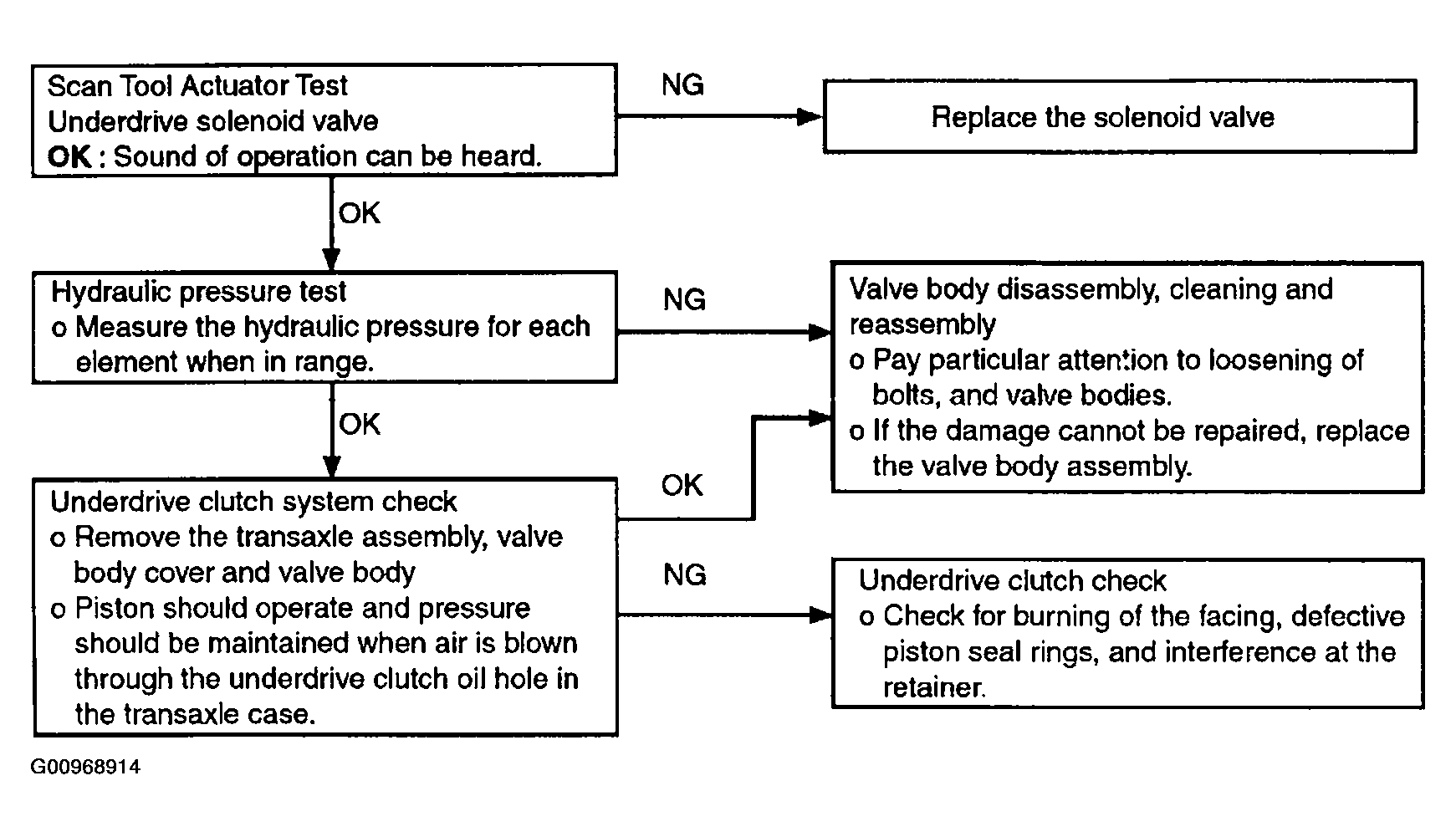

Fig 2: Vehicle Does Not Move Forward Diagnostic Flow Chart
G00968914Courtesy of HYUNDAI MOTOR CO.
