Automatic Transaxle System: General: Specifications

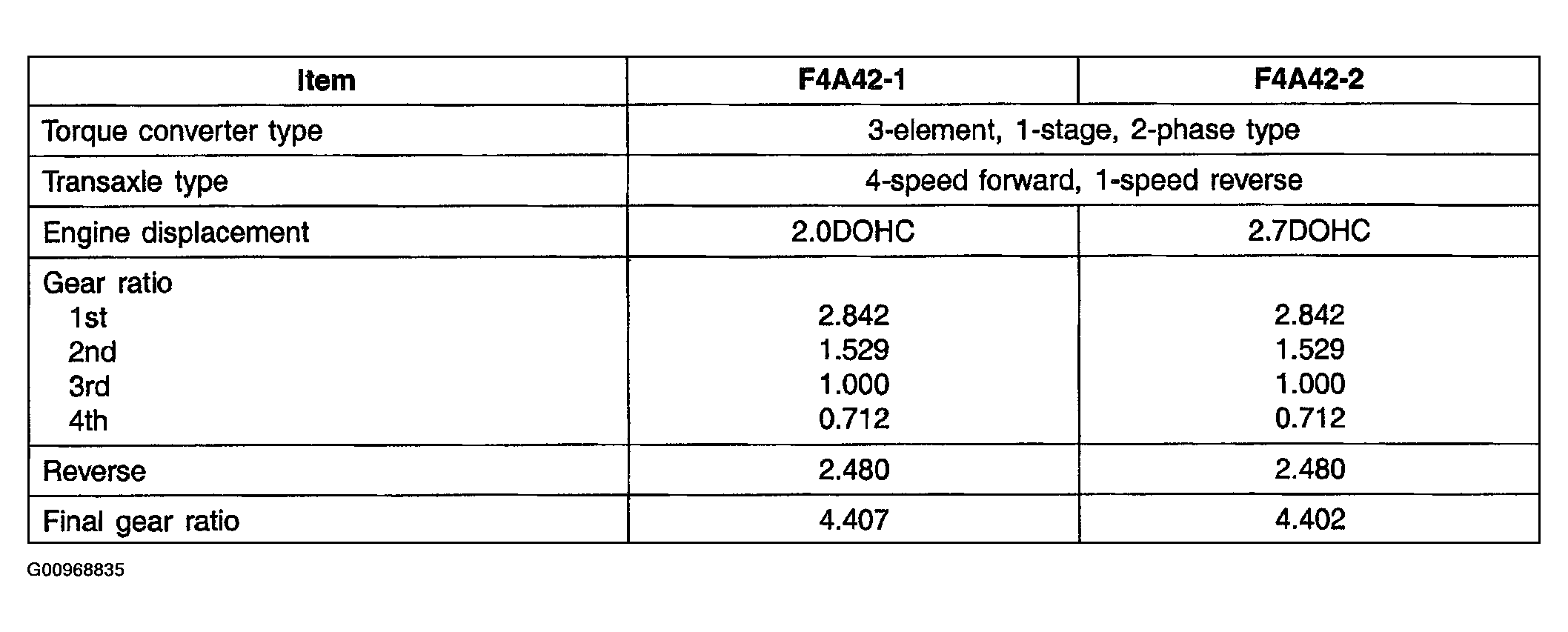

Fig 1: General Automatic Transaxle Specifications

G00968835

Courtesy of HYUNDAI MOTOR CO.
