IMS Control Switch

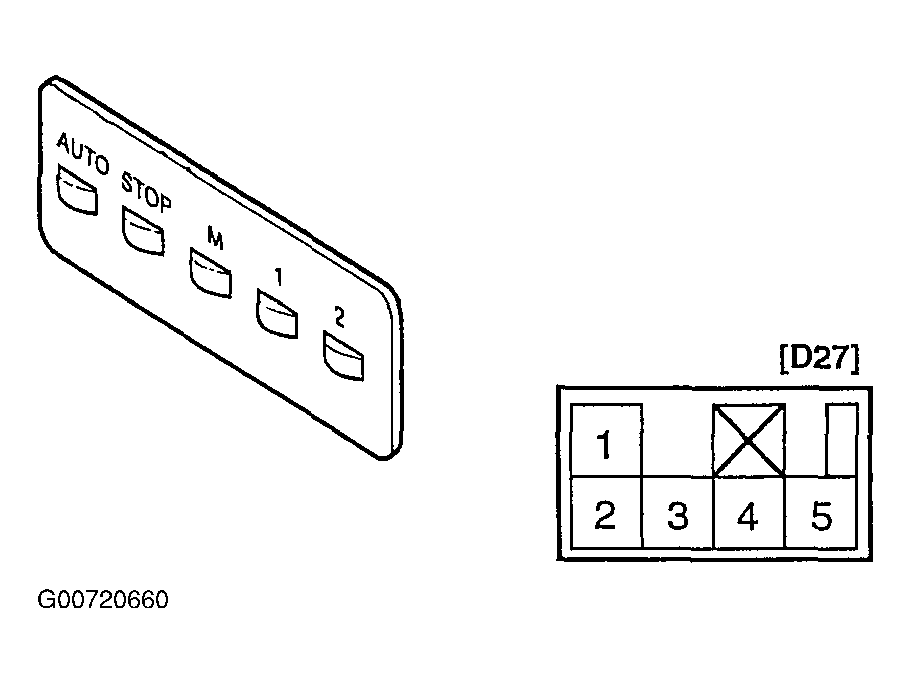

Fig 1: Identifying IMS Control Switch & Connector Terminals
G00720660Courtesy of HYUNDAI MOTOR CO.

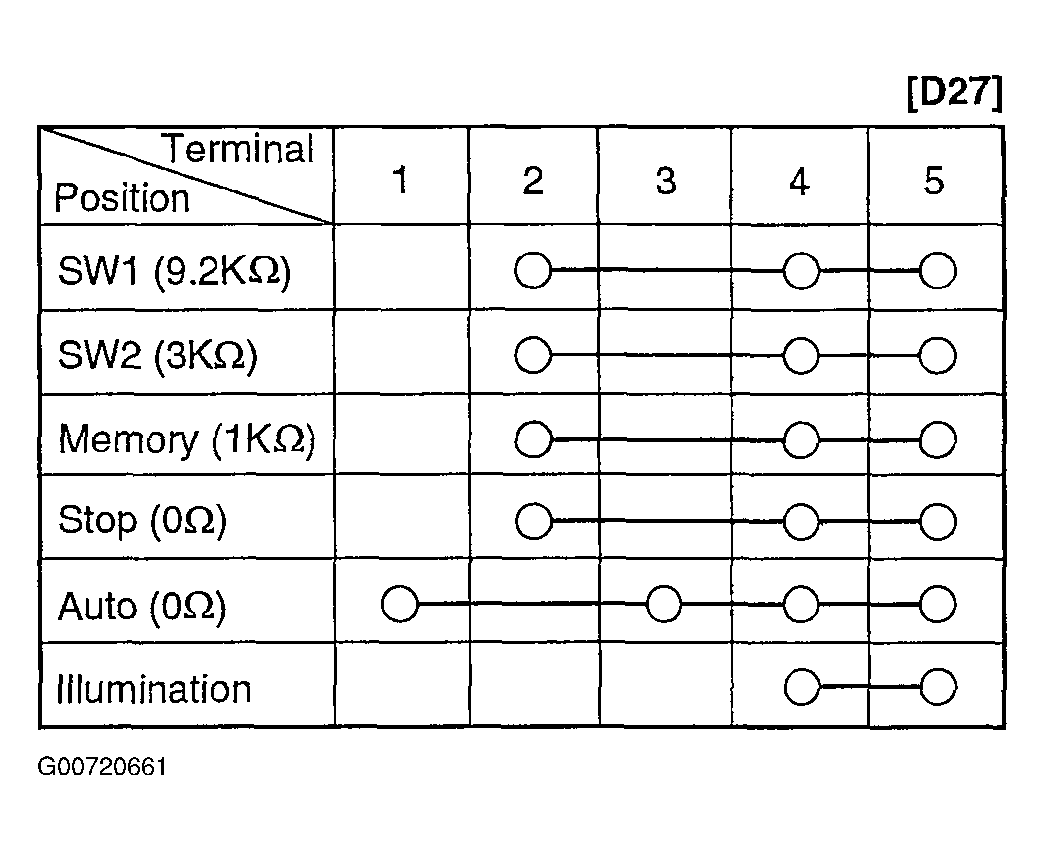

Fig 2: IMS Control Switch Terminal Resistance Specifications
G00720661Courtesy of HYUNDAI MOTOR CO.
