IMS Function

Memory function Prohibition condition of memory
1. After 5 sec when memory switch ON
2. Seat manual switch ON
3. Ignition switch OFF
4. Stop switch ON
5. Memory finished

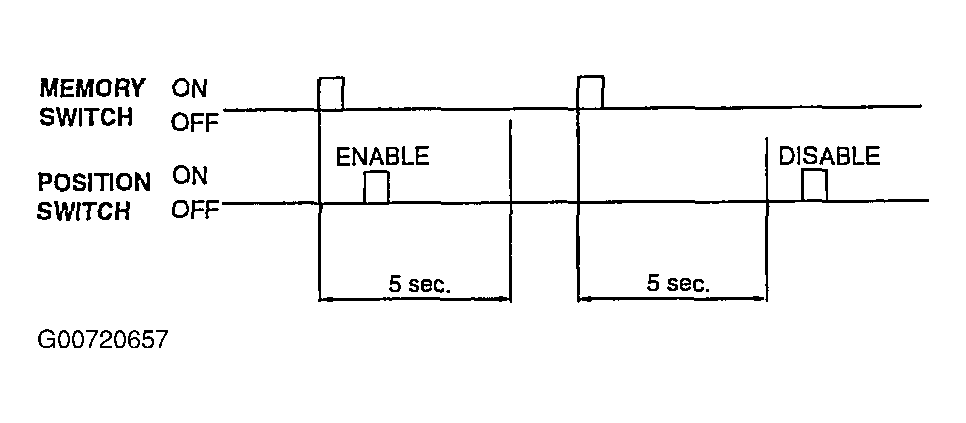

  Fig 1: Prohibition Timing Chart
  Courtesy of HYUNDAI MOTOR CO.
Regeneration function
Prohibition condition of regeneration
1. Ignition switch OFF
2. Parking brake switch OFF and shift lever positioned except "P" position (A/T)
3. Parking brake switch OFF (M/T)
4. Vehicle speed is over 3 km/h
5. Stop switch ON
6. During the manual switch operation

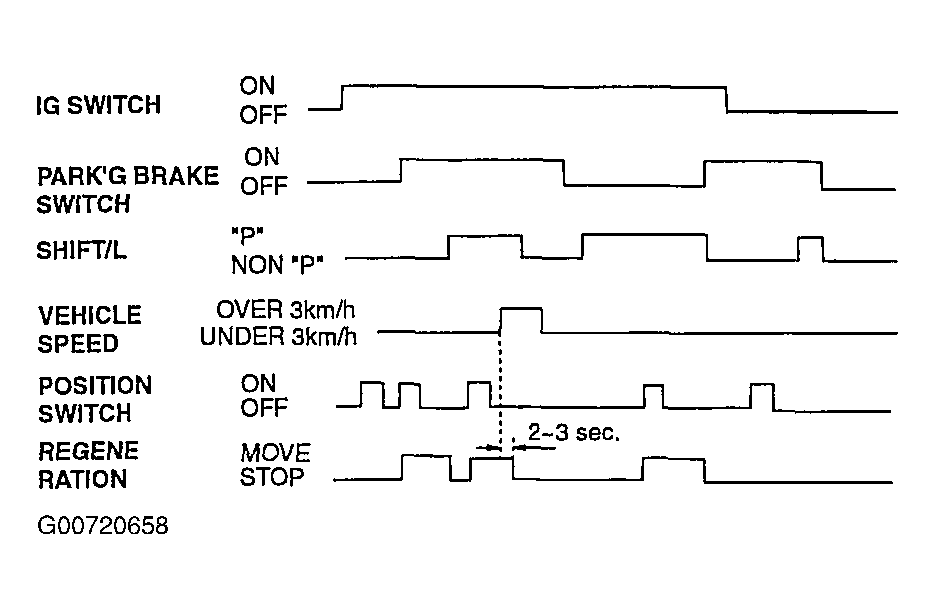

Fig 2: Regeneration Timing Chart
Courtesy of HYUNDAI MOTOR CO.
ON/OFF interlock function (Seat)
Prohibition condition of interlock
1. Auto switch OFF
2. Parking brake is released (Switch OFF)
3. Stop switch ON
4. During the manual switch operation

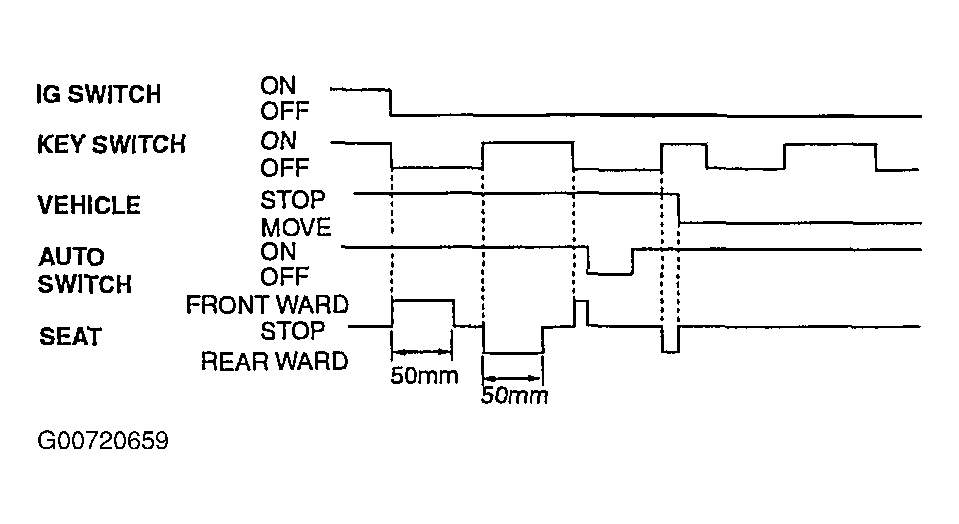

  Fig 3: Seat ON/OFF Interlock Function Chart
  Courtesy of HYUNDAI MOTOR CO.
Memory or regeneration by transmitter Prohibition condition memory or regeneration by transmitter
1. Parking brake is released (Switch OFF)
2. During the manual switch operation
