Diode Test

Using DVOM, check continuity of each diode, in both directions. See STEP 3 in illustration. See Fig 1 . Continuity should exist in only one direction. If continuity of any diode is not as specified, replace rectifier assembly.

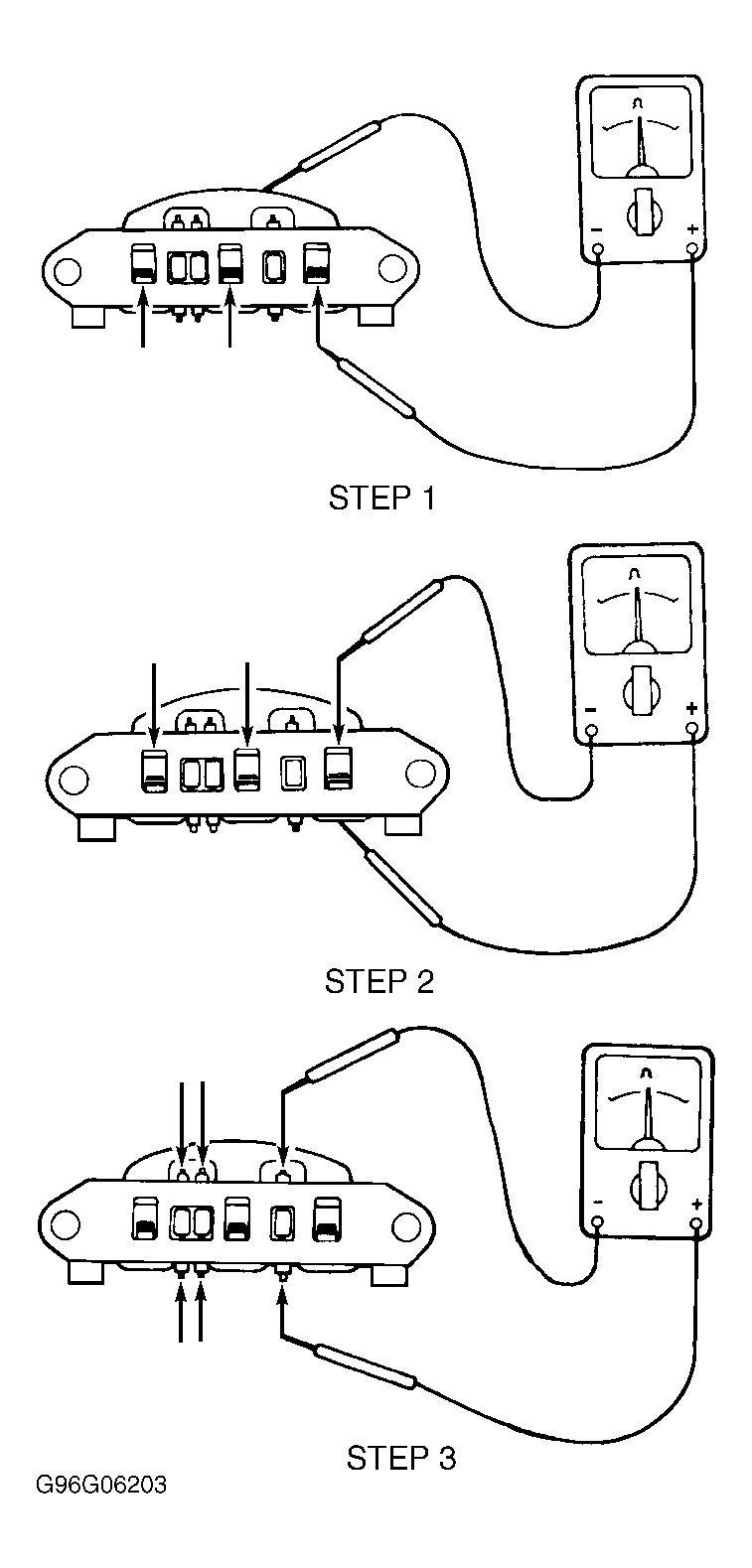

Fig 1: Testing Rectifier (Typical)

Courtesy of HYUNDAI MOTOR CO.
