Engine Control Relay Test (Accent, Elantra & Tiburon)

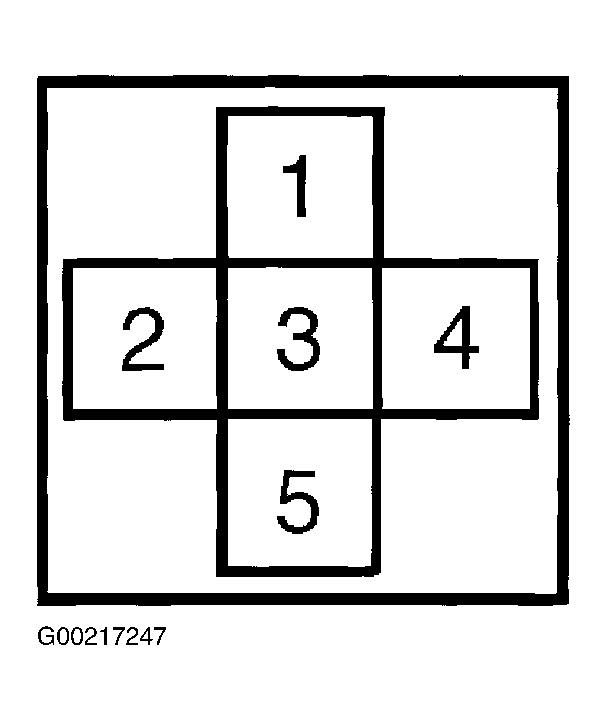

- Locate and remove engine control relay, see ENGINE CONTROL RELAY LOCATION table. Using fused jumper wire, apply battery voltage to relay terminal No. 2 (component side). See Fig 1. Using second fused jumper wire, ground relay terminal No. 4 (component side). Go to next step.
- With relay energized, check for continuity between relay terminals No. 5 and 1 (component side). Continuity should be present until voltage is disconnected. If continuity is not as specified, replace engine control relay.
ENGINE CONTROL RELAY LOCATION
| Application | Engine Control Relay Location |
|---|---|
| Accent | Under Left Side Of Dash, Near Fuse Box |
| Elantra, Santa Fe & Tiburon | Engine Compartment Fuse/Relay Box |
| Sonata & XG350 | Right Side Of Instrument Panel In Center Support, Under Radio |
