Automatic Transaxle: Components

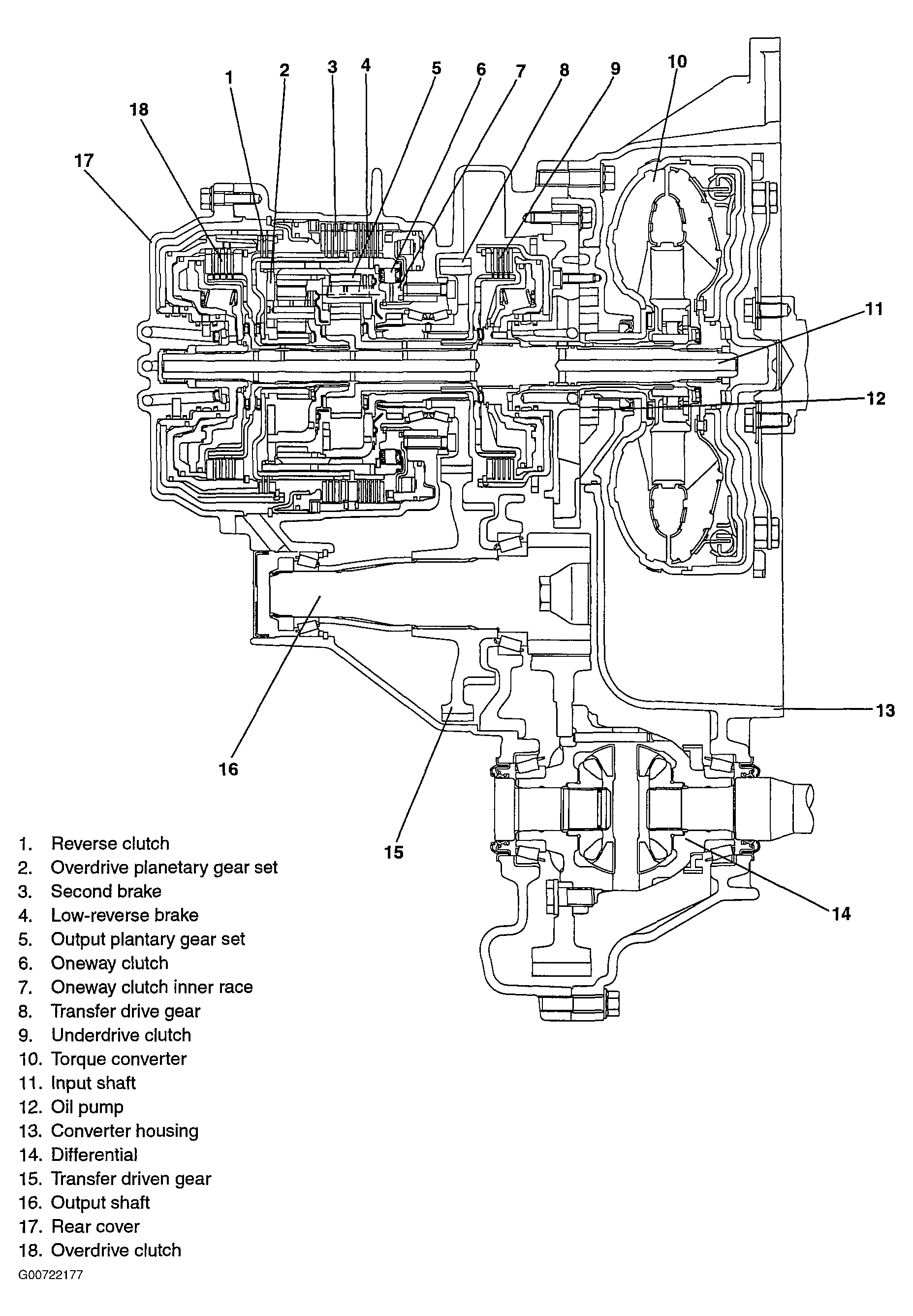

Fig 1: Identifying Automatic Transaxle Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
