Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Shift & Key Lock Control System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

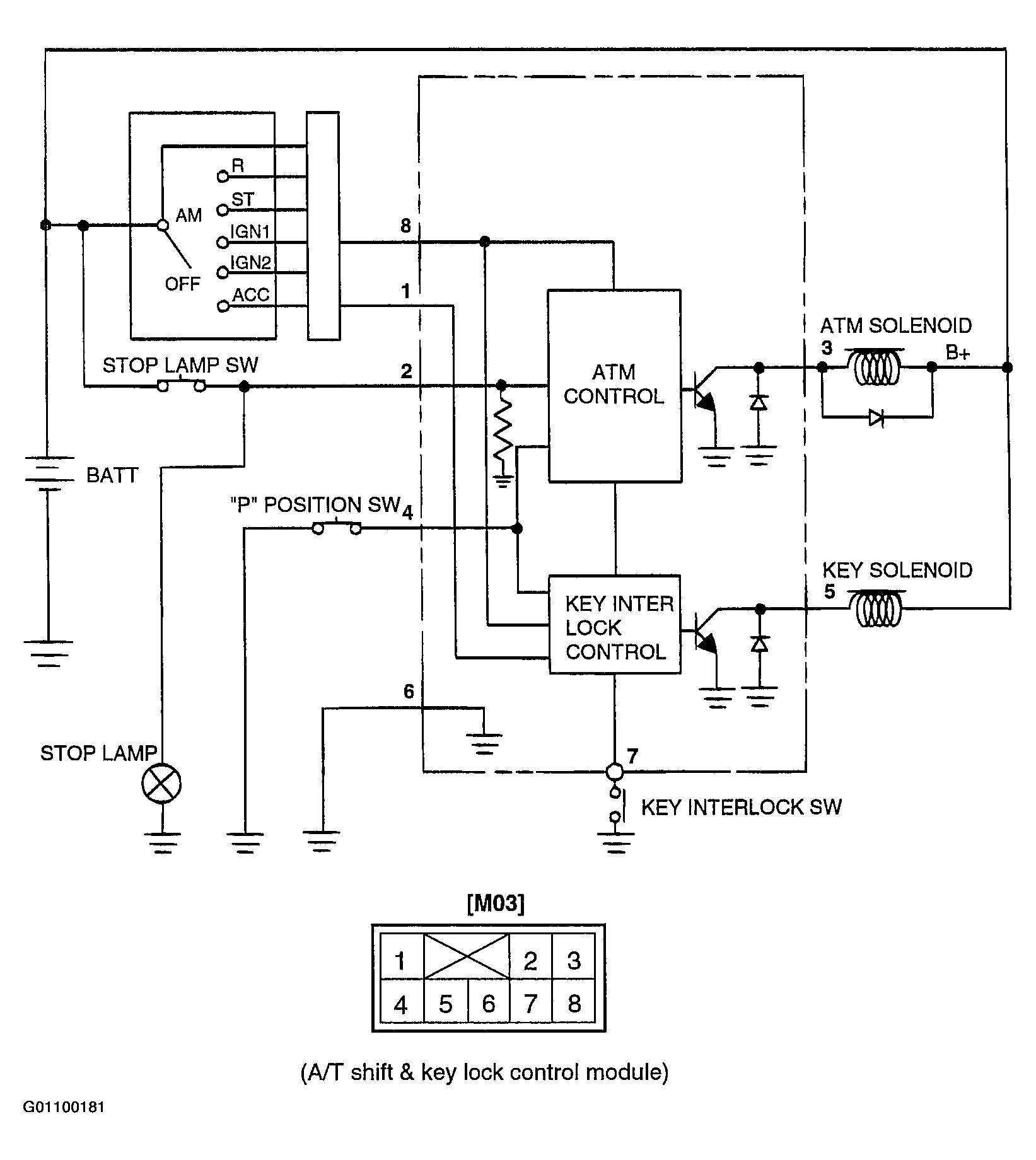

Fig 1: Shift & Key Lock Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
