Key Lock System

Check that the ignition key cannot be turned to "LOCK (OFF)" position, when the position of the shift lever is not in "P" position.

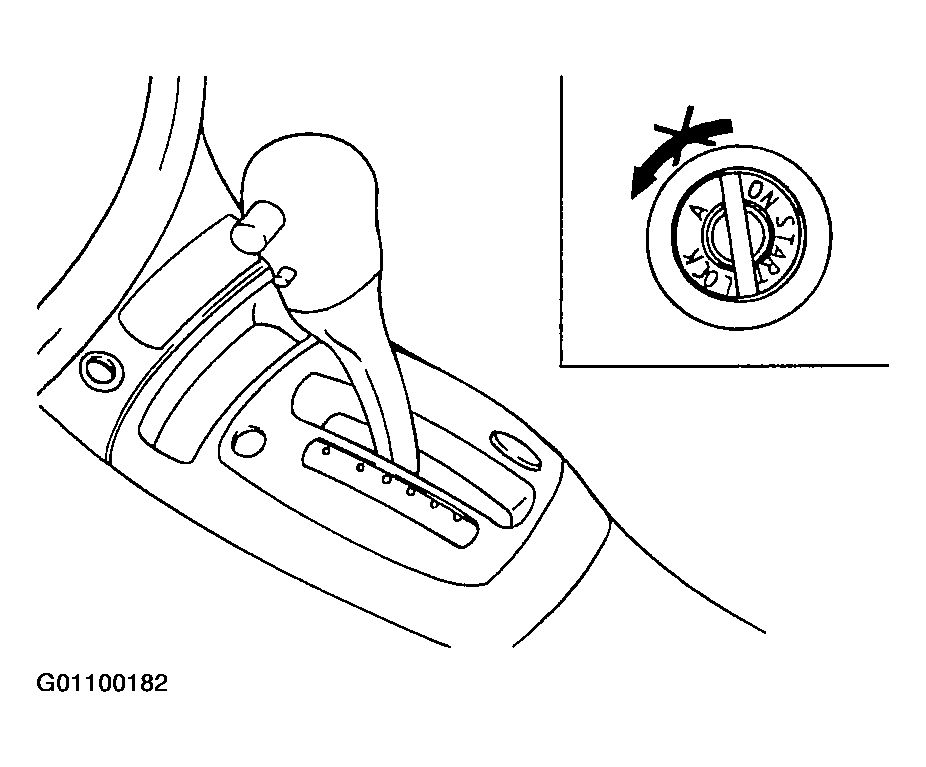

Fig 1: Checking Key Removal With Shifter In Any Gear Position
Courtesy of HYUNDAI MOTOR CO.
Check that the ignition key turns to the "LOCK (OFF)" position, when the shift lever is set to the "P" position.

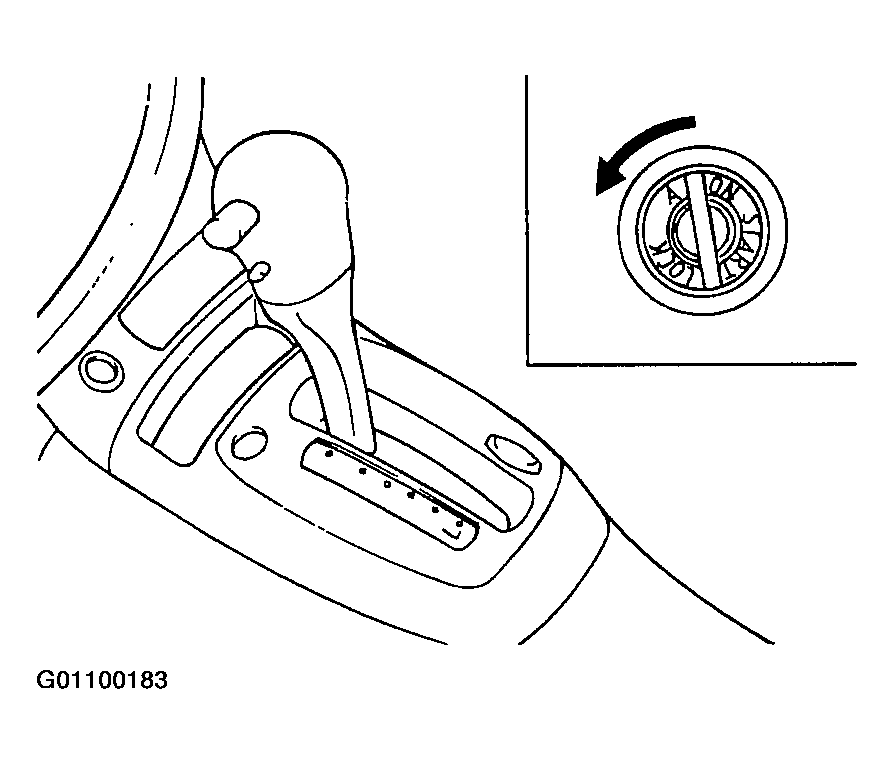

Fig 2: Checking Key Removal With Shifter In Park Position
Courtesy of HYUNDAI MOTOR CO.
