Component Locations

COMPONENT LOCATIONS

Component	Locaton
Battery	Left Front Of Engine Compartment. See Fig 1 .
Dash Fuse Box	Behind Left Kick Panel. Fig 2 .
Engine Compartment Fuse Box	Left Side Of Engine Comartment, In Front Of Strut Tower. See Fig 1 .
Fusible Links	In Engine Compartment Fuse Box.
Generator	Left Front Of Engine. Fig 3 .
Pre-Excitation Resistor	In Engine Compartment Fuse Box. See Fig 4 .

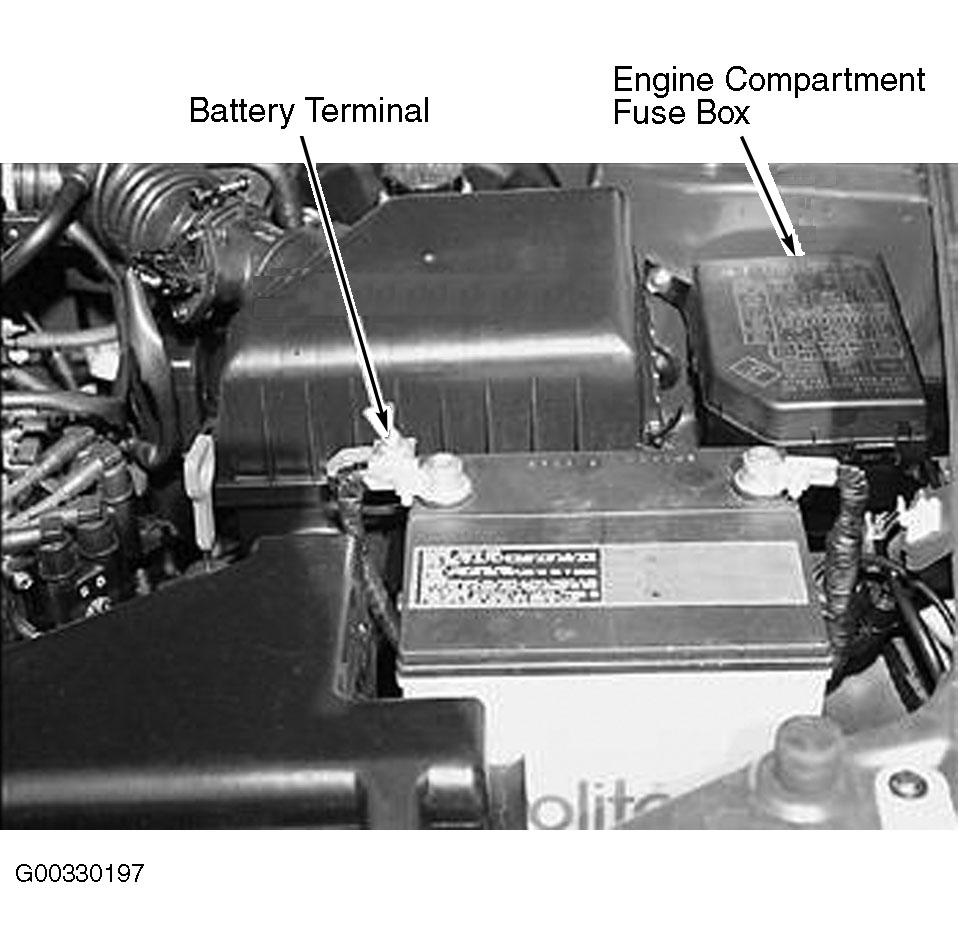

Fig 1: Locating Battery & Engine Compartment Fuse Box

Courtesy of JAGUAR CARS INC.

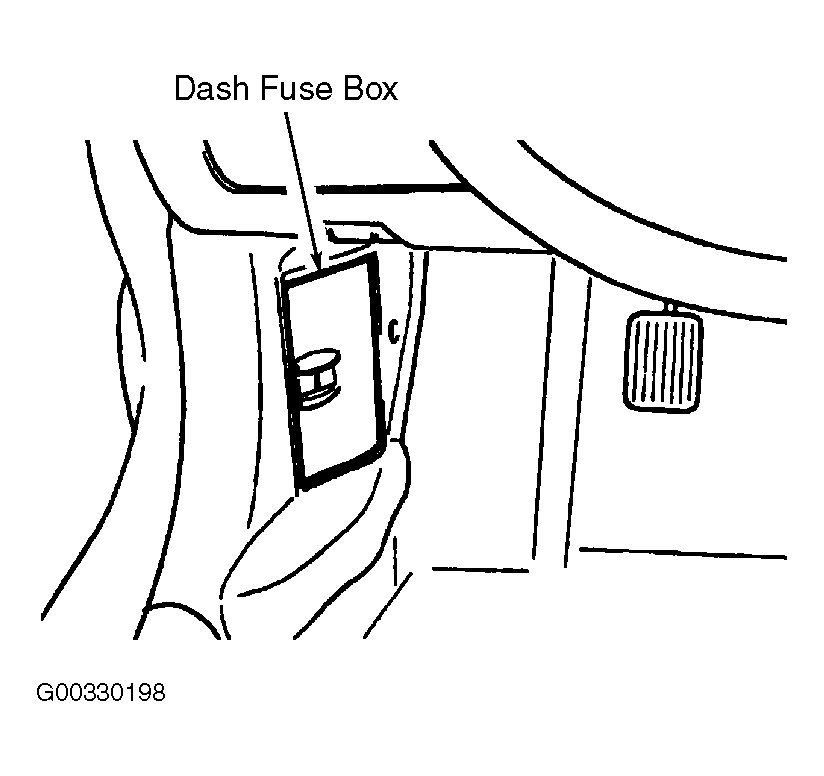

Fig 2: Locating Dash Fuse Box

Courtesy of HYUNDAI MOTOR CO.

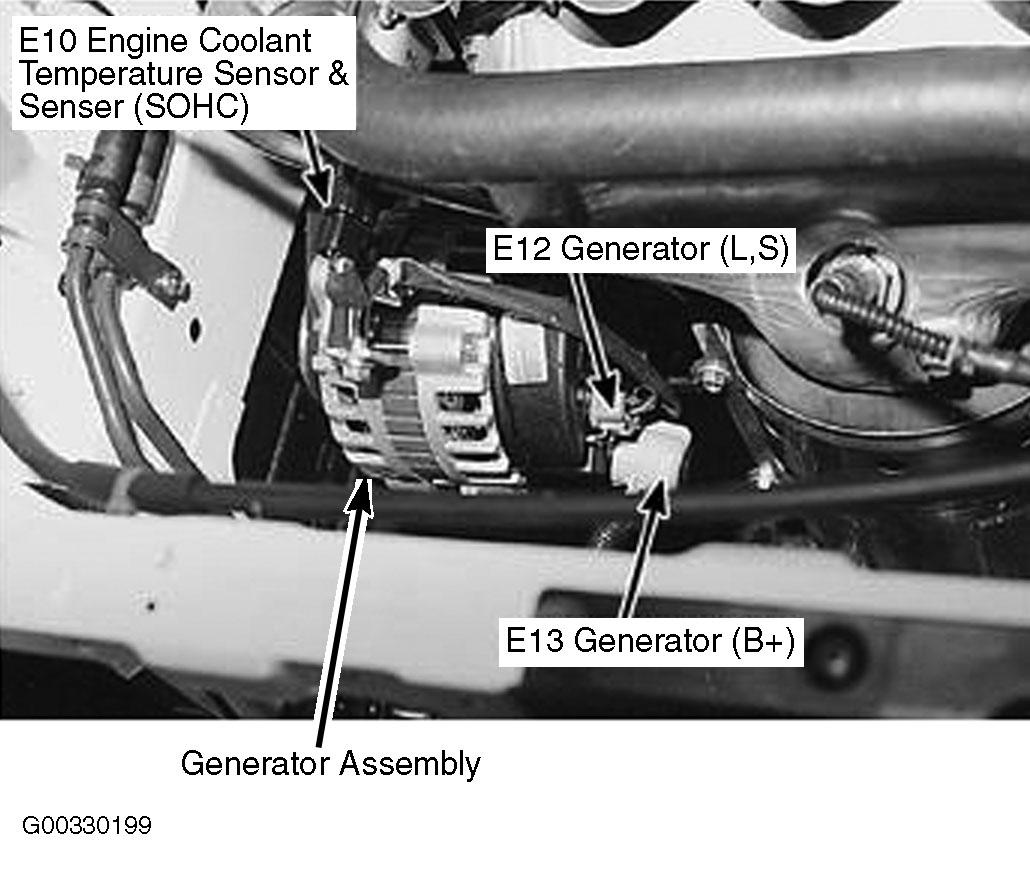

Fig 3: Locating Generator

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Engine Compartment Relay & Fuse Box

Courtesy of HYUNDAI MOTOR CO.
