Generators & Regulators: Overhaul: Disassembly

Using a screw driver, remove generator cover. See Fig 1 .
Remove the brush holder retaining bolts and remove brush holder assembly. See Fig 2 .
Remove slip ring guide. See Fig 3 .
Remove the nut, drive pulley and spacer. See Fig 4 .
Remove the 4 generator housing bolts. See Fig 5 .
Remove the front housing cover and rotor. See Fig 6 .

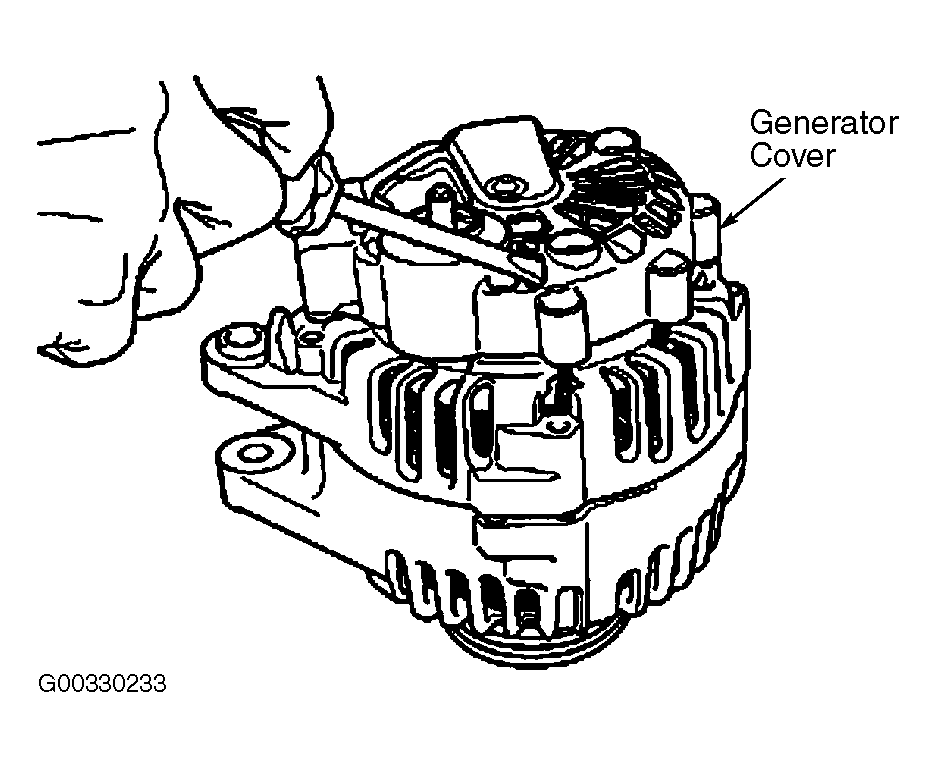

Fig 1: Removing & Installing Generator Cover

Courtesy of HYUNDAI MOTOR CO.

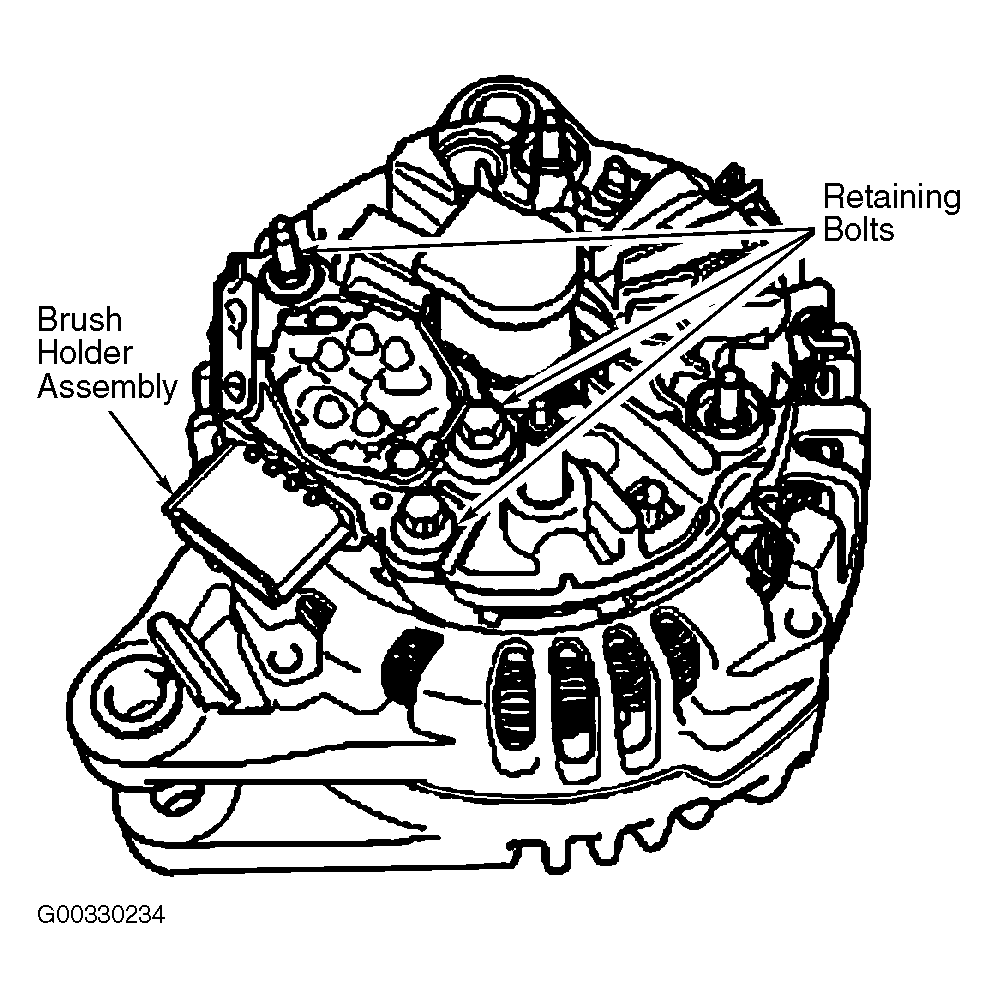

Fig 2: Removing & Installing Brush Holder Retaining Bolts

Courtesy of HYUNDAI MOTOR CO.

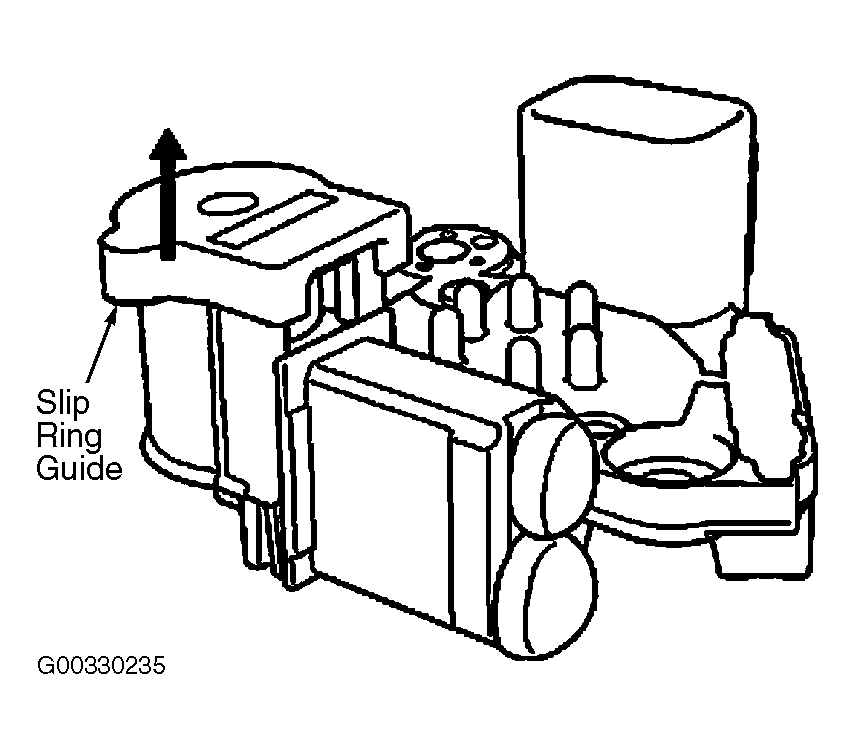

Fig 3: Removing & Installing Slip Ring Guide

Courtesy of HYUNDAI MOTOR CO.

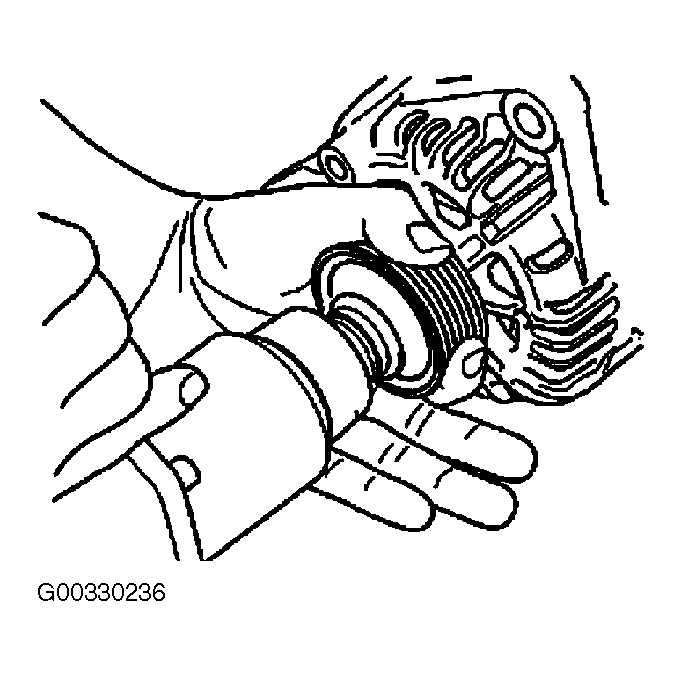

Fig 4: Removing Generator Drive Pulley

Courtesy of HYUNDAI MOTOR CO.

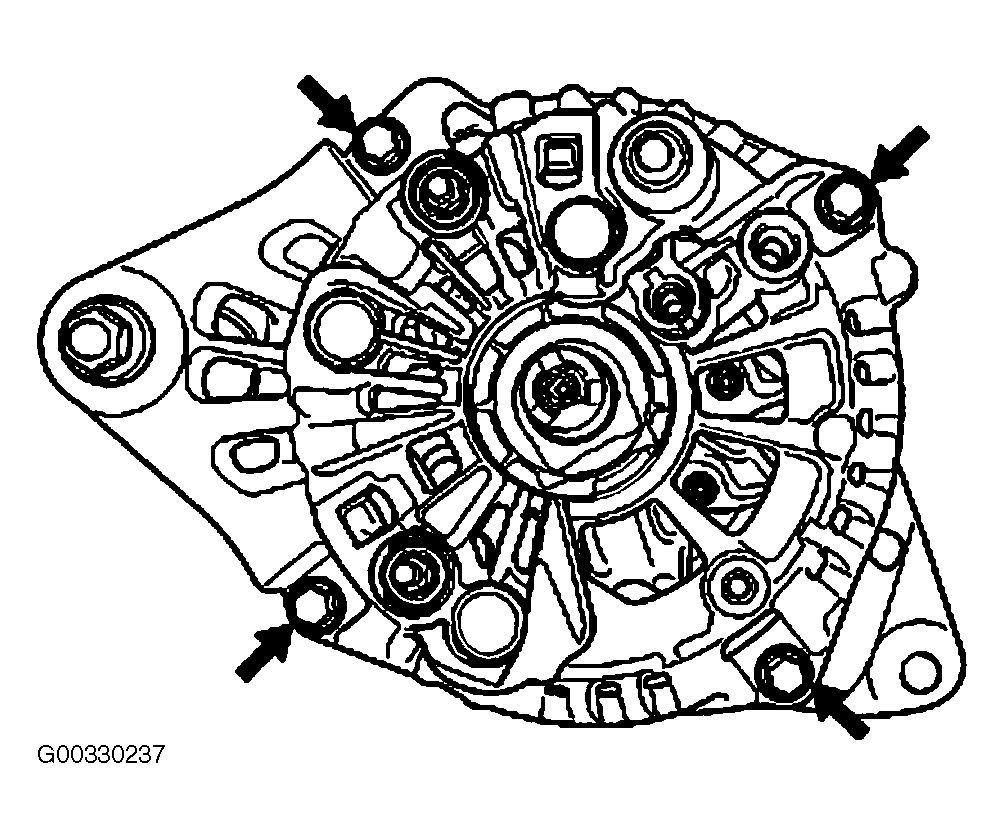

Fig 5: Removing & Installing Generator Housing Bolts

Courtesy of HYUNDAI MOTOR CO.

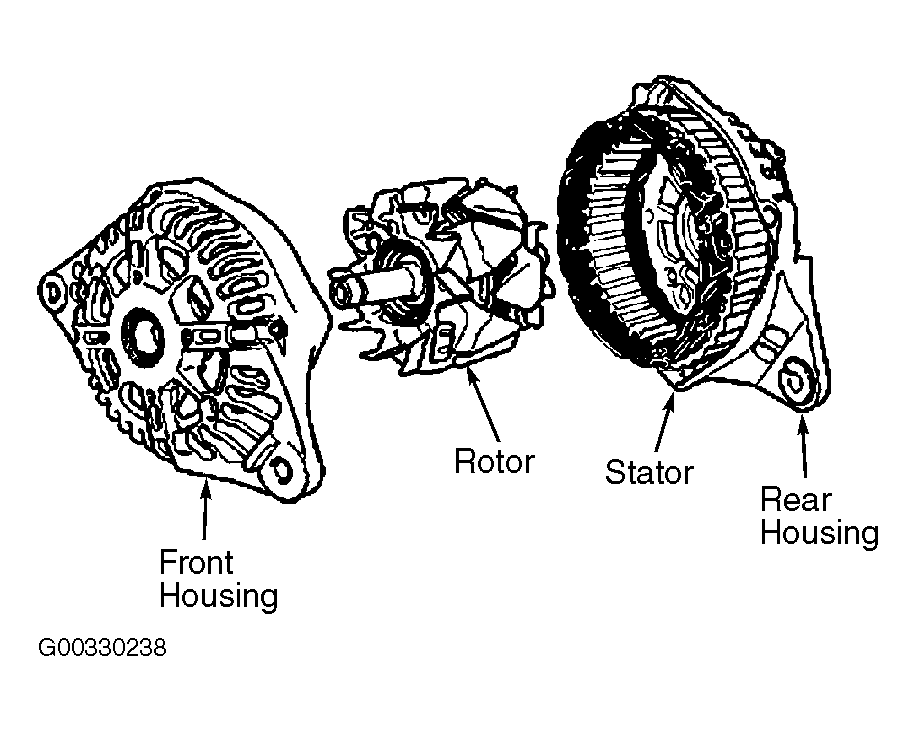

Fig 6: Removing Generator Front Housing & Rotor

Courtesy of HYUNDAI MOTOR CO.
