Armature Test: Inspection
- Check Armature Wear - Replace armature if there is any signs of wear or damage due to contact with permanent magnet.

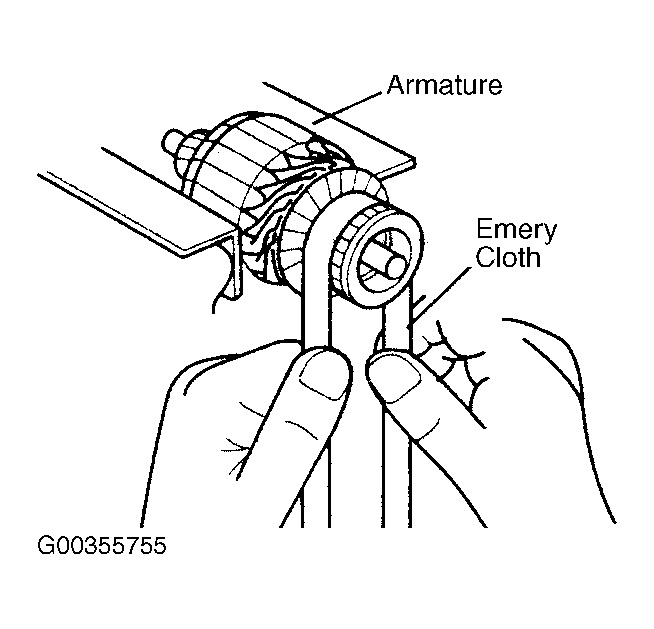

- Check Armature Commutator Surface - Resurface commutator surface, with emery cloth or lathe, if dirty or burnt. See Fig 1 . Ensure commutator is within specification. See CHECKING RUNOUT & DIAMETER .
