Fuel Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance: 15.9 +/- 0.35Ω [at 20°C (68°F)]

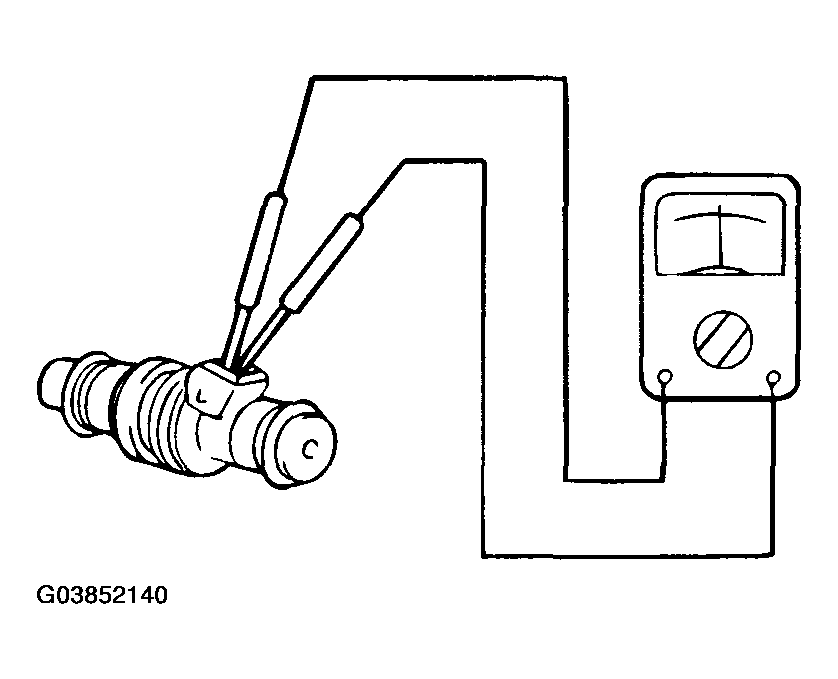

    Fig 1: Measuring Resistance Of Injectors Between Terminals Using An Ohmmeter
    G03852140Courtesy of HYUNDAI MOTOR CO.
  2. If the resistance is not within specifications, replace the injector.
