Fuel Injector: Installation

  1. Install a new grommet and O-ring to the injector.
  2. Apply a coating of solvent, spindle oil or gasoline to the O-ring of the injector.

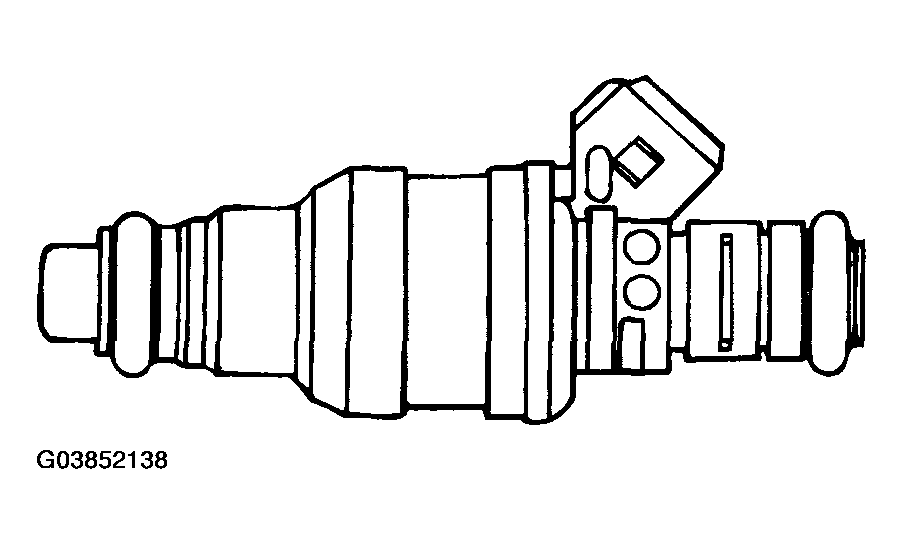

    Fig 1: Identifying Injector
    G03852138Courtesy of HYUNDAI MOTOR CO.
  3. While turning the injector to the left and right, fit it on to the delivery pipe. Break
  4. Be sure the injector turns smoothly.
    NOTE: If it does turn smoothly, the O-ring may be jammed: Remove the injector and re-insert it into the delivery pipe and recheck.

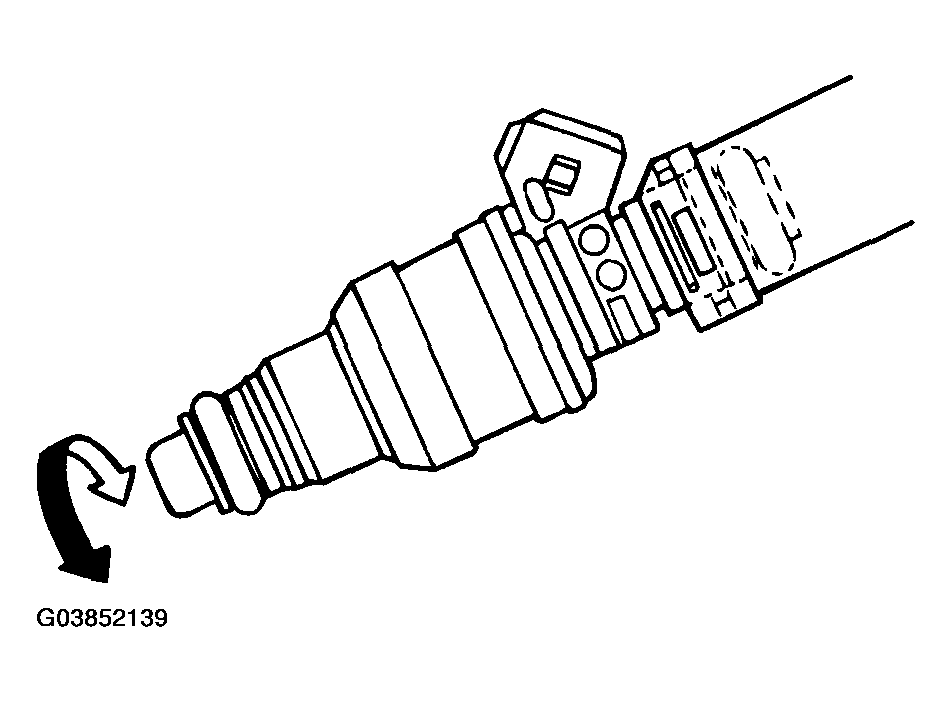

    Fig 2: Turning Injector To Fit It On To The Delivery Pipe
    G03852139Courtesy of HYUNDAI MOTOR CO.
