Fuel Tank: Installation

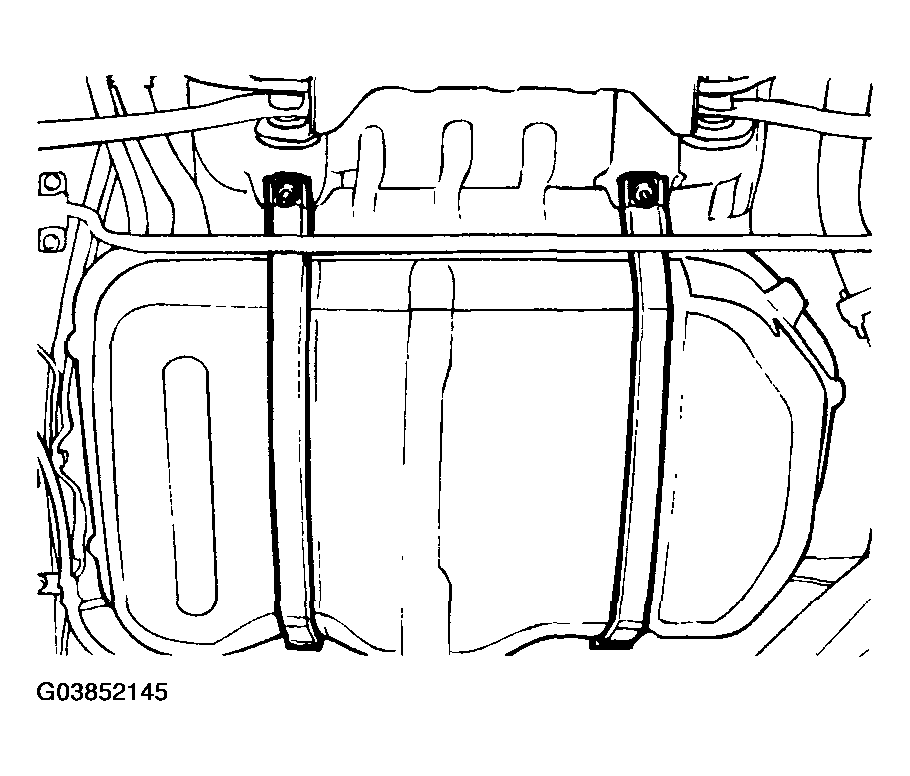

- Confirm that the pad is fully bonded to the fuel tank, and install the fuel tank by tightening the self-locking nuts.
Courtesy of HYUNDAI MOTOR CO.

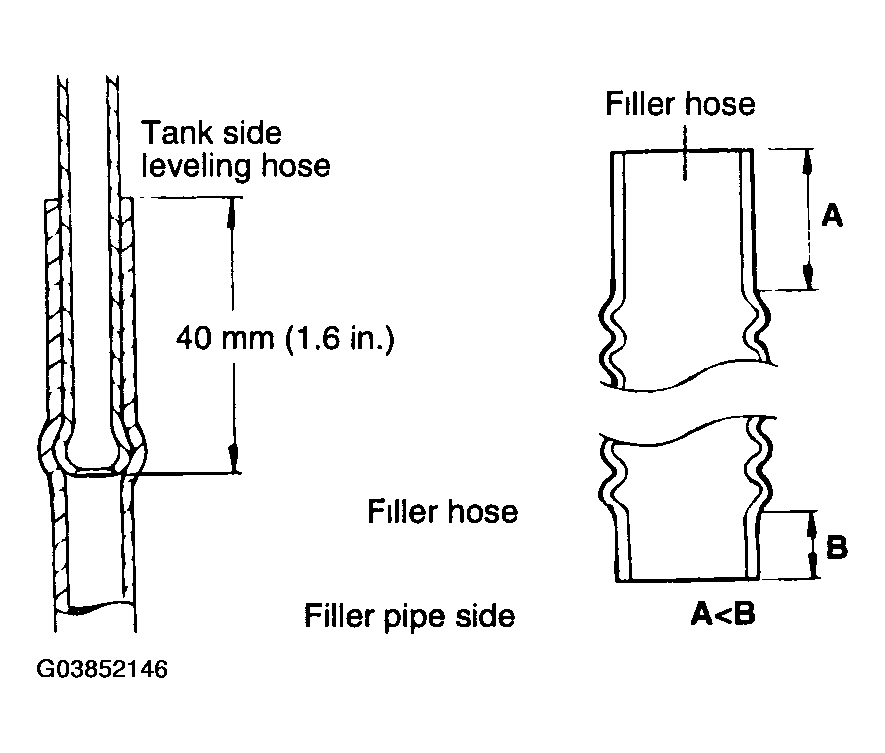

- Connect the leveling hose to the tank and at the filler neck by approximately 40mm (1.6 in.).
- When connecting the filler hose, the end with the shorter straight pipe should be connected to the tank side.
Courtesy of HYUNDAI MOTOR CO.
- Connect the vapor hose. When attaching the vapor hose to the line, be sure that the hose is attached as shown in the illustration.
- Connect the high pressure hose to the fuel pump. Be careful that the fuel hose does not twist.

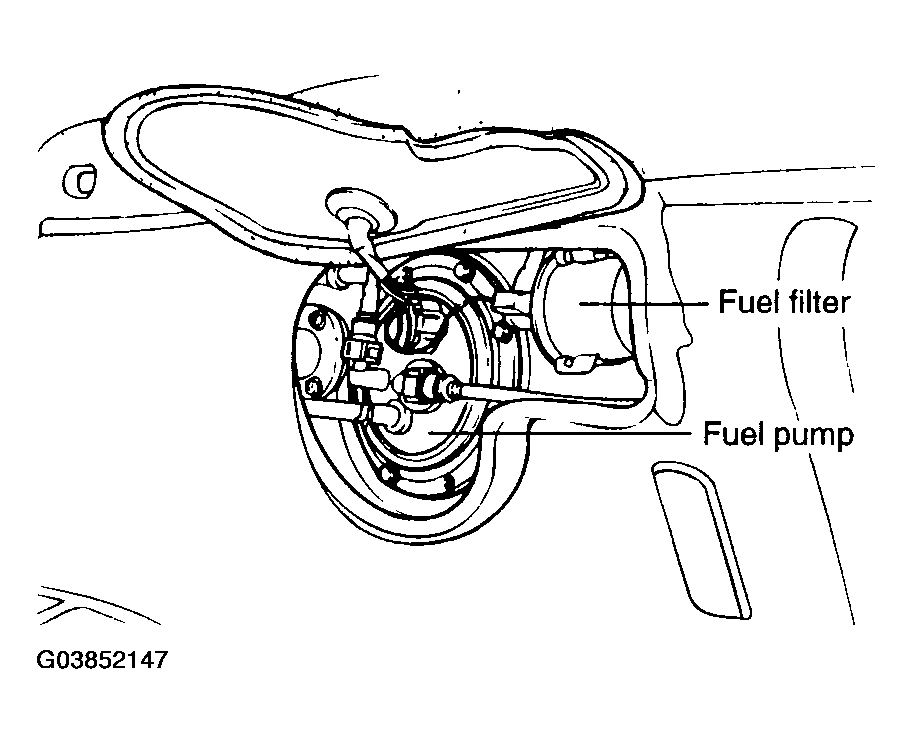

- Connect the electrical fuel pump connector.
Courtesy of HYUNDAI MOTOR CO.
