Throttle Body: Components

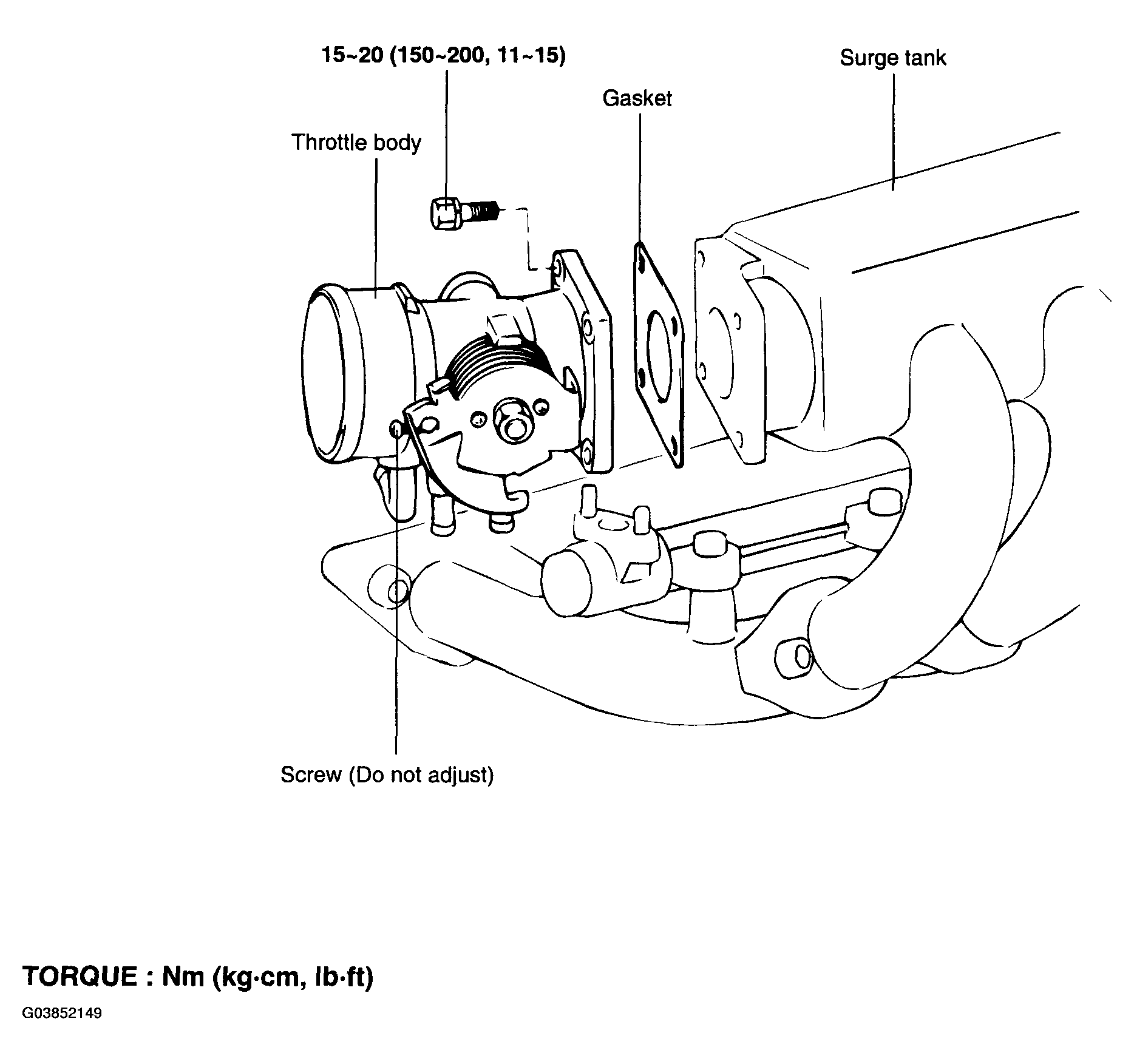

Fig 1: Throttle Body Replacement Components And Torque Specs.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
