Harness Inspection

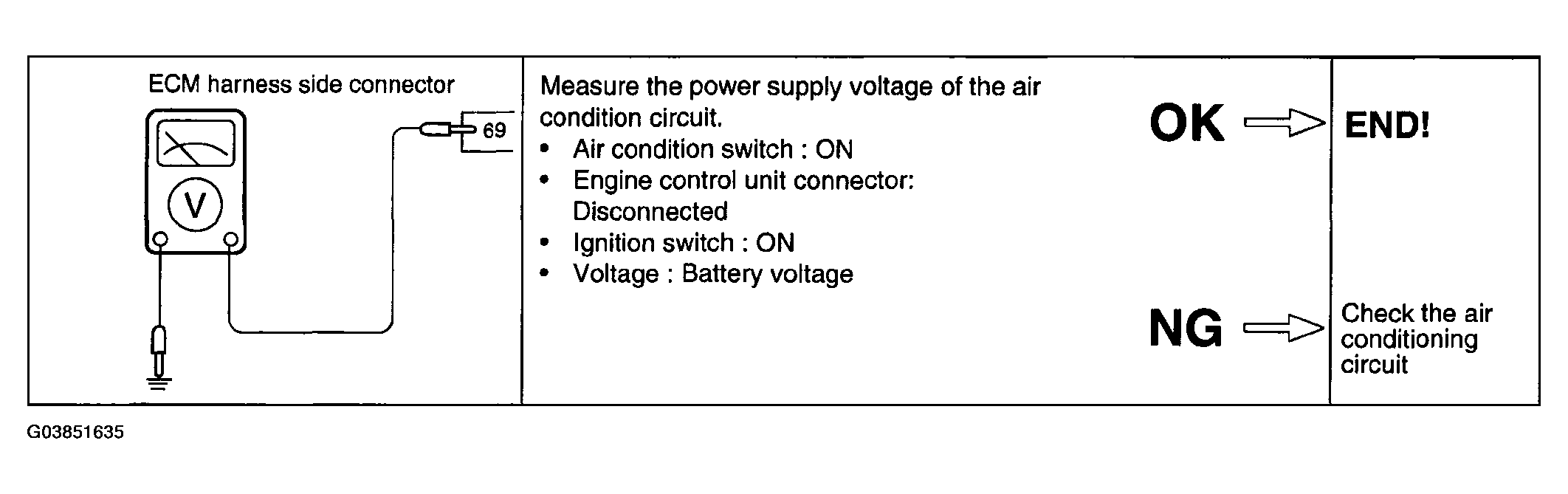

Fig 1: Air Conditioning Switch And Relay Harness Inspection Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
