Camshaft Position Sensor (CMPS): Notes

The camshaft position sensor (CMP Sensor) senses the TDC point of No.1 cylinder on its compression stroke. Its signal is fed to the ECM to be used to determine the sequence of fuel injection.

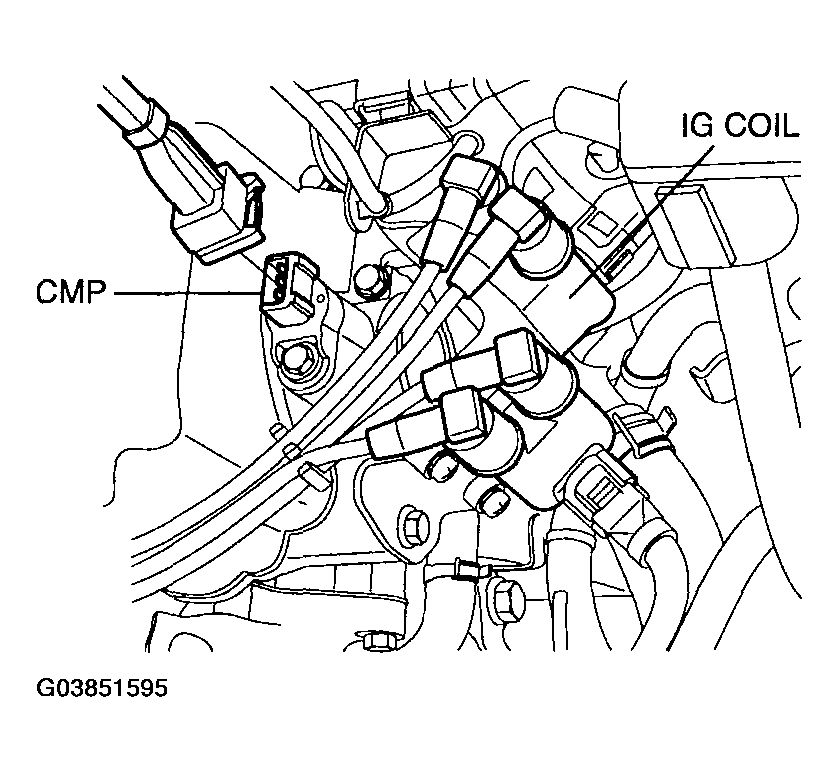

Fig 1: Identifying Camshaft Position Sensor Location
G03851595Courtesy of HYUNDAI MOTOR CO.
