Harness Inspection Procedures

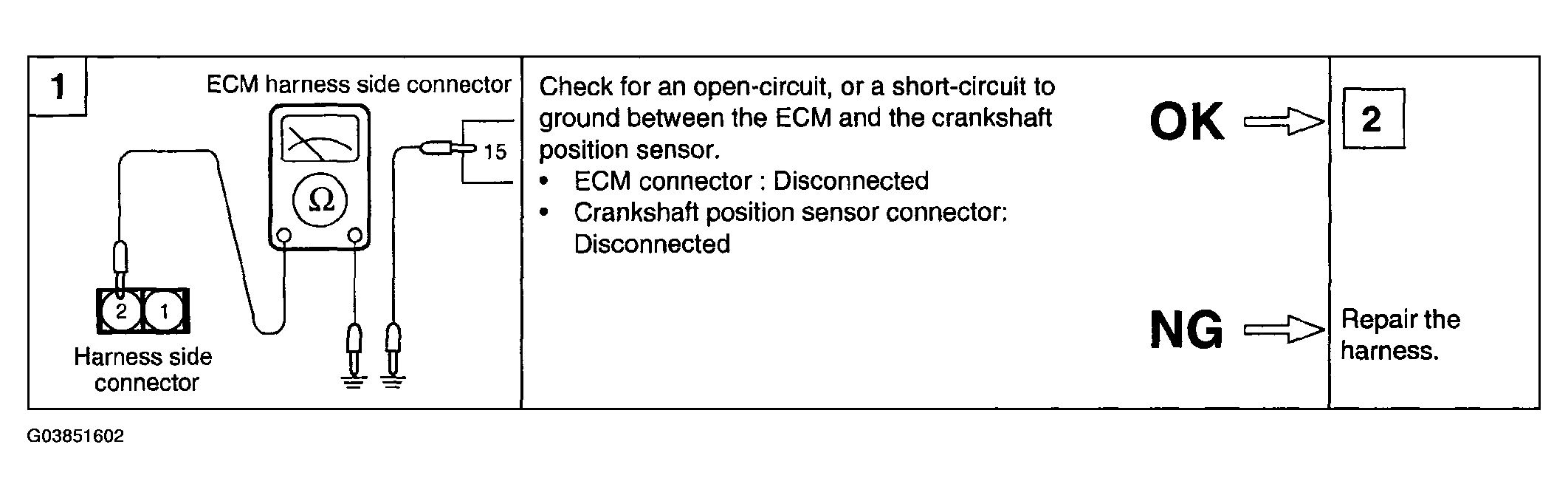

Fig 1: Crankshaft Position Sensor Harness Inspection Procedures Chart (1 Of 2)
G03851602Courtesy of HYUNDAI MOTOR CO.

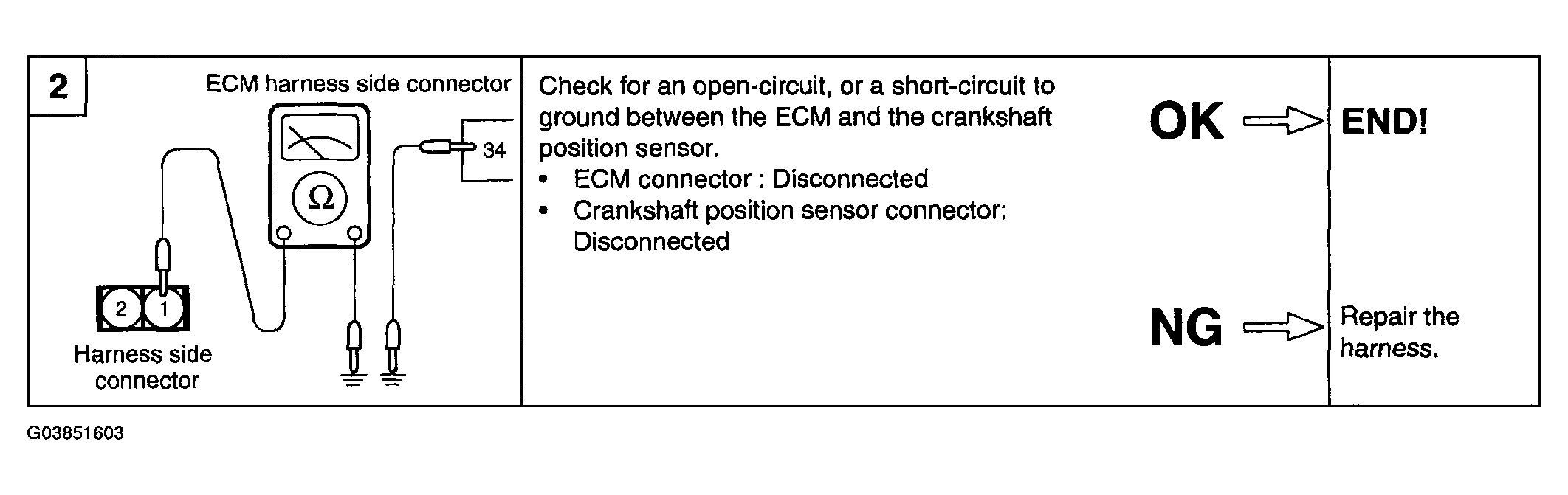

Fig 2: Crankshaft Position Sensor Harness Inspection Procedures Chart (2 Of 2)
G03851603Courtesy of HYUNDAI MOTOR CO.
