Harness Inspection Procedures

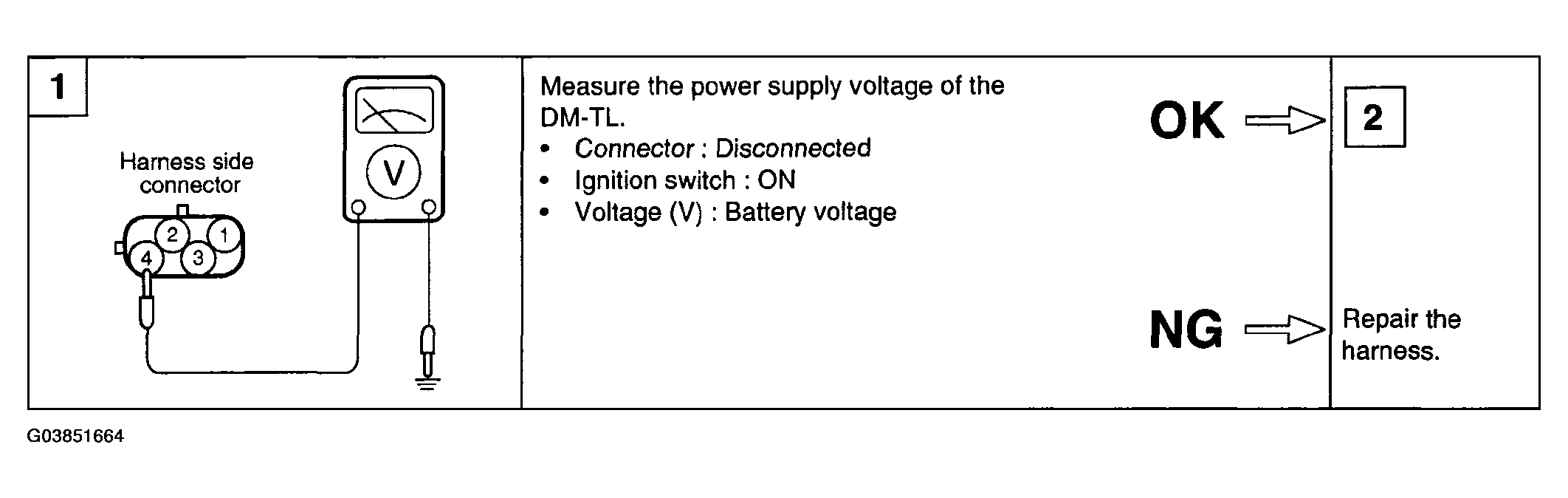

Fig 1: Tank Leakage (DM-TL) Harness Inspection Procedures Chart (1 Of 4)
G03851664Courtesy of HYUNDAI MOTOR CO.

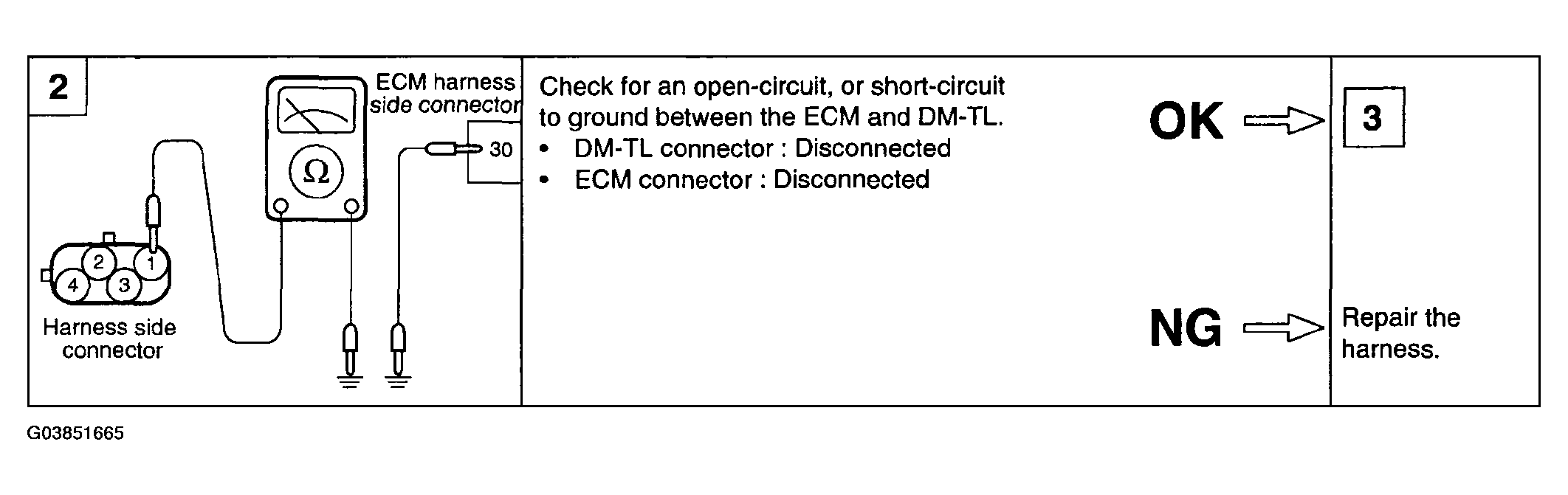

Fig 2: Tank Leakage (DM-TL) Harness Inspection Procedures Chart (2 Of 4)
G03851665Courtesy of HYUNDAI MOTOR CO.

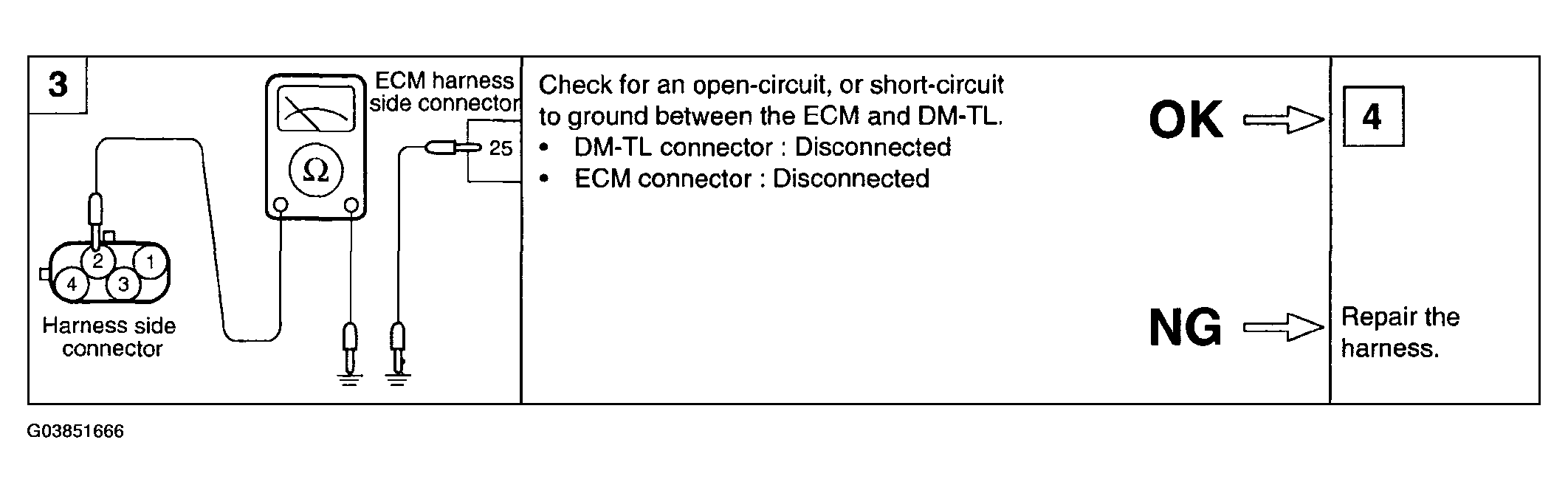

Fig 3: Tank Leakage (DM-TL) Harness Inspection Procedures Chart (3 Of 4)
G03851666Courtesy of HYUNDAI MOTOR CO.

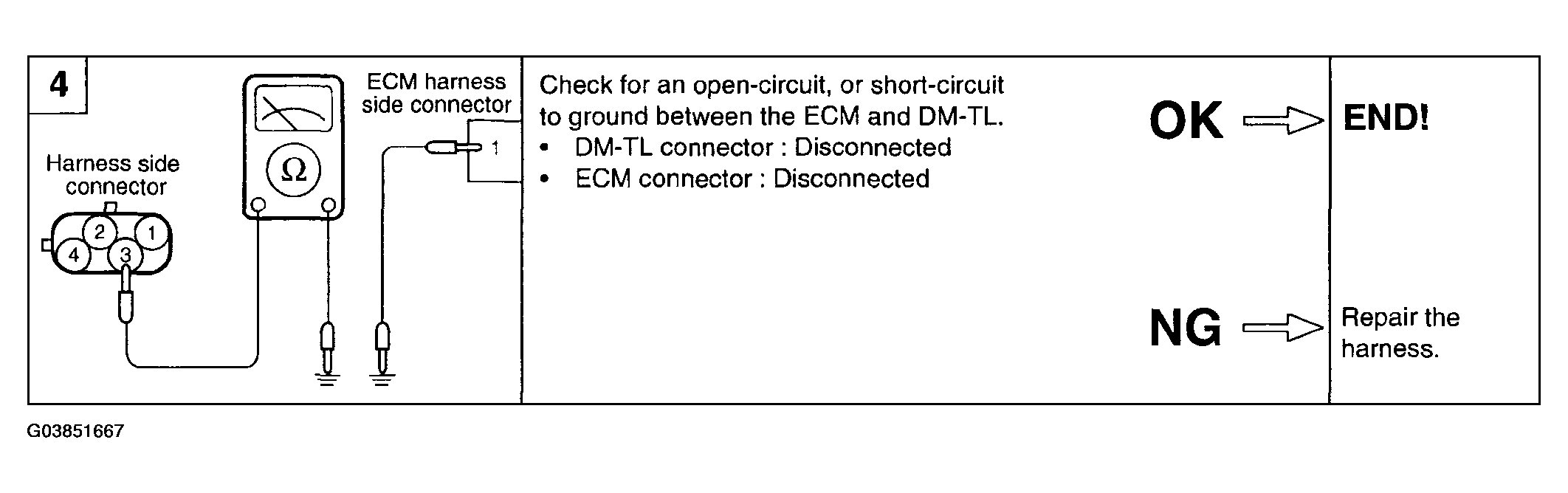

Fig 4: Tank Leakage (DM-TL) Harness Inspection Procedures Chart (4 Of 4)
G03851667Courtesy of HYUNDAI MOTOR CO.
