Troubleshooting Hints

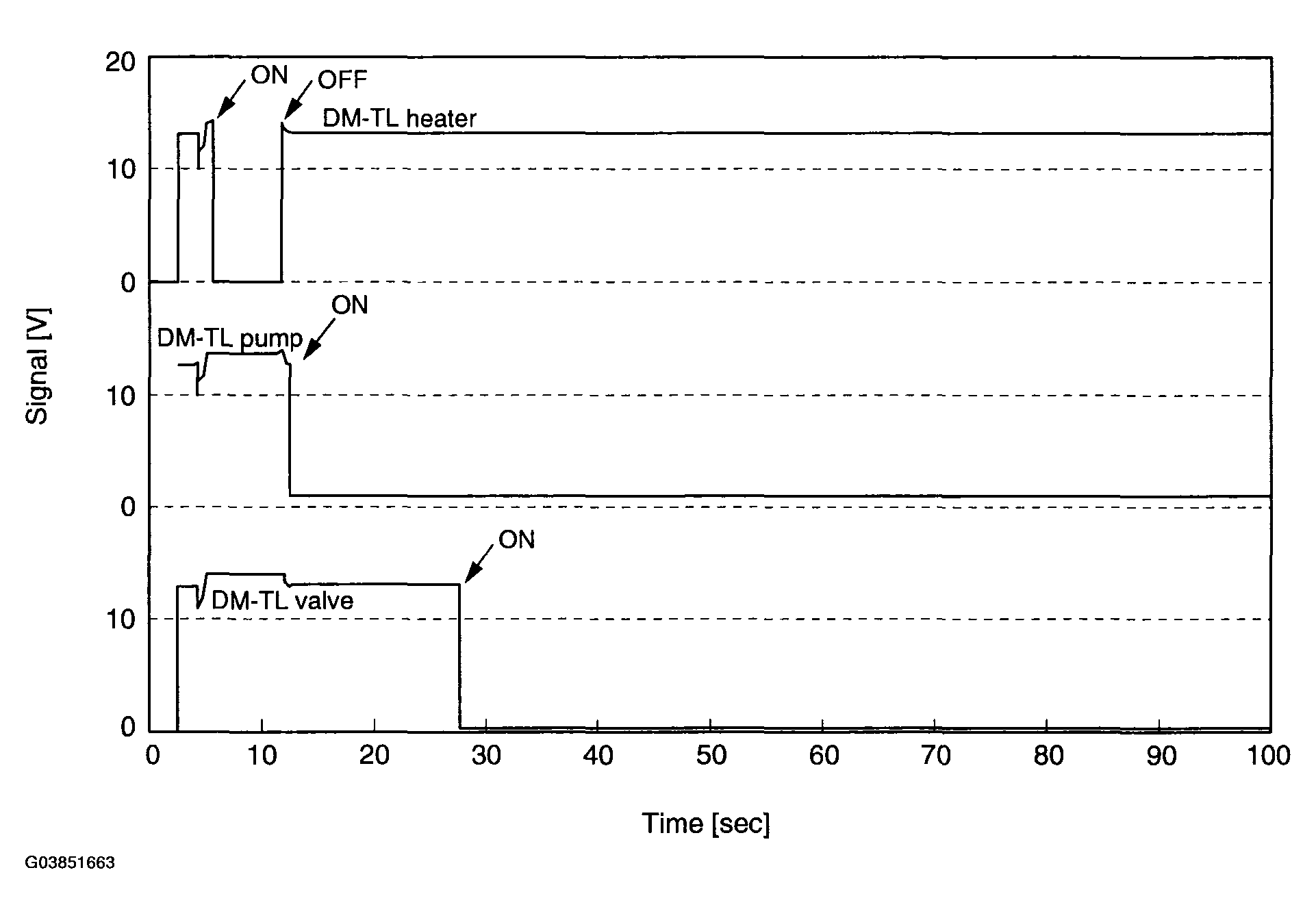

- DM-TL control signal
Courtesy of HYUNDAI MOTOR CO.
- DM-TL operating conditions.
- DM-TL monitoring operation starts only after all the conditions below are met.
- Vehicle soaking over 4 hours and 30 minutes.
- Engine coolant temperature over 2.3°C (36.1°F) when starting.
- Ambient temperature between 1.5°C (34.7°F) and 40.5°C (104.9°F).
- 6.4L or more gasoline in the fuel tank.
- Over 20 minutes driving after starting.
- During Air Bag is not working.
- And also you can check the DM-TL operation with simulation mode of HI-SCAN.
