Harness Inspection Procedures

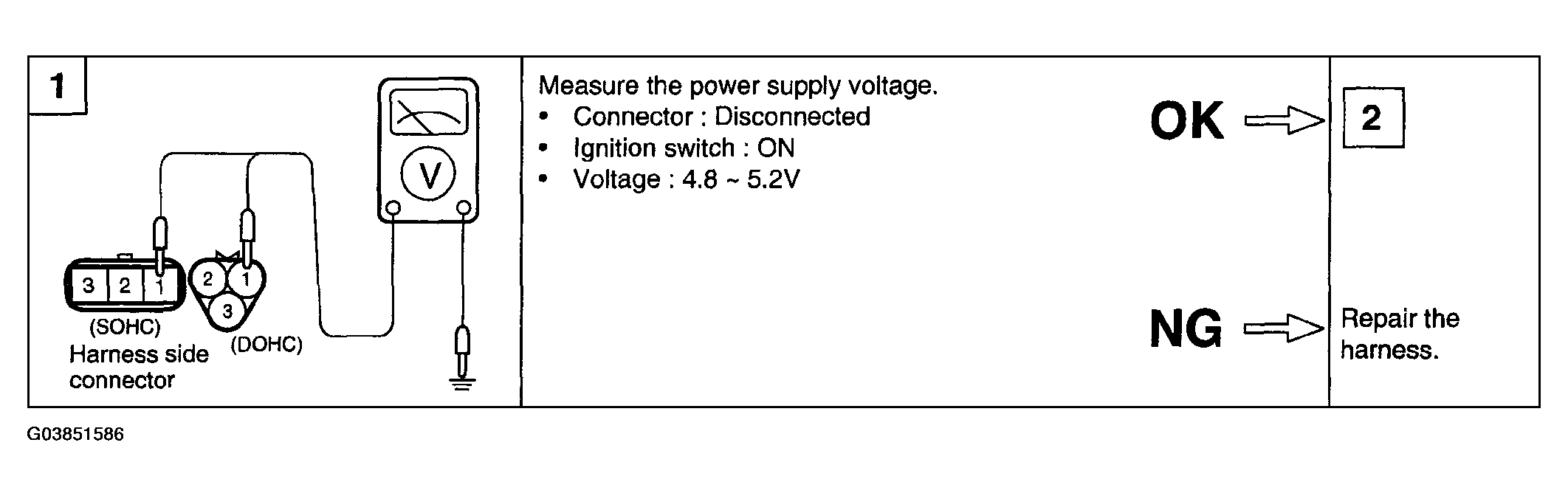

Fig 1: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (1 Of 2)
G03851586Courtesy of HYUNDAI MOTOR CO.

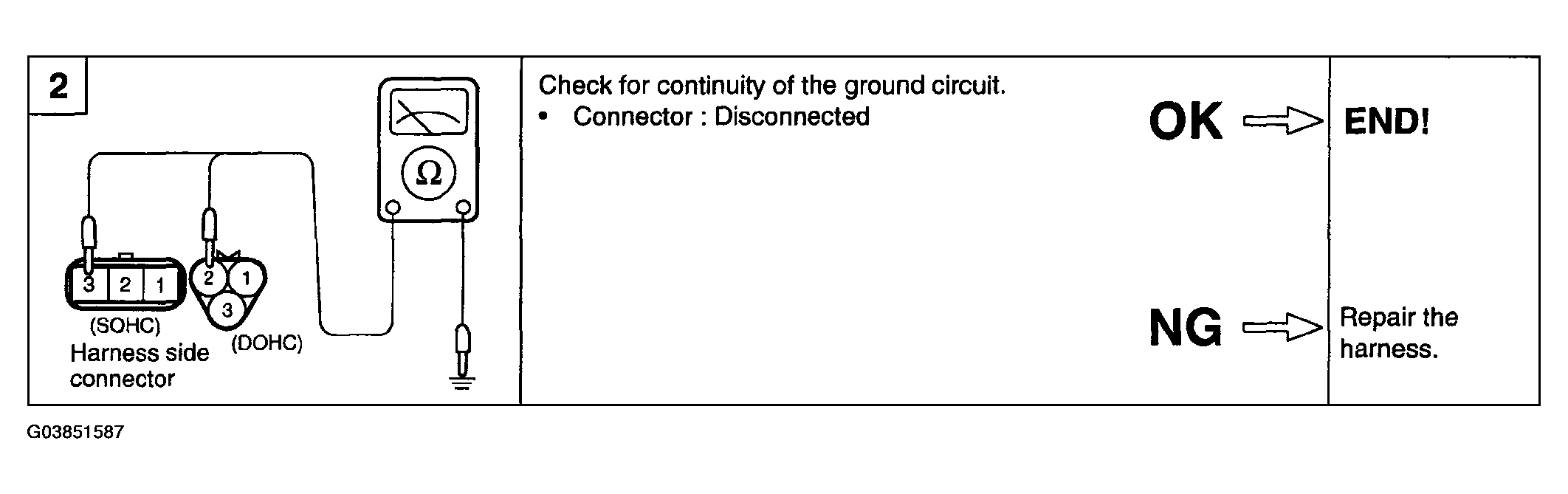

Fig 2: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (2 Of 2)
G03851587Courtesy of HYUNDAI MOTOR CO.
