Harness Inspection Procedures

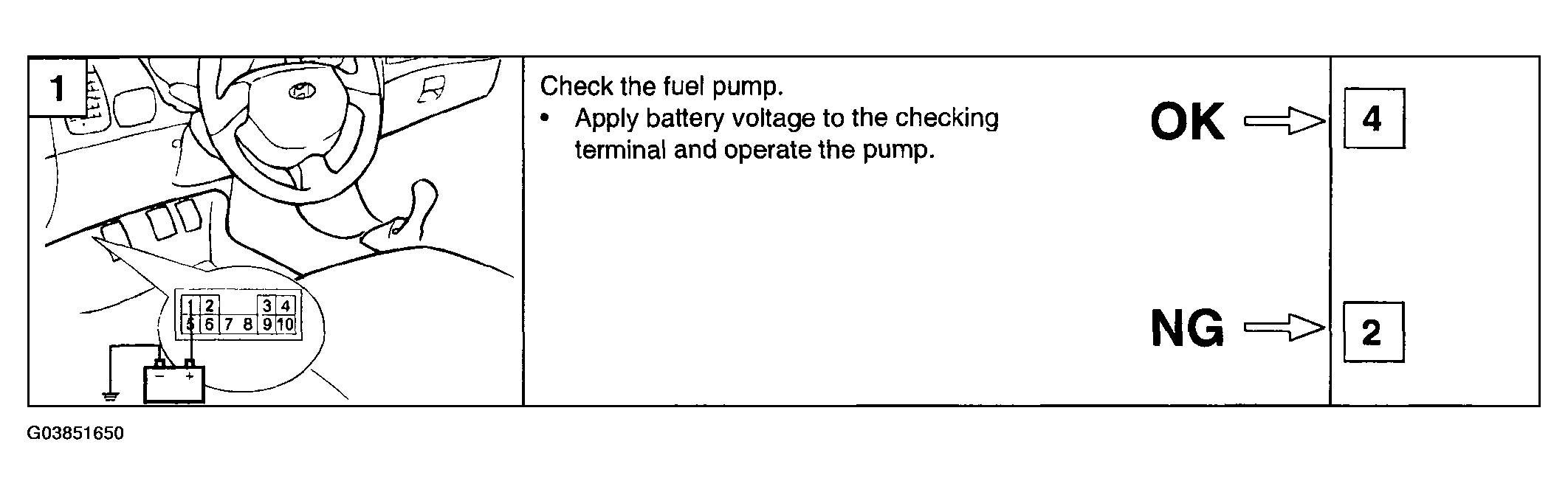

Fig 1: Fuel Pump Harness Inspection Procedures Chart (1 Of 6)
Courtesy of HYUNDAI MOTOR CO.

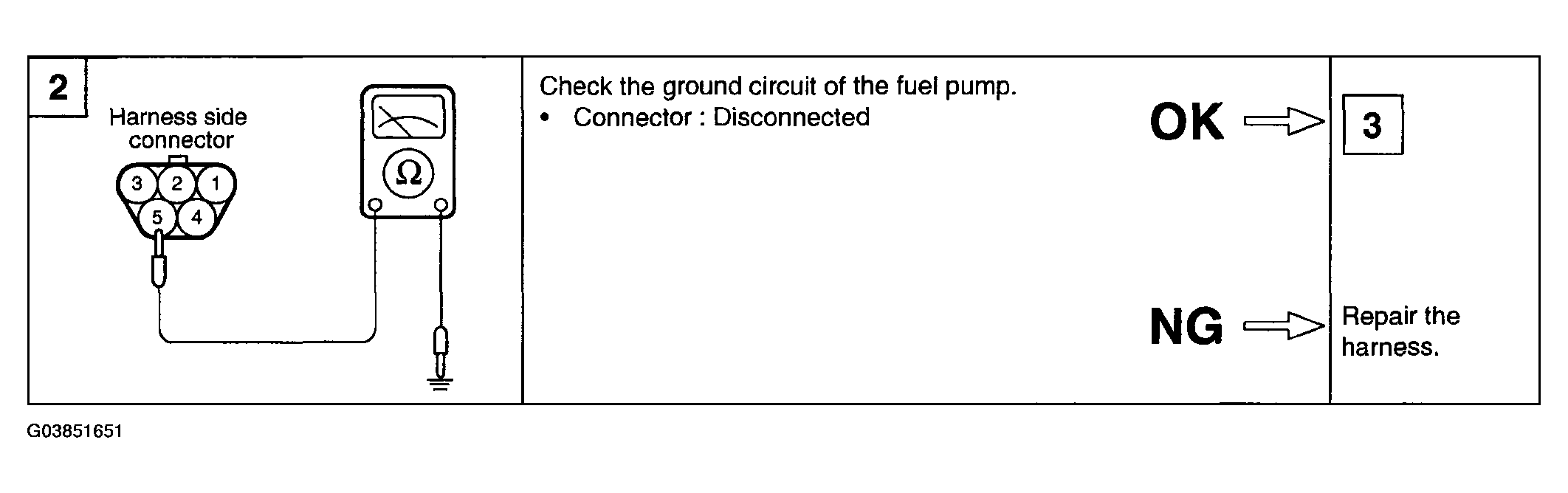

Fig 2: Fuel Pump Harness Inspection Procedures Chart (2 Of 6)
Courtesy of HYUNDAI MOTOR CO.

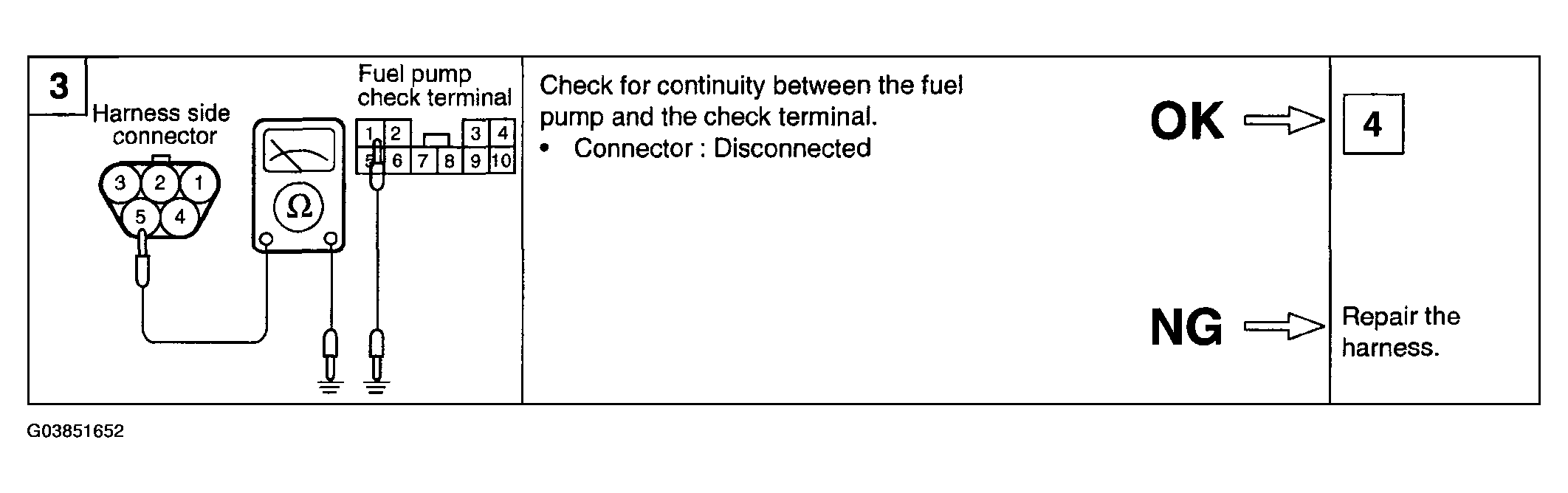

Fig 3: Fuel Pump Harness Inspection Procedures Chart (3 Of 6)
Courtesy of HYUNDAI MOTOR CO.

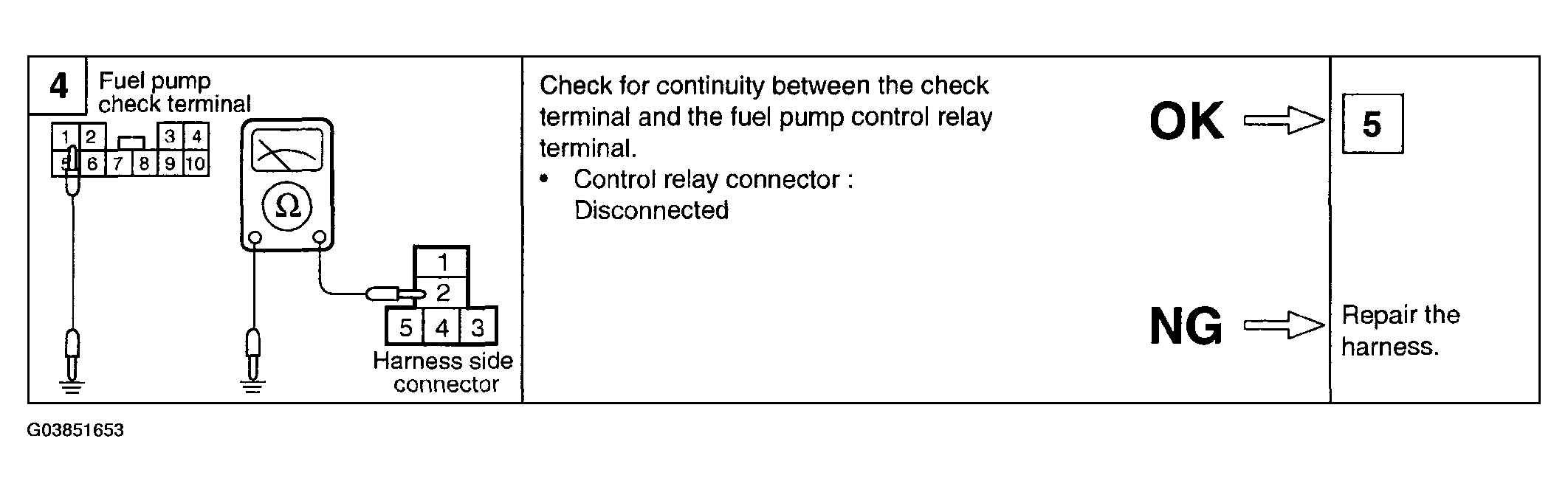

Fig 4: Fuel Pump Harness Inspection Procedures Chart (4 Of 6)
Courtesy of HYUNDAI MOTOR CO.

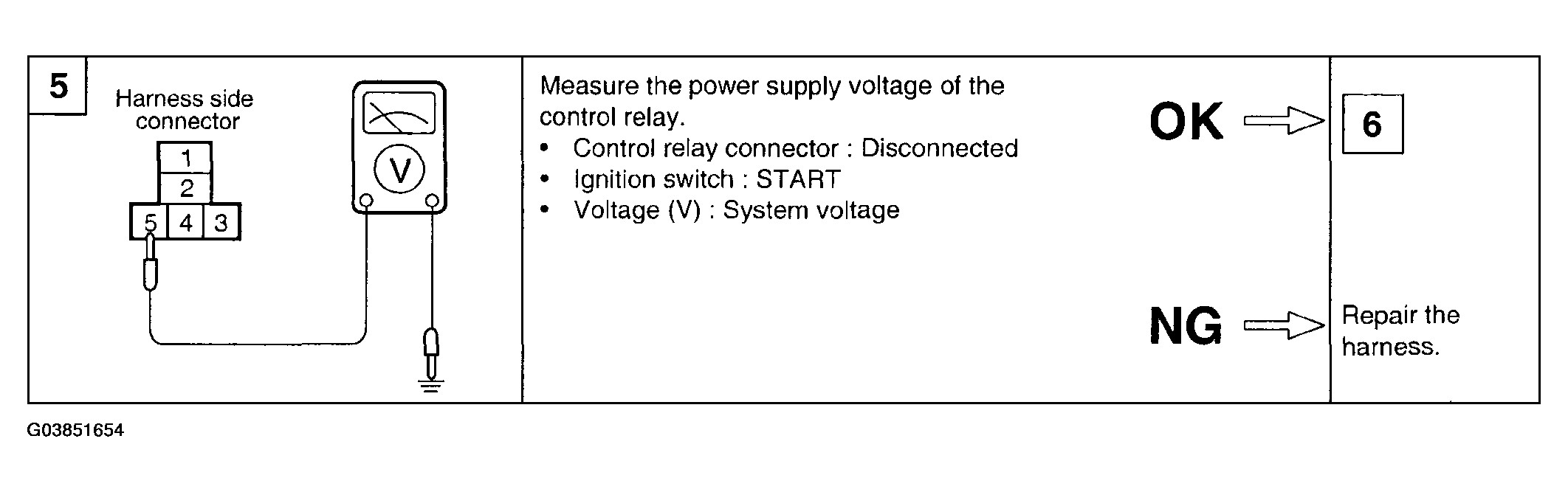

Fig 5: Fuel Pump Harness Inspection Procedures Chart (5 Of 6)
Courtesy of HYUNDAI MOTOR CO.

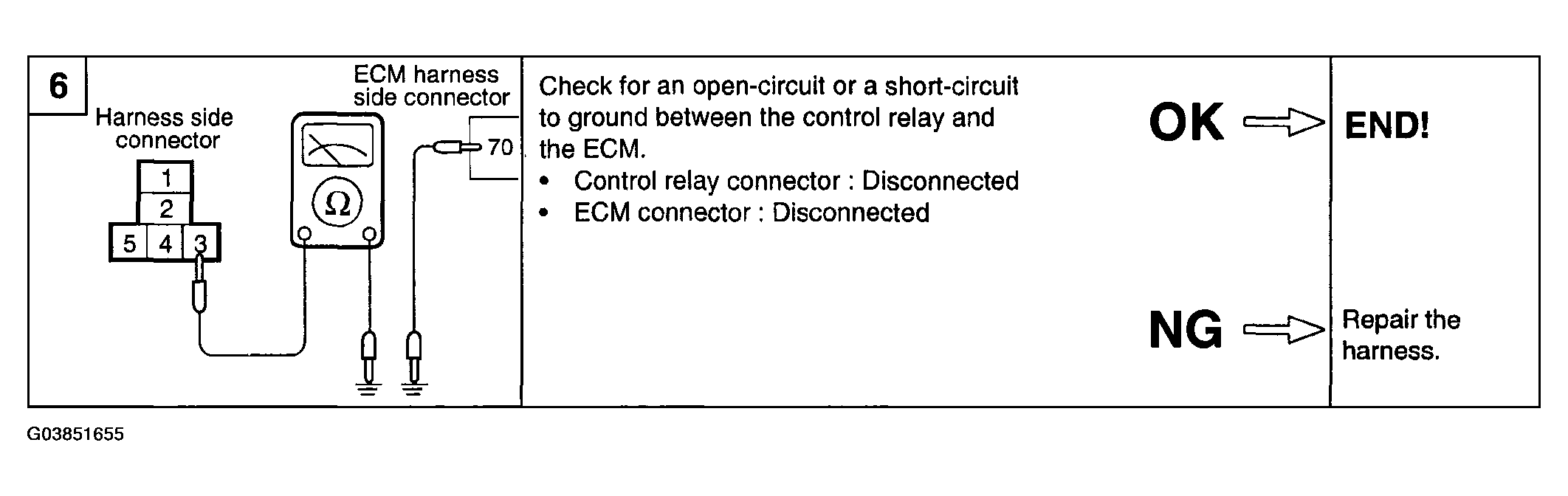

Fig 6: Fuel Pump Harness Inspection Procedures Chart (6 Of 6)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
