Harness Inspection Procedures

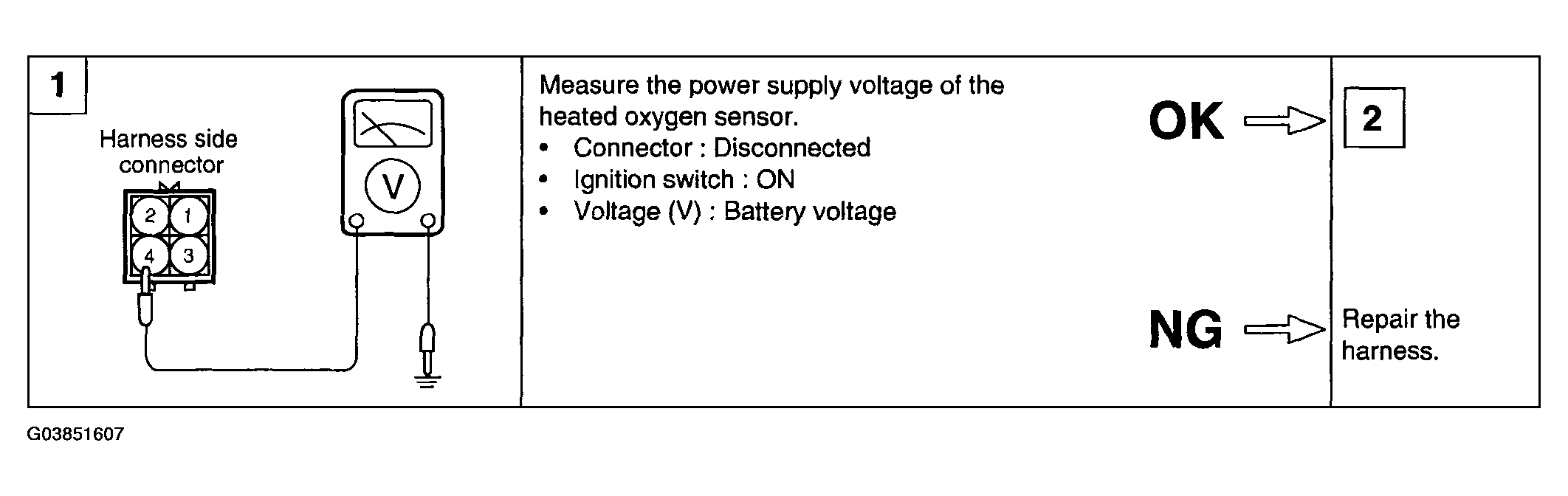

Fig 1: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

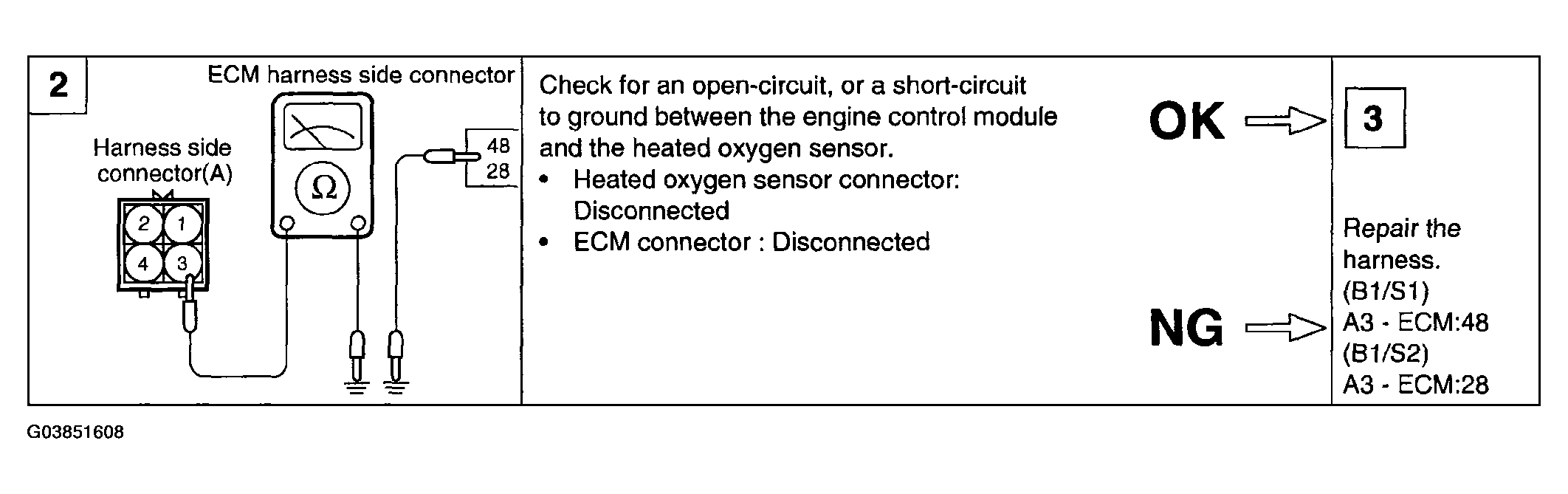

Fig 2: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

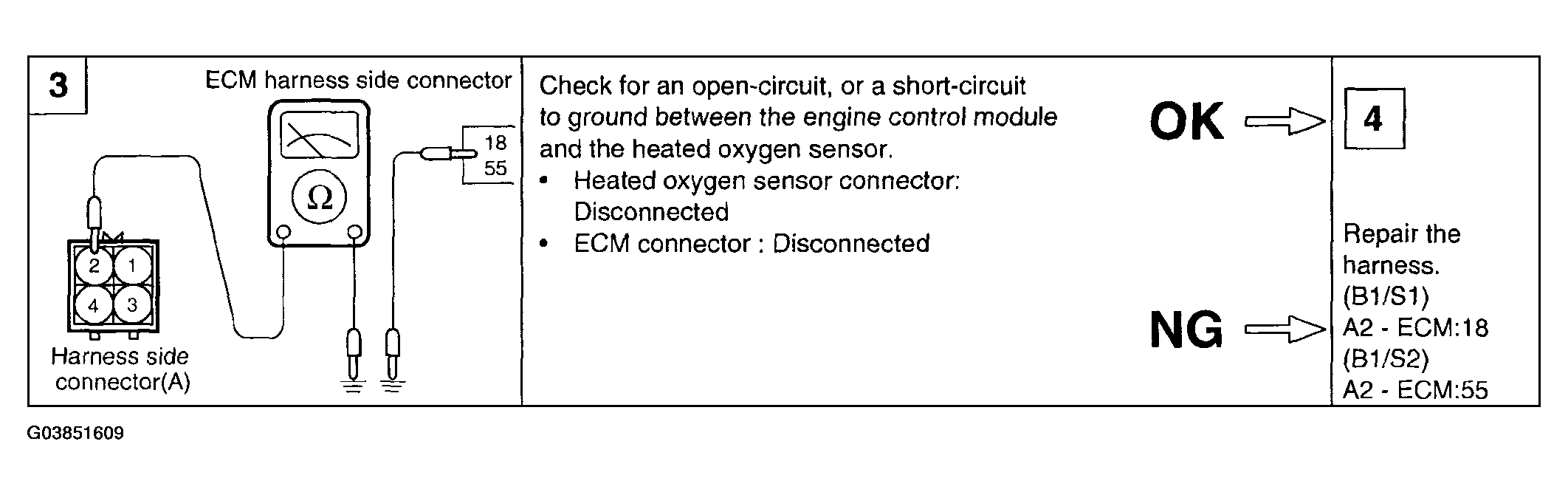

Fig 3: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

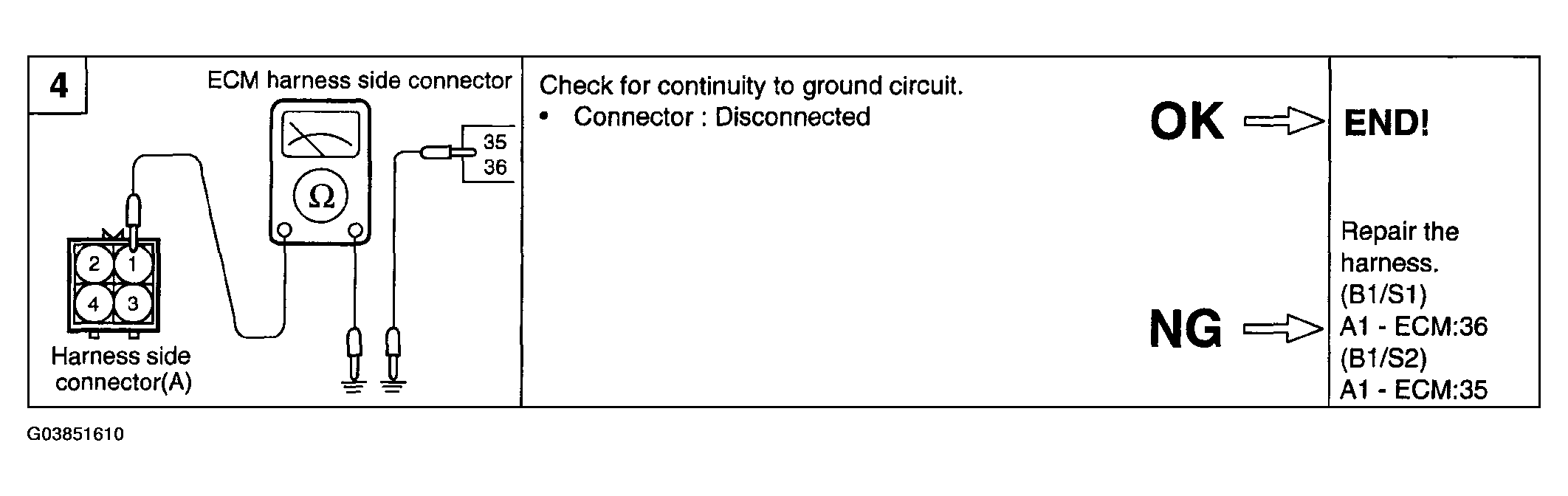

Fig 4: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
