Harness Inspection Procedures

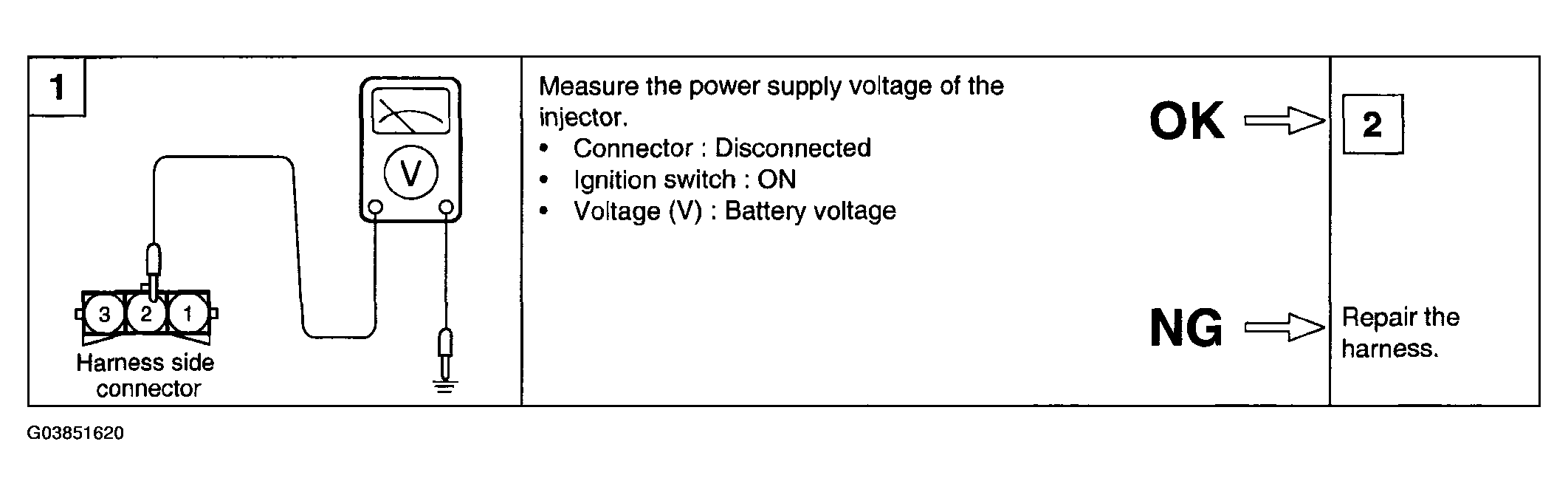

Fig 1: Idle Speed Control Actuator Harness Inspection Procedures Chart (1 Of 2)
G03851620Courtesy of HYUNDAI MOTOR CO.

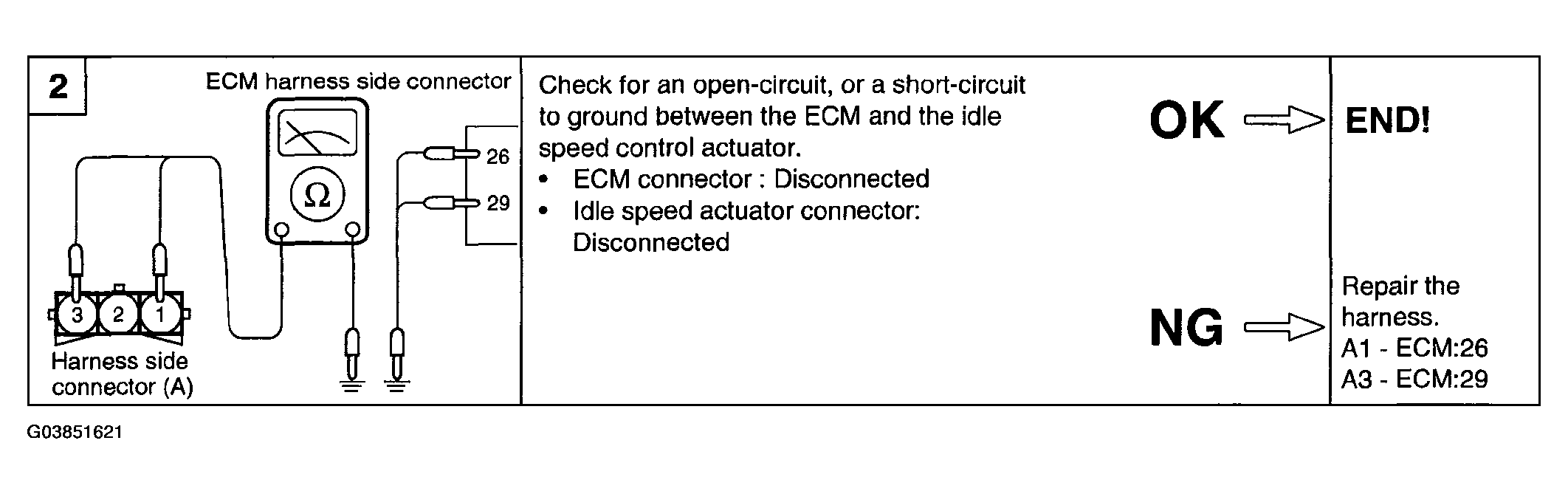

Fig 2: Idle Speed Control Actuator Harness Inspection Procedures Chart (2 Of 2)
G03851621Courtesy of HYUNDAI MOTOR CO.
