Harness Inspection Procedures

Fig 1: Ignition Coil Harness Inspection Procedures Chart (1 Of 2)
G03851646Courtesy of HYUNDAI MOTOR CO.

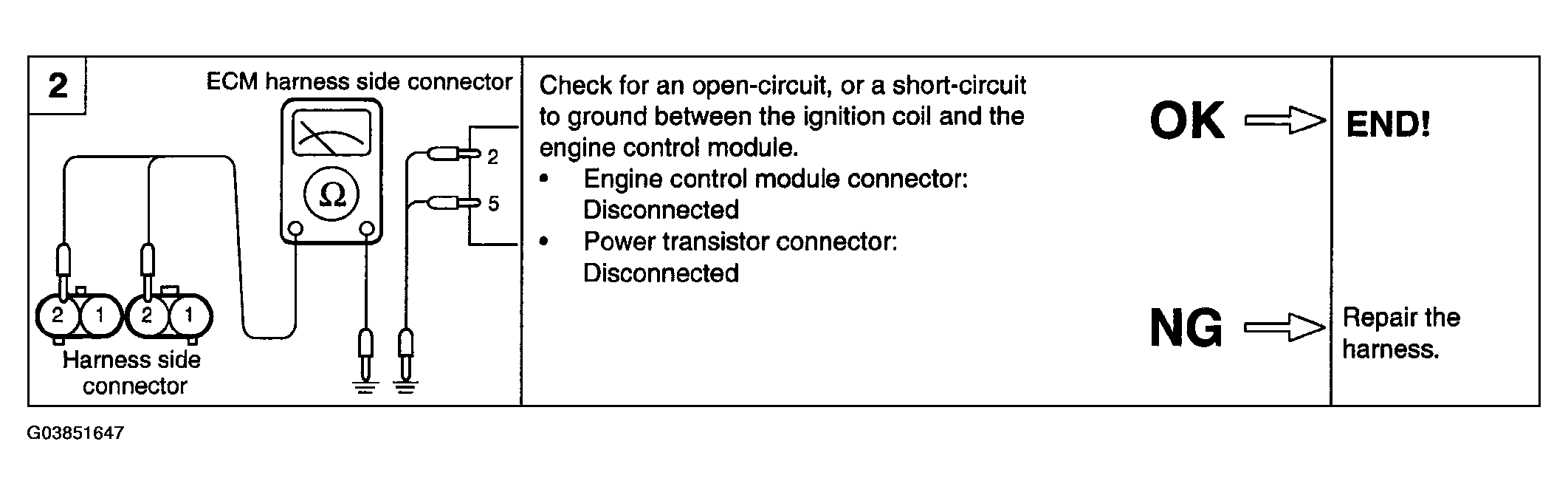

Fig 2: Ignition Coil Harness Inspection Procedures Chart (2 Of 2)
G03851647Courtesy of HYUNDAI MOTOR CO.
