Resistance Measurement Between Terminals

  1. Disconnect the connector of the injector and measure the resistance between the two terminals.

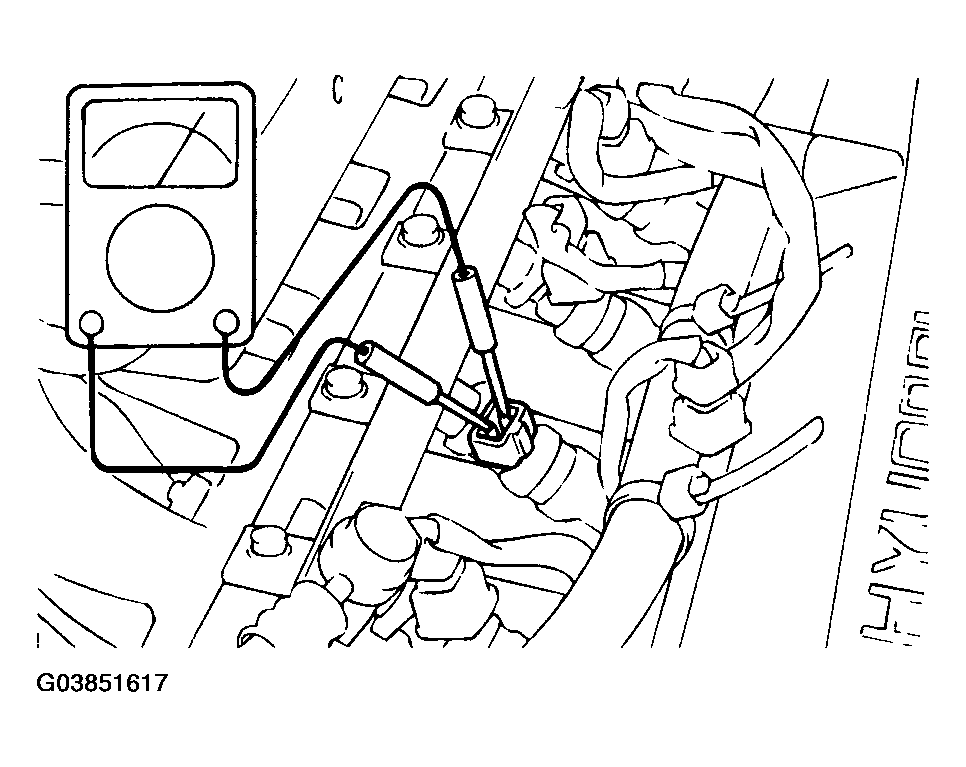

    Fig 1: Measuring Resistance Between Injector Terminals
    G03851617Courtesy of HYUNDAI MOTOR CO.

    Standard value  : 15.9 +/- 0.35Ω [at 20°C (68°F)]

  2. Reconnect the connector to the injector.
