Sensor Inspection

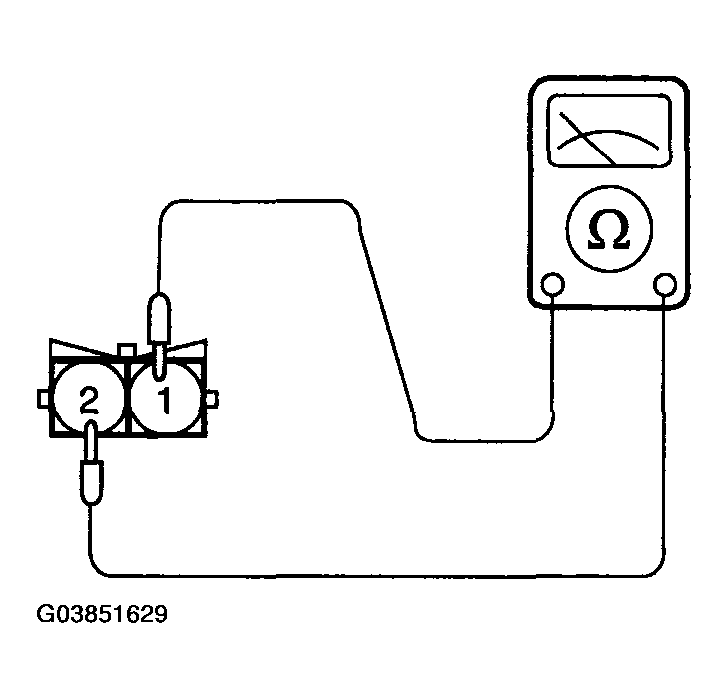

- Disconnect the knock sensor connector and measure resistance between terminals 1 and 2.
Standard value : about 5MΩ [at 20°C (68°F)]
- If the resistance is continuous, replace the knock sensor.
Tightening torque
Knock sensor:
16~25 Nm (160~250 kg.cm, 12~18 lb.ft)
- Measure the capacitance between terminals 1 and 2.
Standard value : 800~1600 pF
