Harness Inspection Procedures

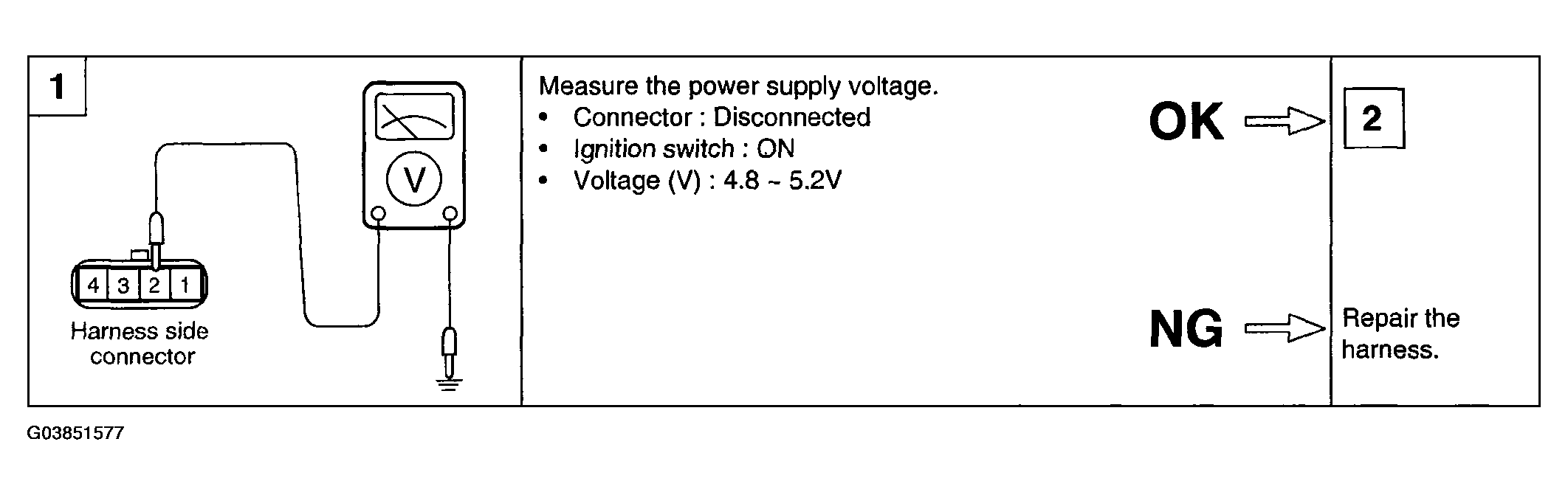

Fig 1: Manifold Absolute Pressure Sensor Harness Inspection Procedures Chart (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

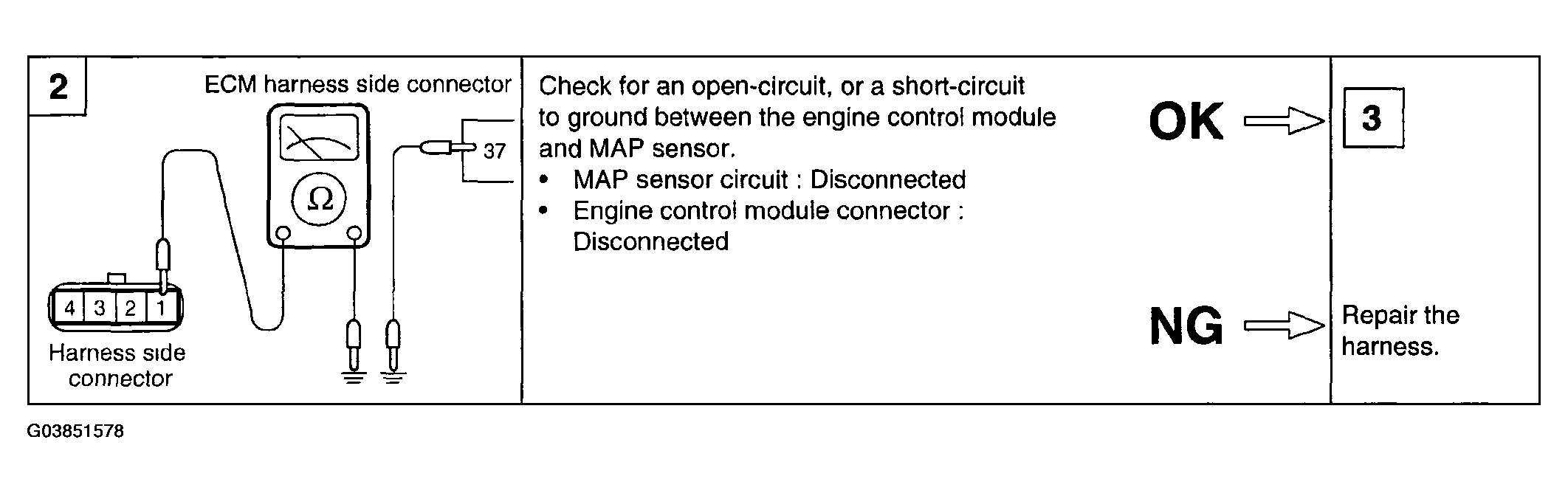

Fig 2: Manifold Absolute Pressure Sensor Harness Inspection Procedures Chart (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

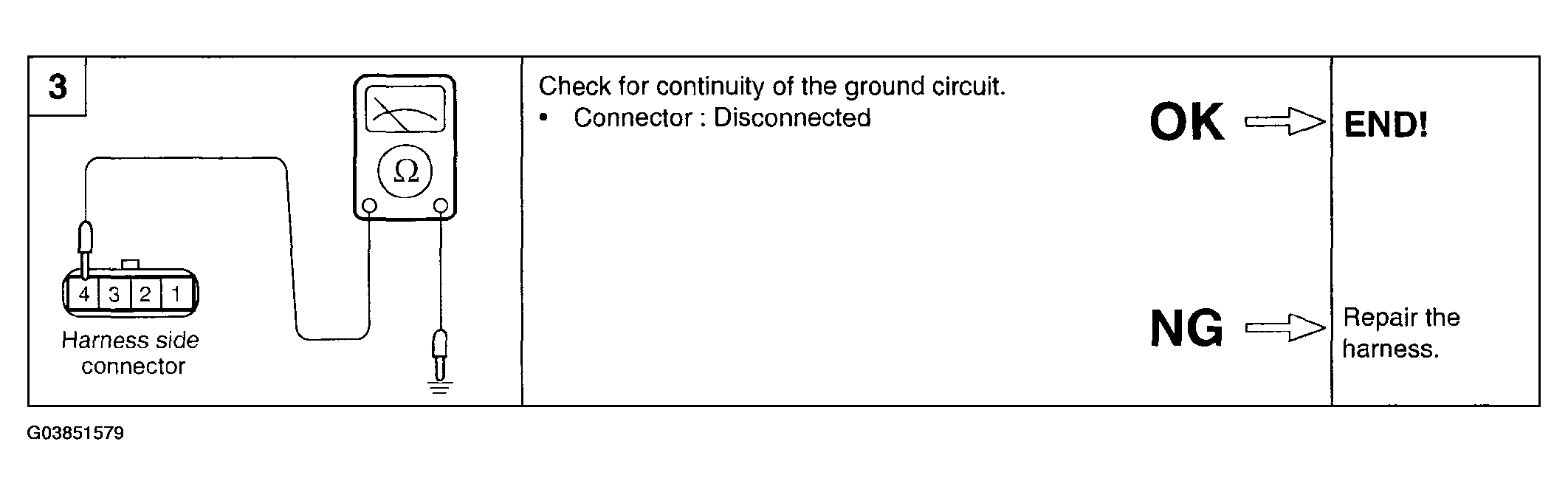

Fig 3: Manifold Absolute Pressure Sensor Harness Inspection Procedures Chart (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
