Accelerator Pedal: Components

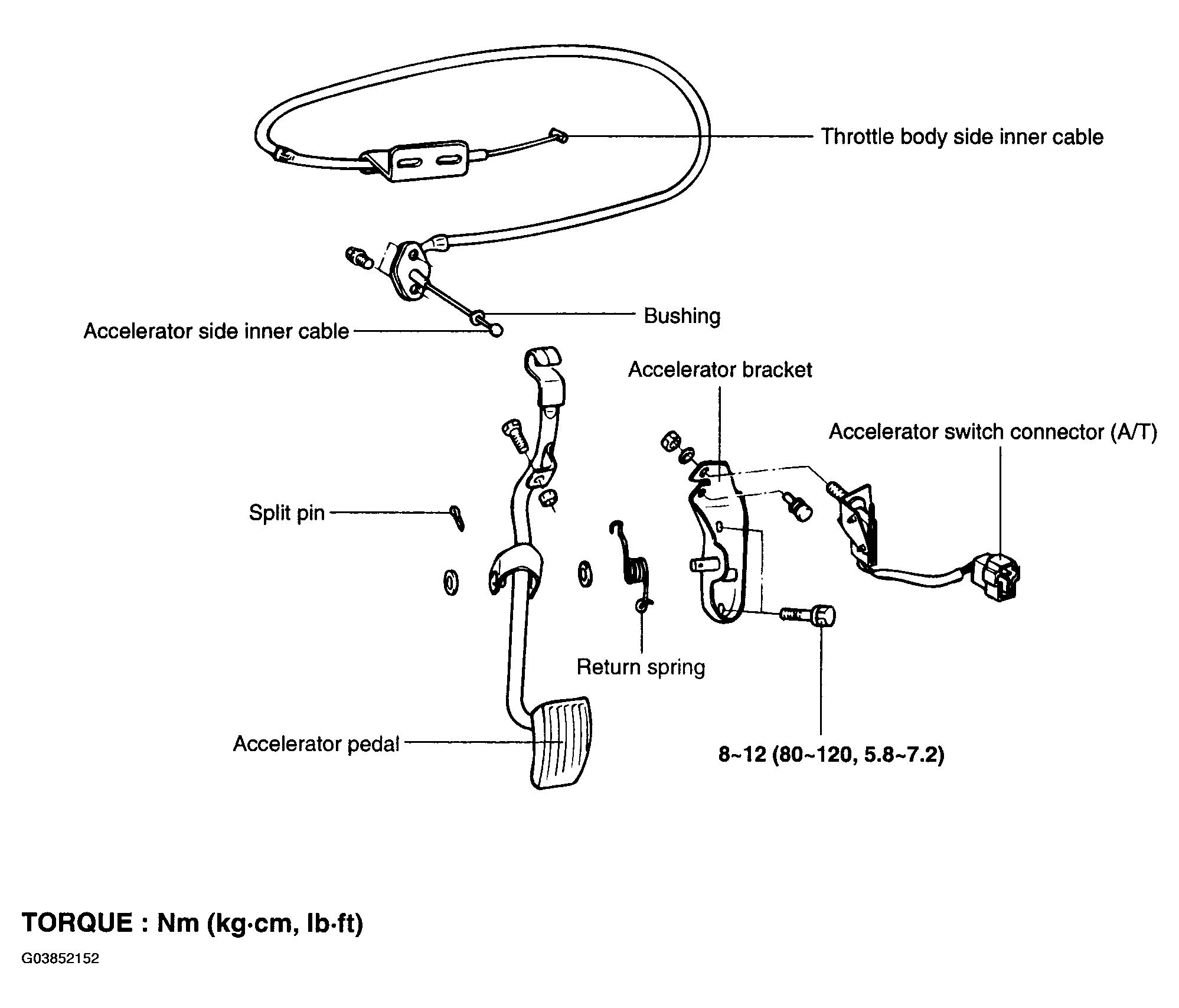

Fig 1: Accelerator Pedal Replacement Components And Torque Specs.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
