Fuel Injector: Components

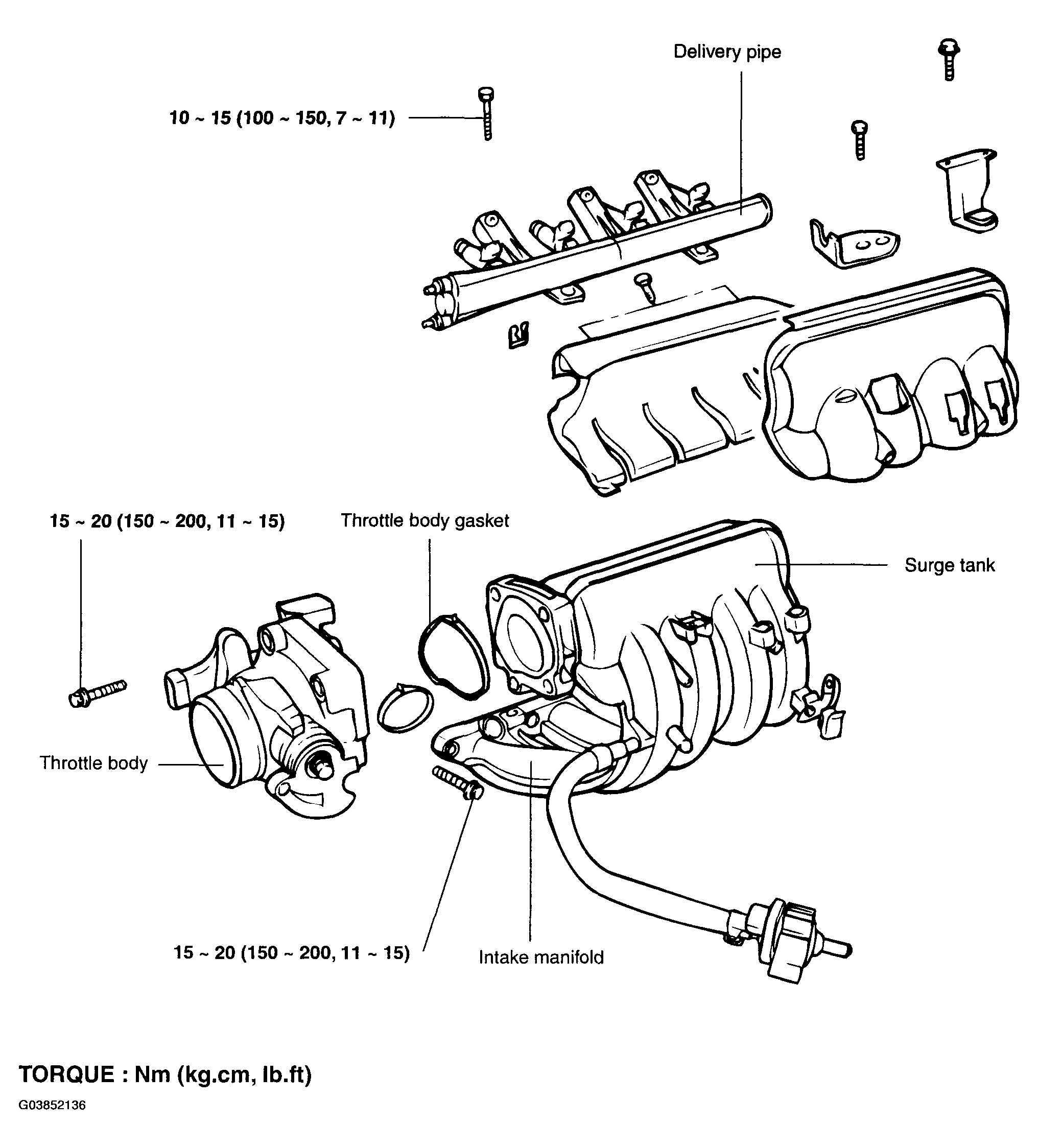

Fig 1: Fuel Delivery System Replacement Components And Torque Specs.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
