Harness Inspection Procedures

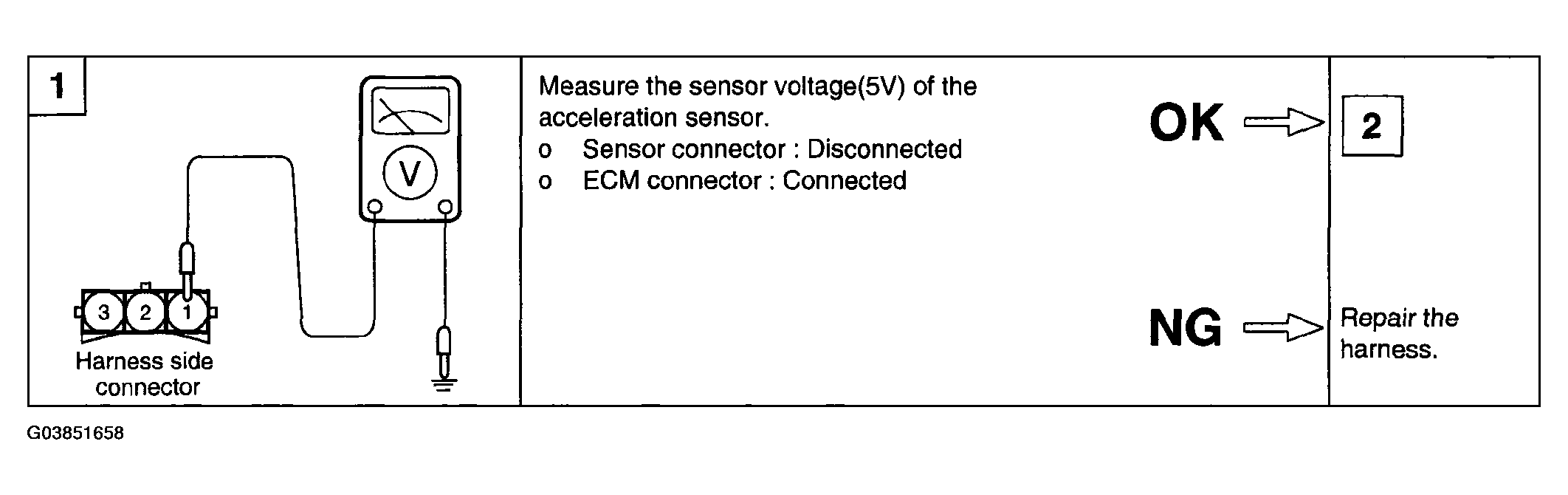

Fig 1: Acceleration Sensor Harness Inspection Procedures Chart (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

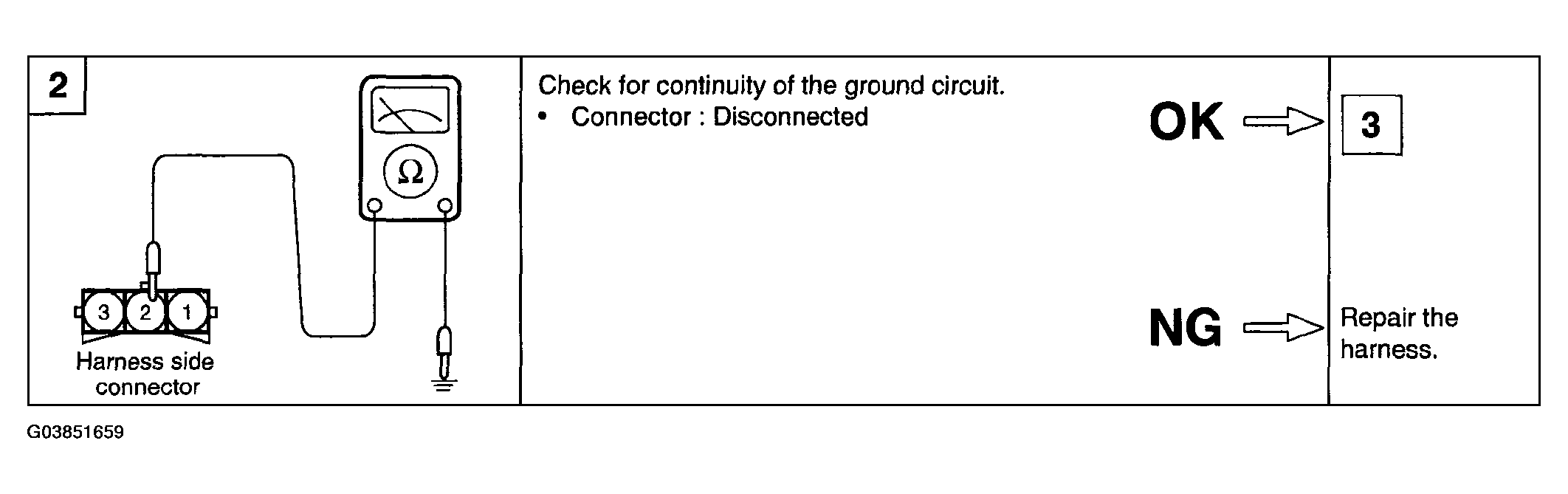

Fig 2: Acceleration Sensor Harness Inspection Procedures Chart (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

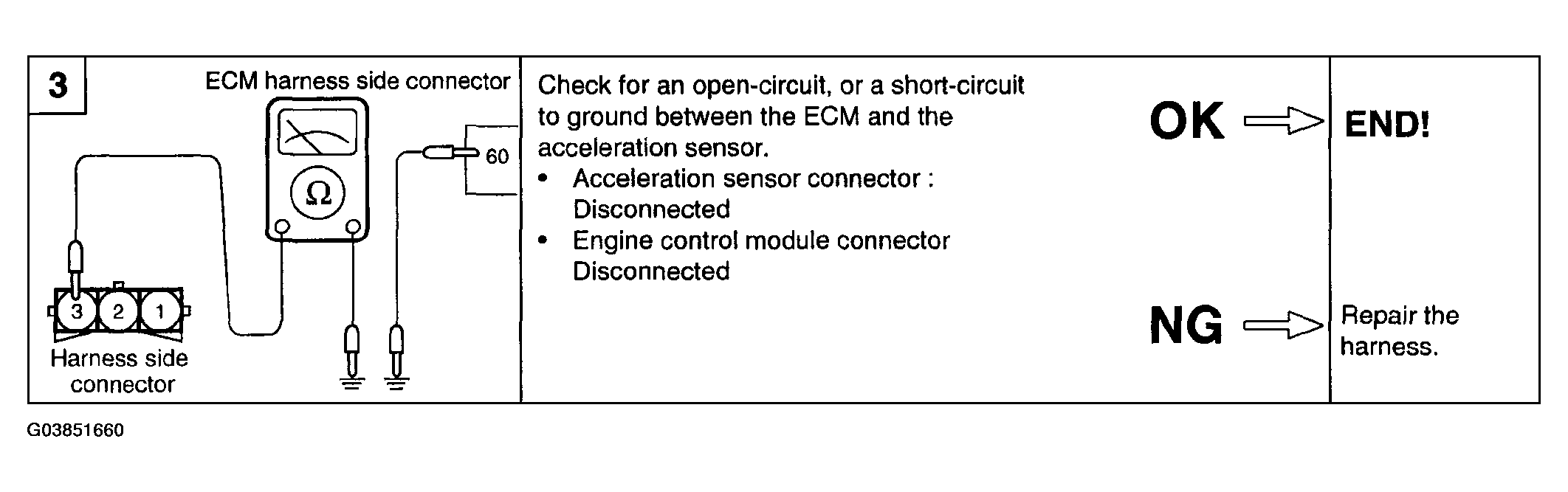

Fig 3: Acceleration Sensor Harness Inspection Procedures Chart (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
