Gasoline Engine Control System: Components

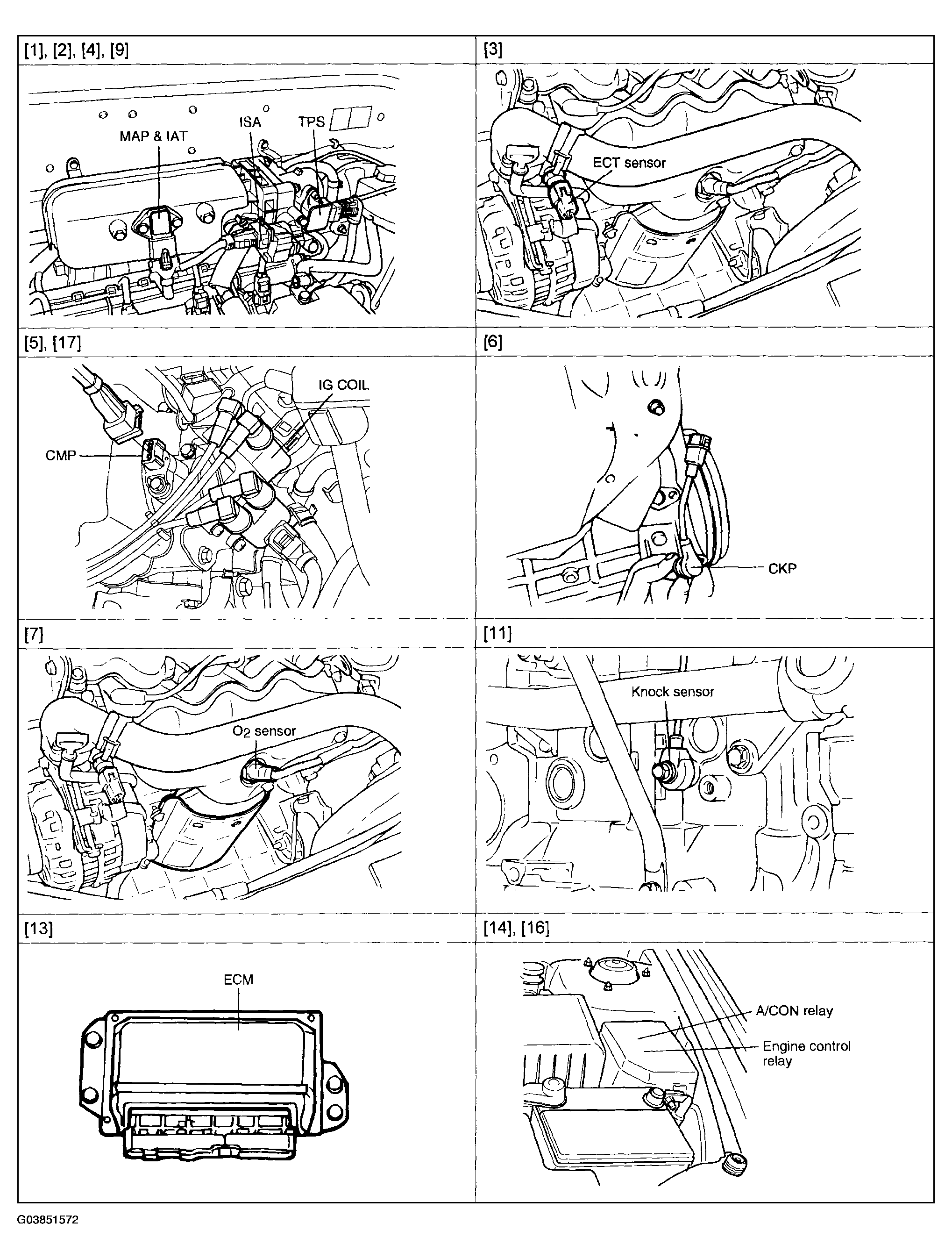

Fig 1: Identifying Gasoline Engine Control System Component Locations (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

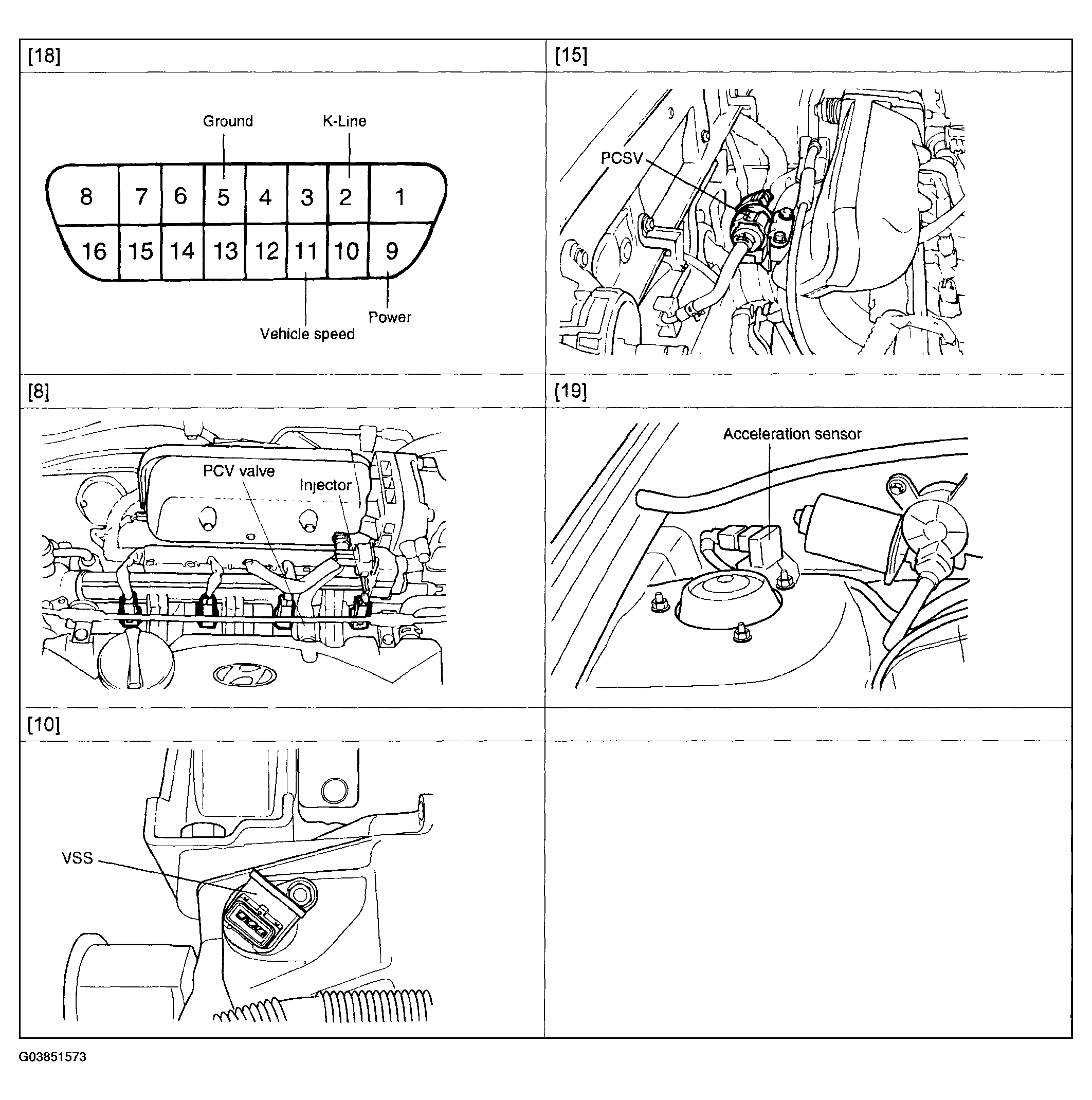

Fig 2: Identifying Gasoline Engine Control System Component Locations (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

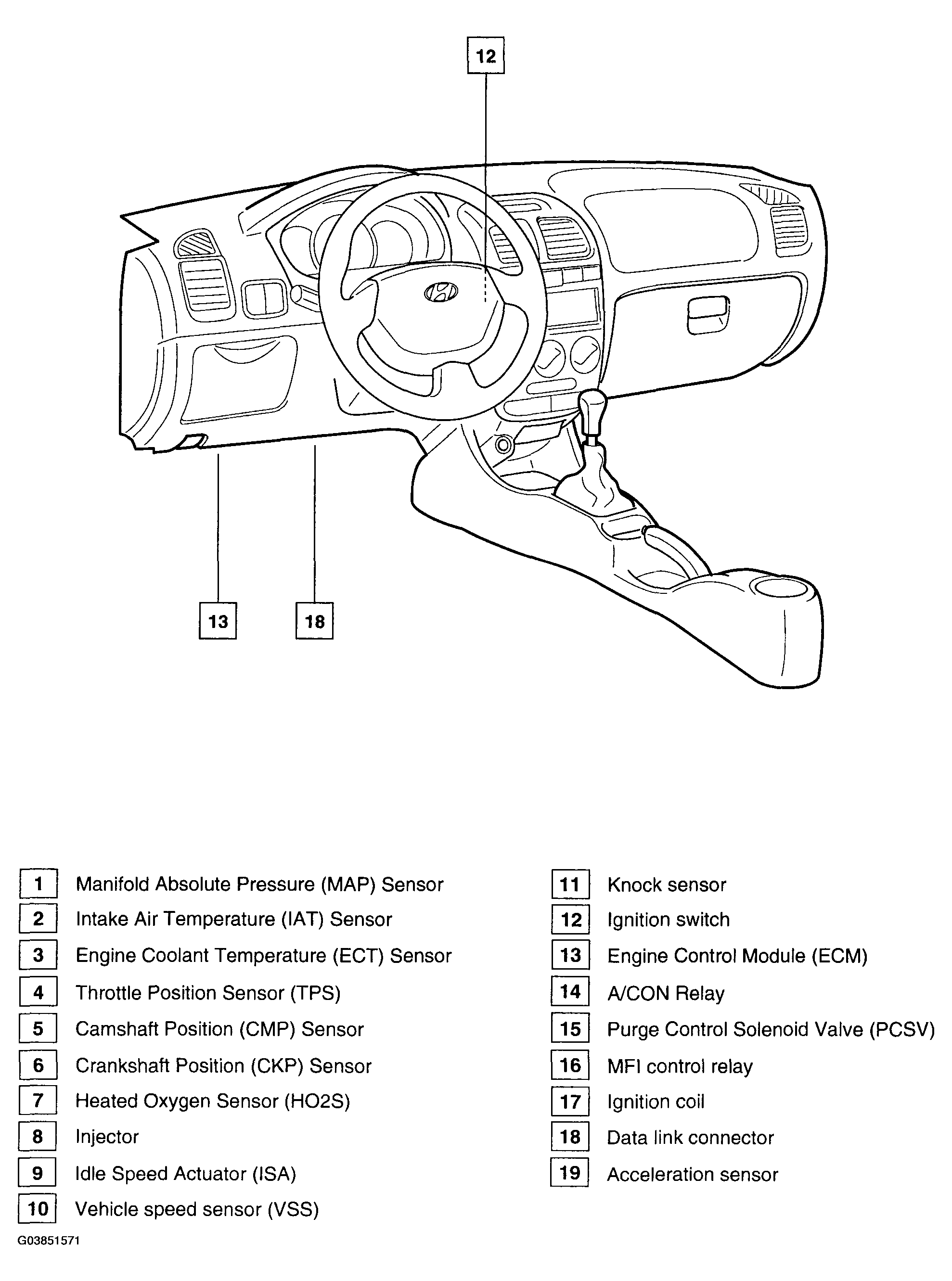

Fig 3: Identifying Gasoline Engine Control System Component Locations (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

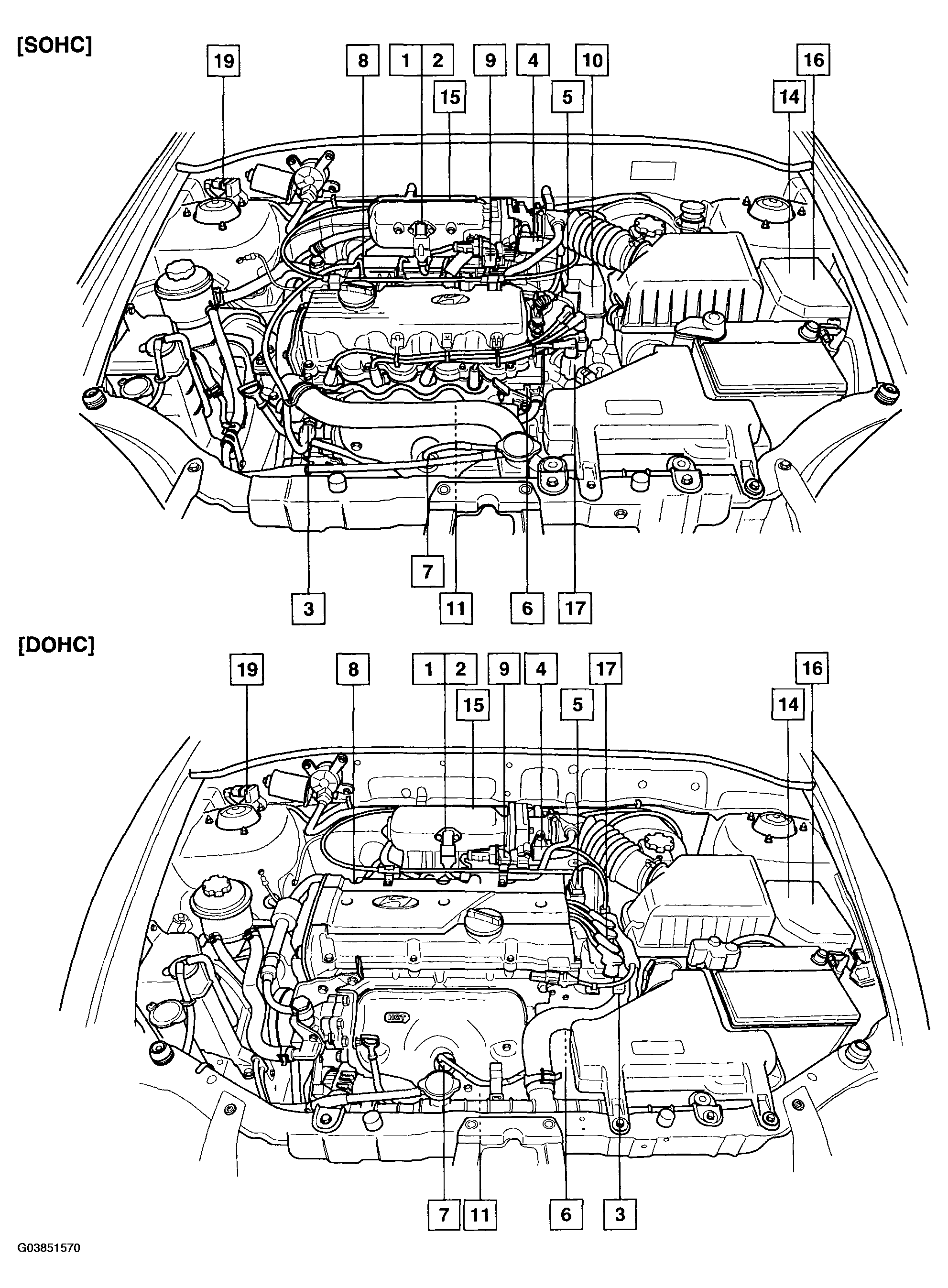

Fig 4: Identifying Gasoline Engine Control System Component Locations (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.

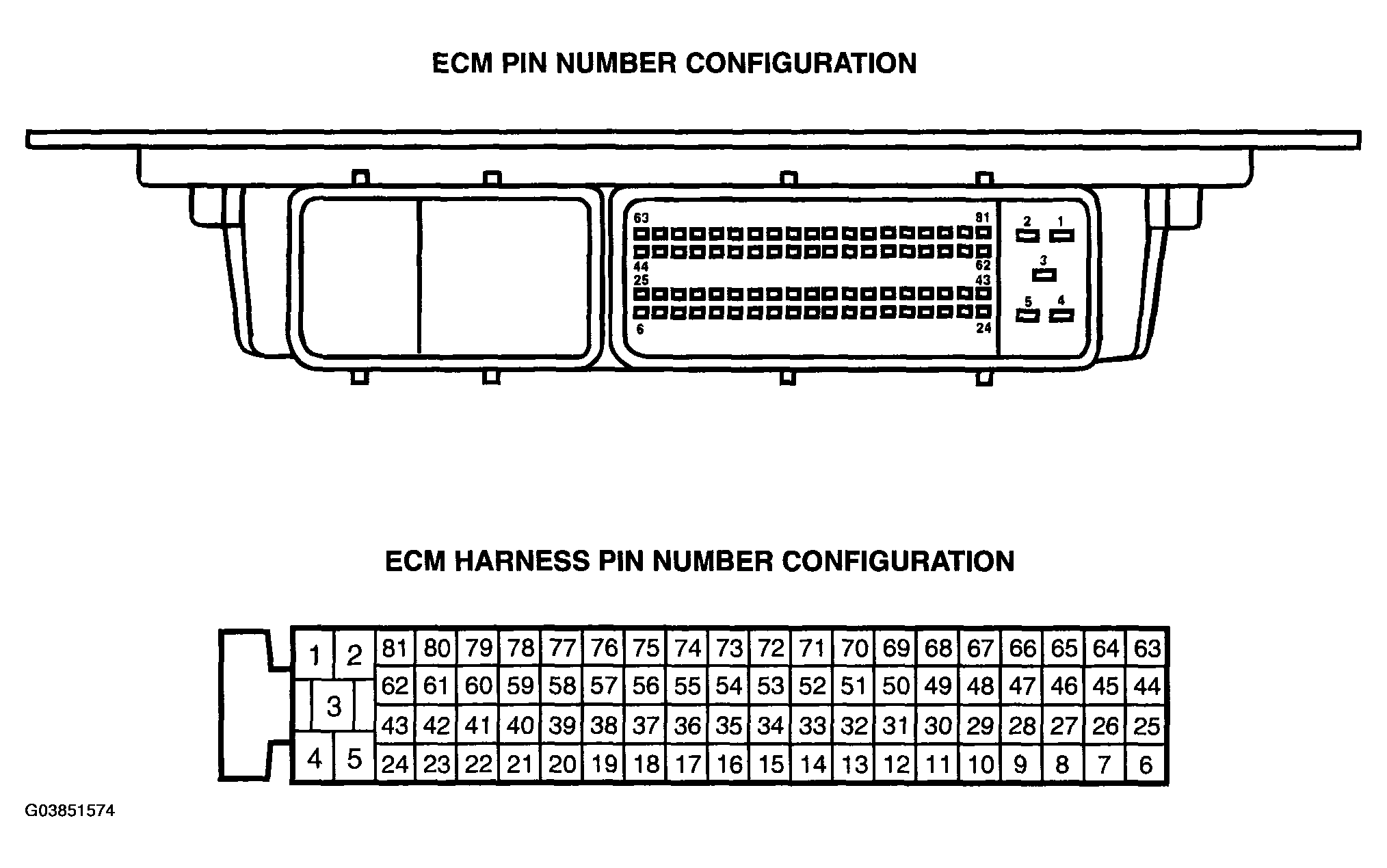

Fig 5: Identifying ECM Connector Terminals

Courtesy of HYUNDAI MOTOR CO.
