Sensor Inspection

1. Disconnect the crankshaft position sensor connector.
2. Measure the resistance between terminals 1 and 2

   Standard value:  0.486~0.594 kΩ at 20 °C (68°F)

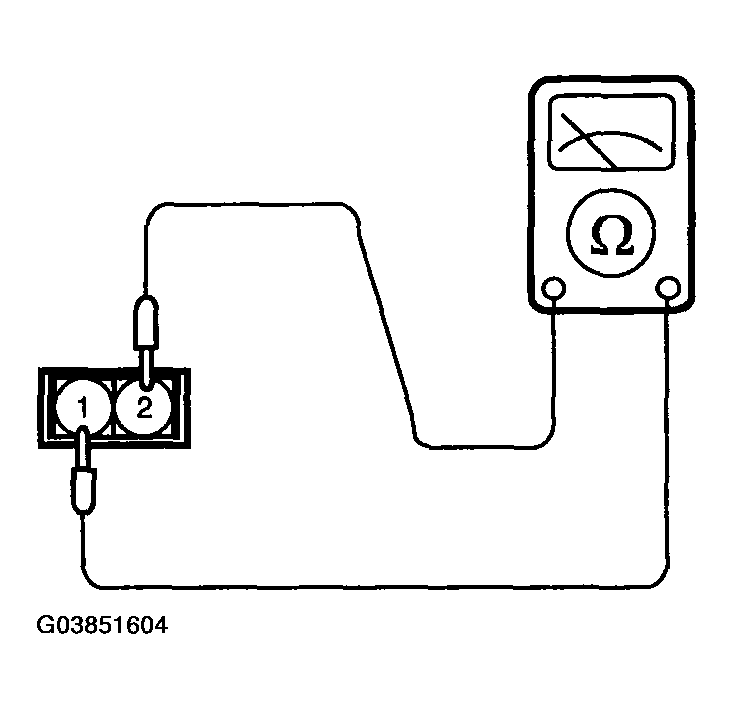

Fig 1: Measuring Resistance Between Terminals 1 And 2
Courtesy of HYUNDAI MOTOR CO.
3. If the resistance deviates greatly from the standard value, replace the sensor.

• Standard value

  Clearance between the crankshaft position sensor and crankshaft position sensor wheel:

  0.5~1.5 mm (0.020~0.059 in.)

• Tightening torque

Crankshaft position sensor:

9~11 Nm (90~110 kg.cm, 7~8 lb.ft)
