MFI Control Relay Inspection

  1. Check continuity of relay contacts between terminals 5 (+) and 1 (-).
    MFI CONTROL RELAY CONTINUITY CONDITIONS

    Relay coil (between terminal 2 & 4) Continuity
    When de-energized No
    When energized Yes

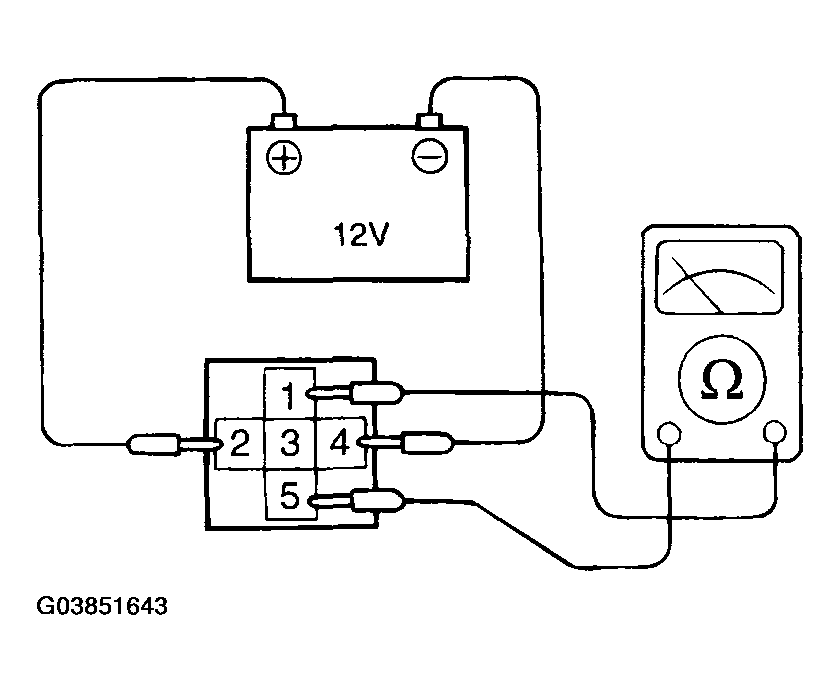

    Fig 1: Checking Continuity Of Relay Contacts Between Terminals 5 (+) And 1 (-)
    G03851643Courtesy of HYUNDAI MOTOR CO.
  2. If faulty, replace the MFI control relay.

    Tightening torque

    MFI control relay:

    7~11 Nm (70~110 kg.cm, 5.2~8.1 lb.ft)
