Harness Inspection Procedure

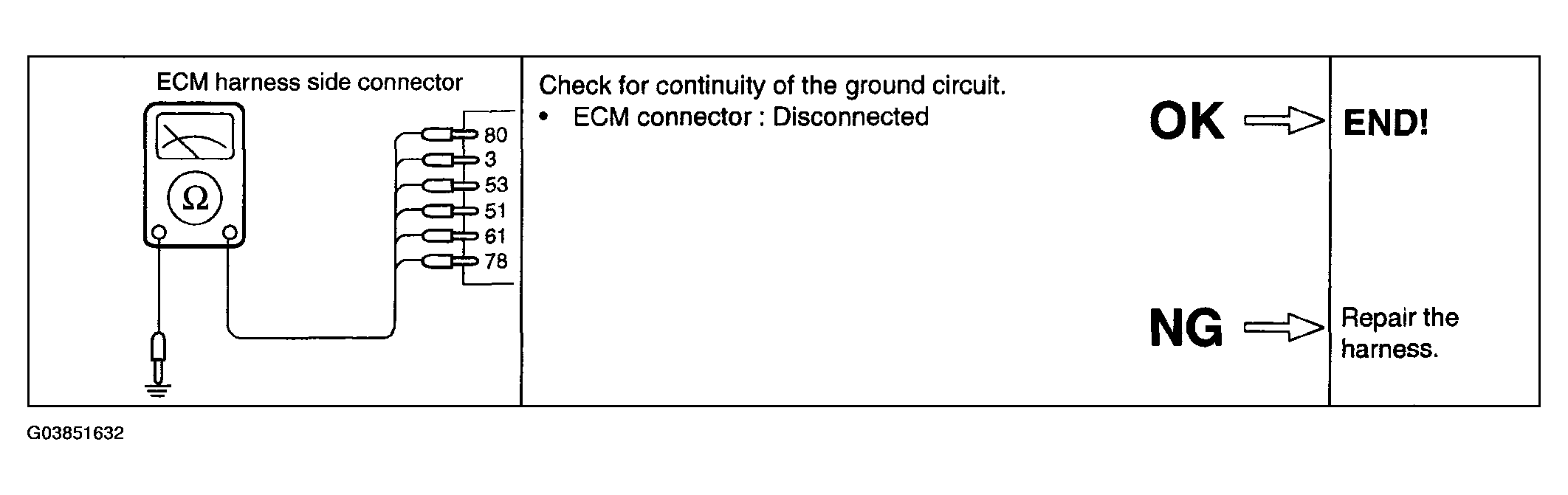

Fig 1: Engine Control Module (ECM) Harness Inspection Procedure Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
