Engine Coolant Temperature Sensor (ECTS): Notes

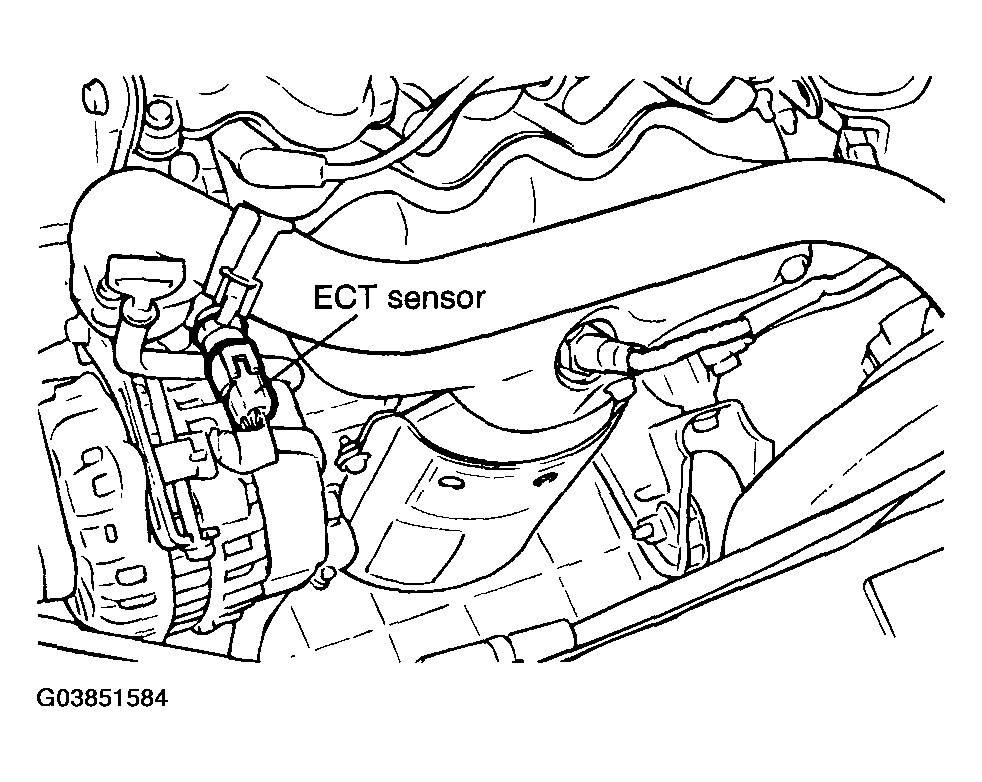

Fig 1: Identifying Engine Coolant Temperature Sensor Location

Courtesy of HYUNDAI MOTOR CO.

The engine coolant temperature sensor is located in the engine coolant passage of the cylinder head. It detects the engine coolant temperature and relays signals to the ECM. It employs a thermistor which is sensitive to changes in temperature. The electric resistance of a thermistor decreases in response to temperature increase. The ECM judges engine coolant temperature by the sensor output voltage and provides optimum fuel enrichment when the engine is cold.
