Troubleshooting Guide Chart

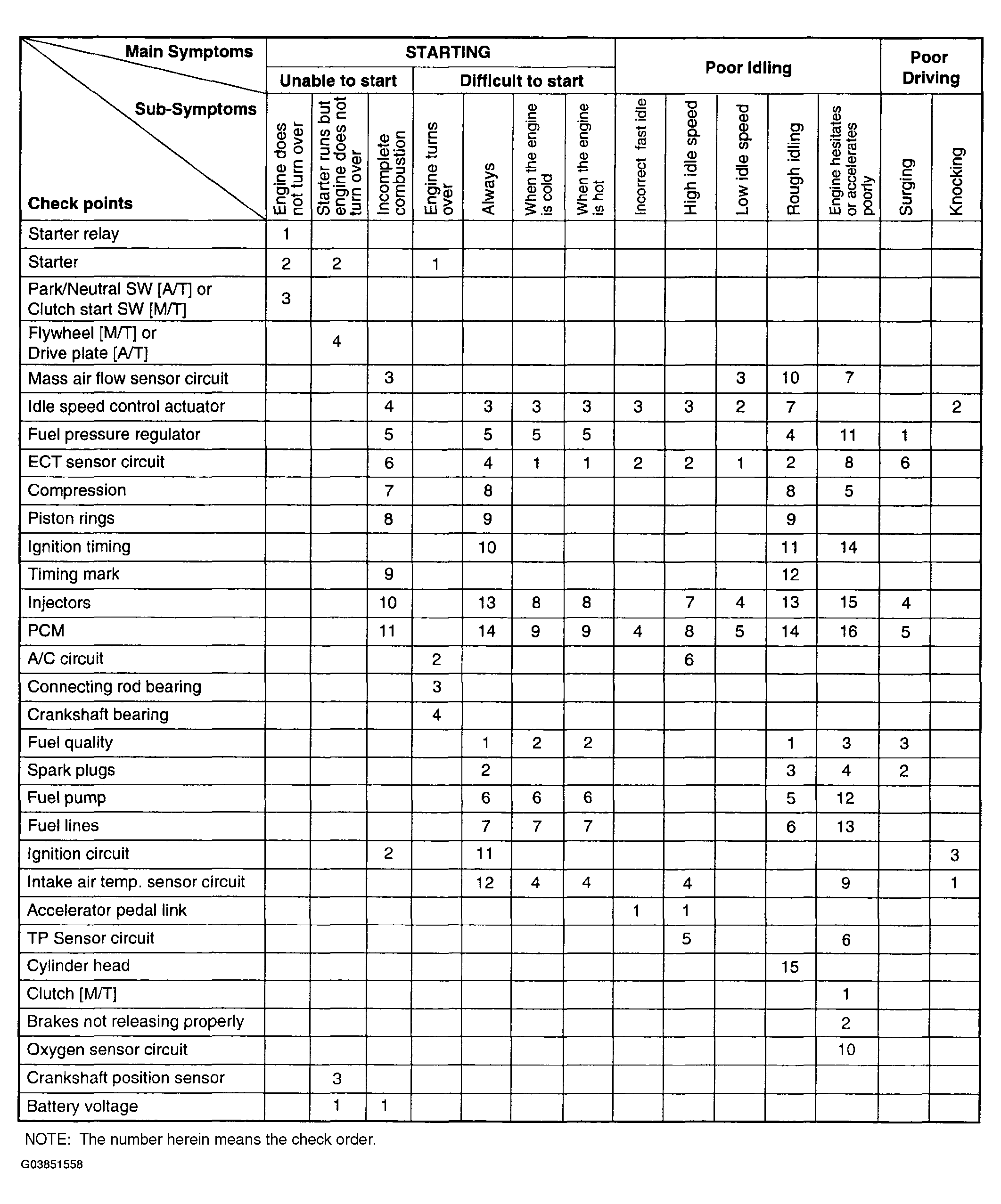

Fig 1: Troubleshooting Guide Chart (1 Of 2)
G03851558Courtesy of HYUNDAI MOTOR CO.

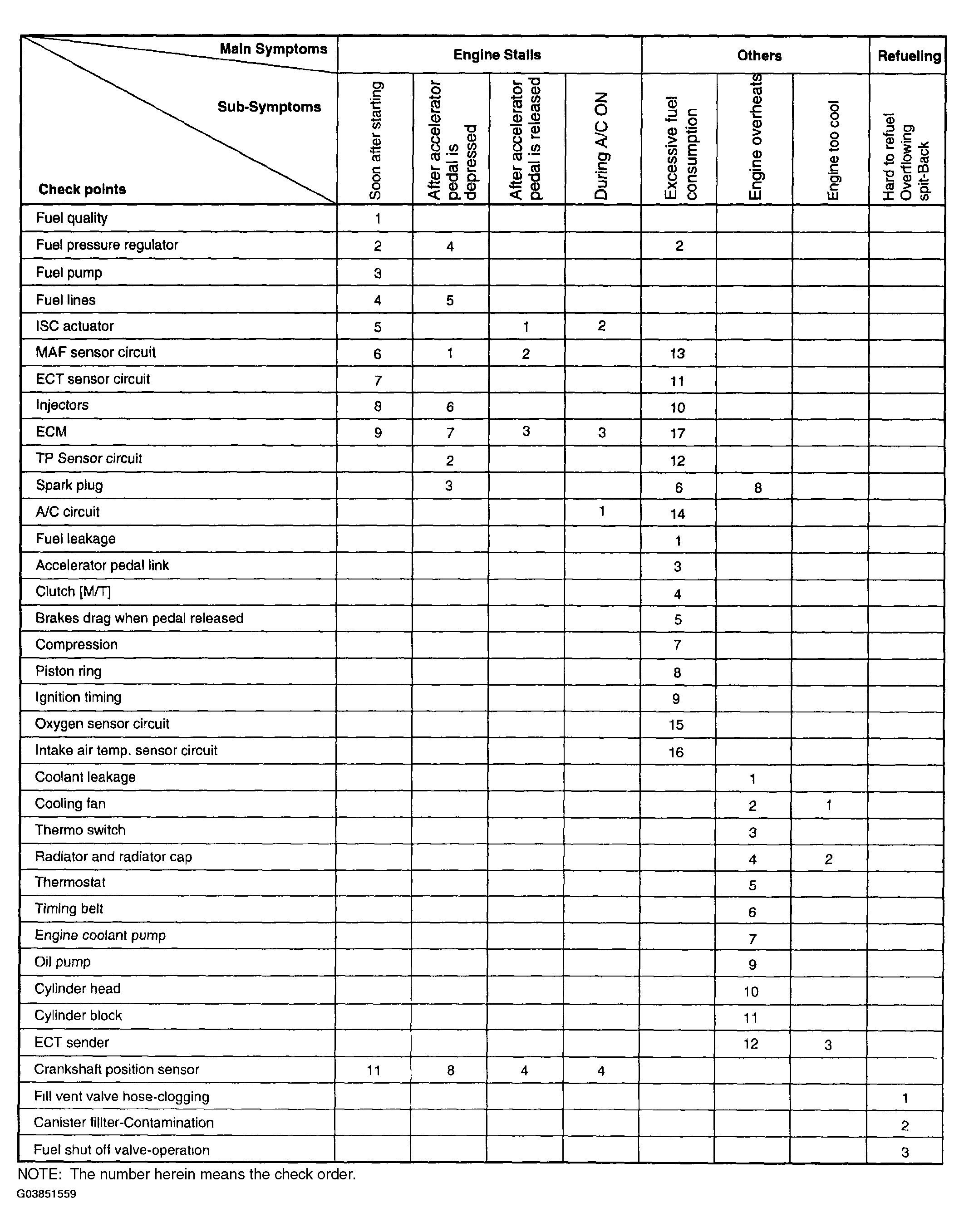

Fig 2: Troubleshooting Guide Chart (2 Of 2)
G03851559Courtesy of HYUNDAI MOTOR CO.
