Hyundai
>>
2004
>>
Accent Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control System
>>
General
>>
Schematic Drawing
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Drawing

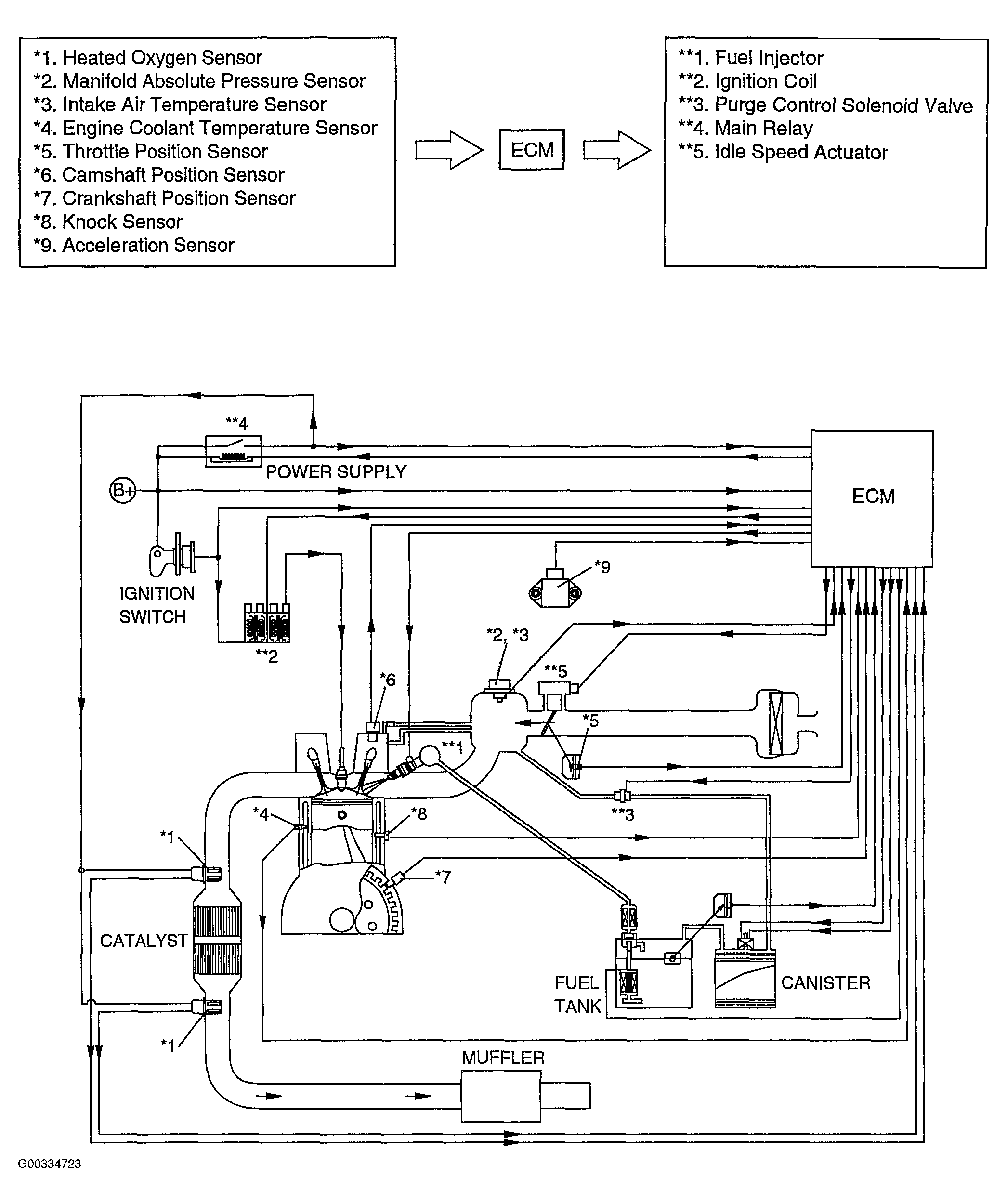

Fig 1: Emission Control Schematic
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
