DTC P0131: O2 Sensor Circuit Low Input (Bank 1, Sensor 1): DTC Detecting Condition

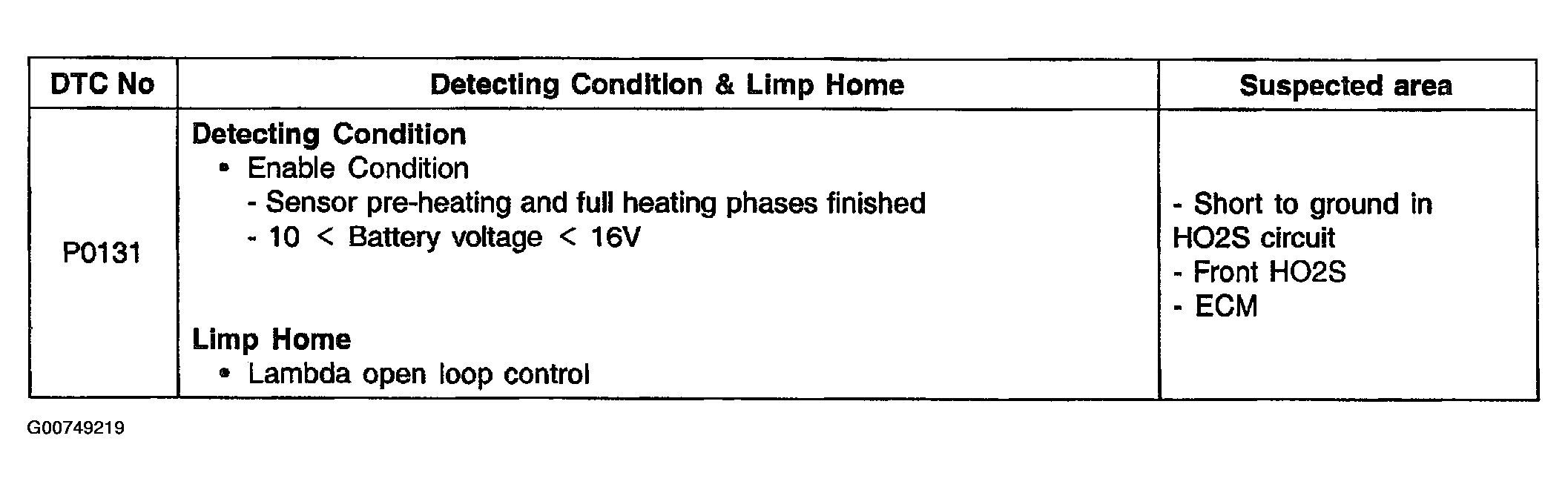

Fig 1: DTC P0131: Detecting Conditions & Probable Causes
G00749219Courtesy of HYUNDAI MOTOR CO.
