DTC P0506: Idle Control System - Rpm Lower Than Expected: Specifications

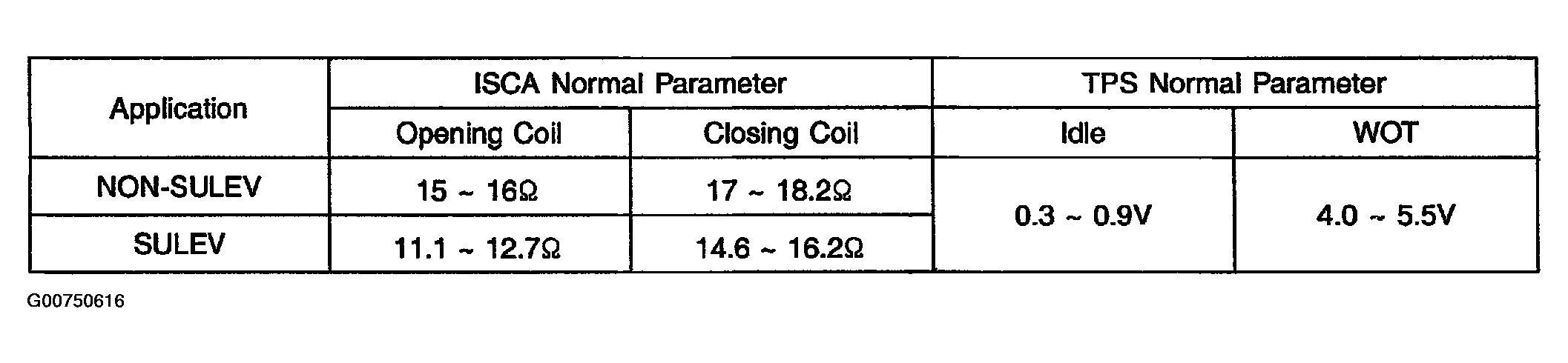

Fig 1: ISCA Specification Table
G00750616Courtesy of HYUNDAI MOTOR CO.
