Fuel Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance: 15.9 +/- 0.35Ω [at 20°C (68°F)]

  2. If the resistance is not within specifications, replace the injector.

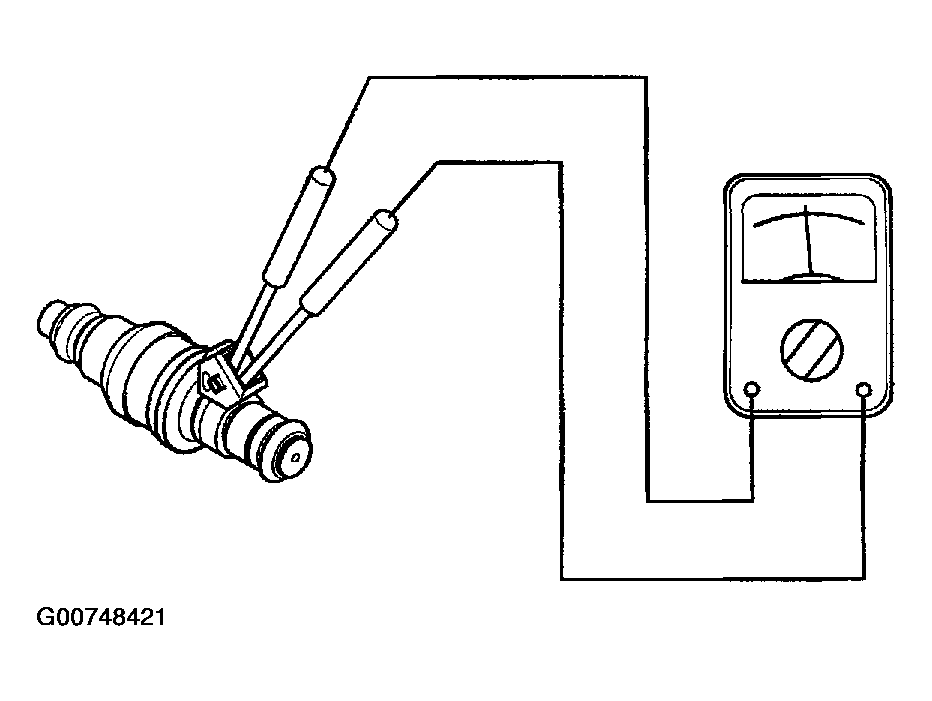

    Fig 1: Checking Fuel Injector Resistance
    G00748421Courtesy of HYUNDAI MOTOR CO.
