Inspection Chart For Diagnostic Trouble Codes (DTC)

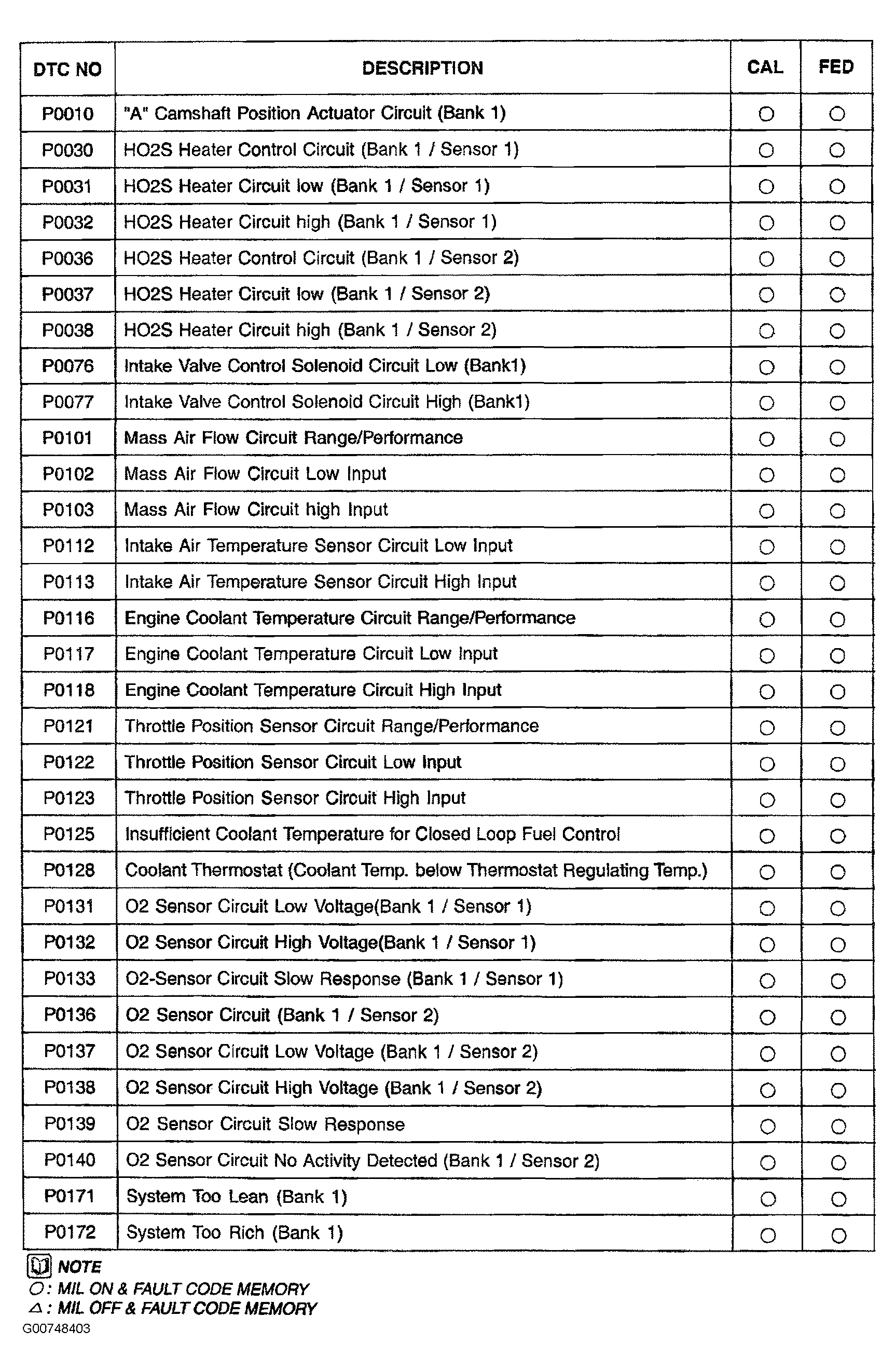

Fig 1: Diagnostic Trouble Codes (DTC) Chart (1 Of 4)
G00748403Courtesy of HYUNDAI MOTOR CO.

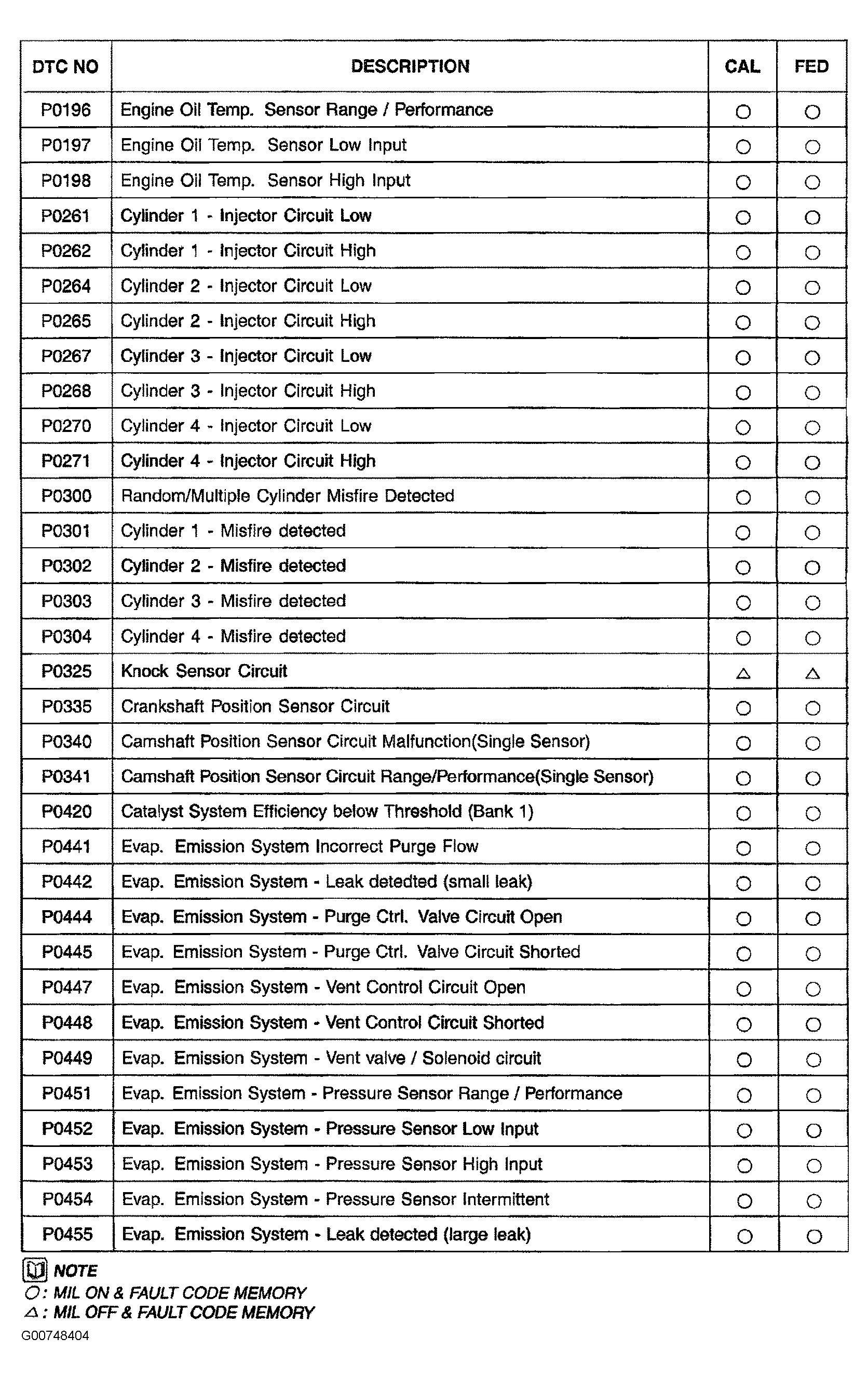

Fig 2: Diagnostic Trouble Codes (DTC) Chart (2 Of 4)
G00748404Courtesy of HYUNDAI MOTOR CO.

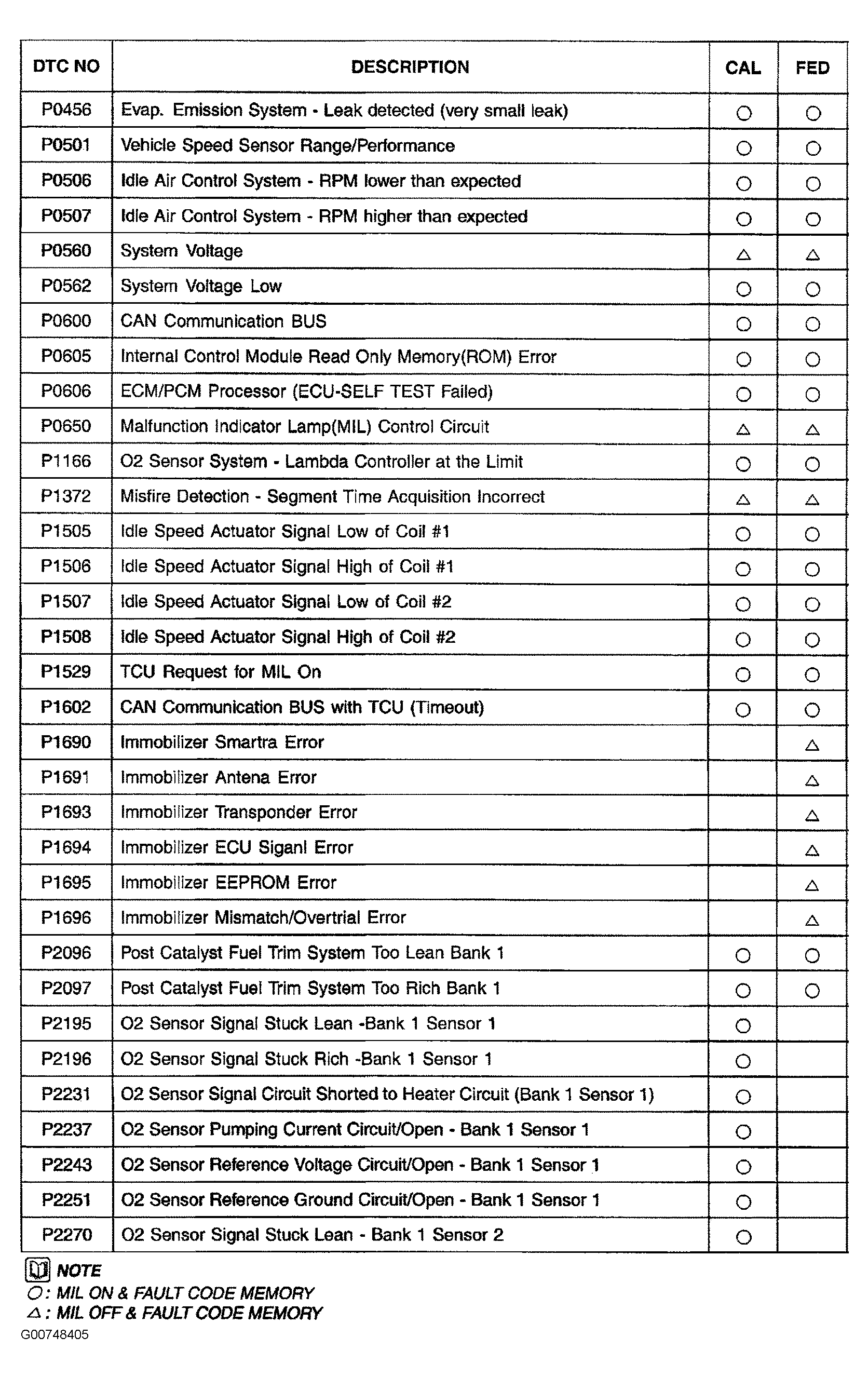

Fig 3: Diagnostic Trouble Codes (DTC) Chart (3 Of 4)
G00748405Courtesy of HYUNDAI MOTOR CO.

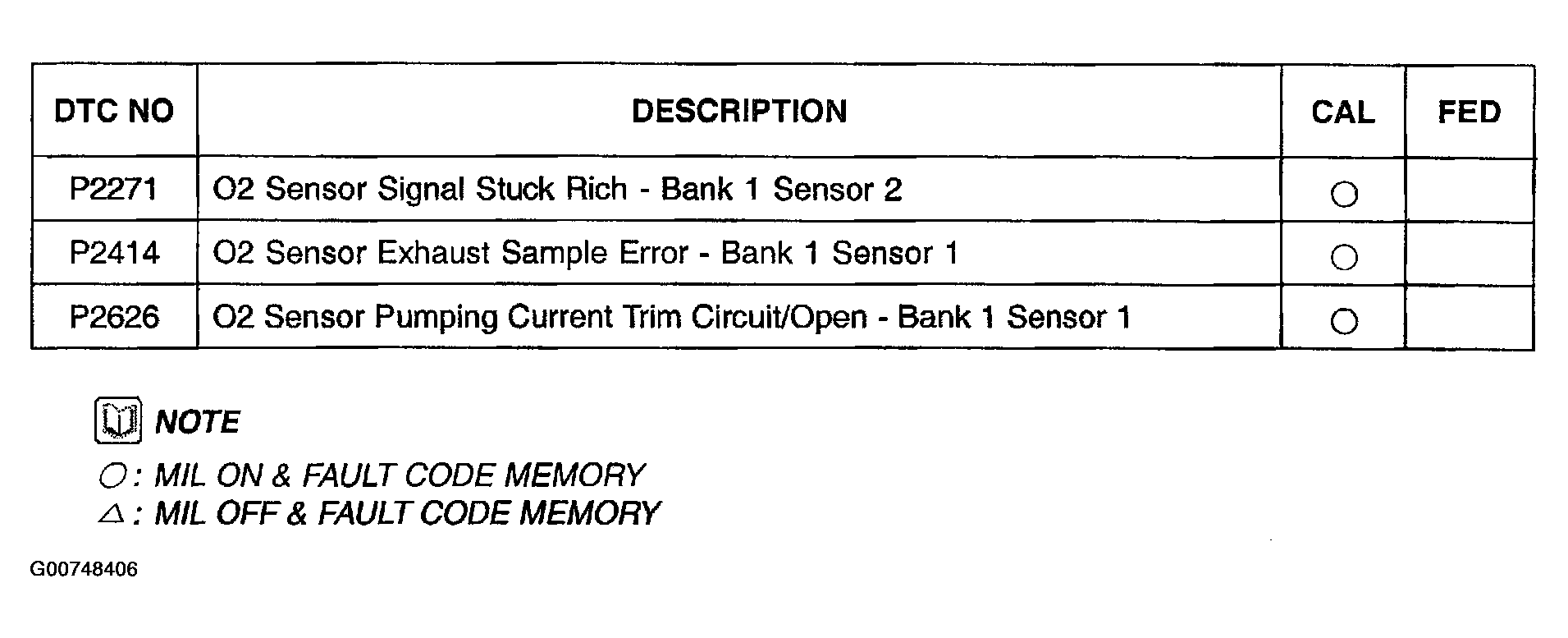

Fig 4: Diagnostic Trouble Codes (DTC) Chart (4 Of 4)
G00748406Courtesy of HYUNDAI MOTOR CO.
