Location Of MFI Components

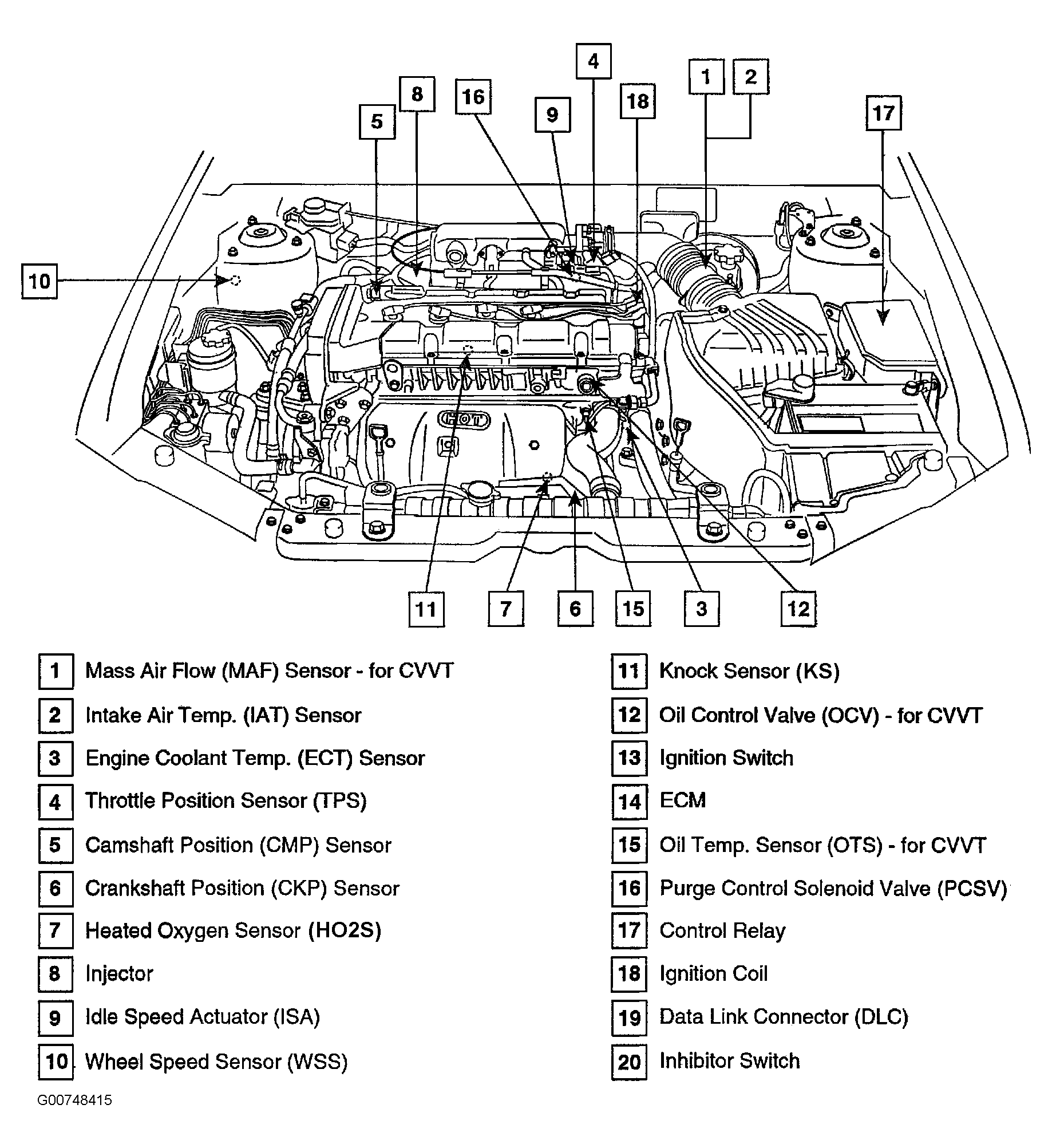

Fig 1: Locating MFI Components (1 Of 4)
G00748415Courtesy of HYUNDAI MOTOR CO.

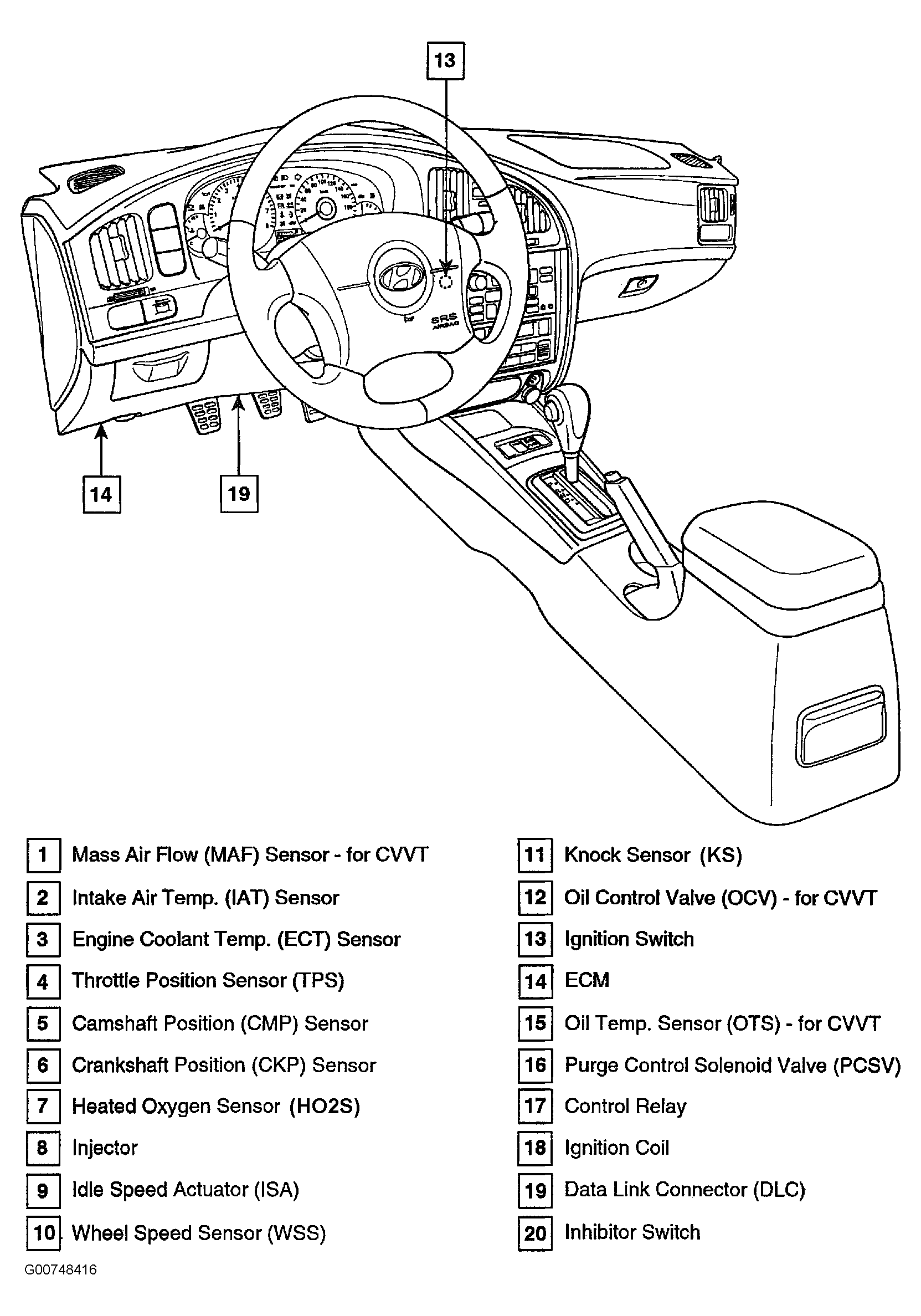

Fig 2: Locating MFI Components (2 Of 4)
G00748416Courtesy of HYUNDAI MOTOR CO.

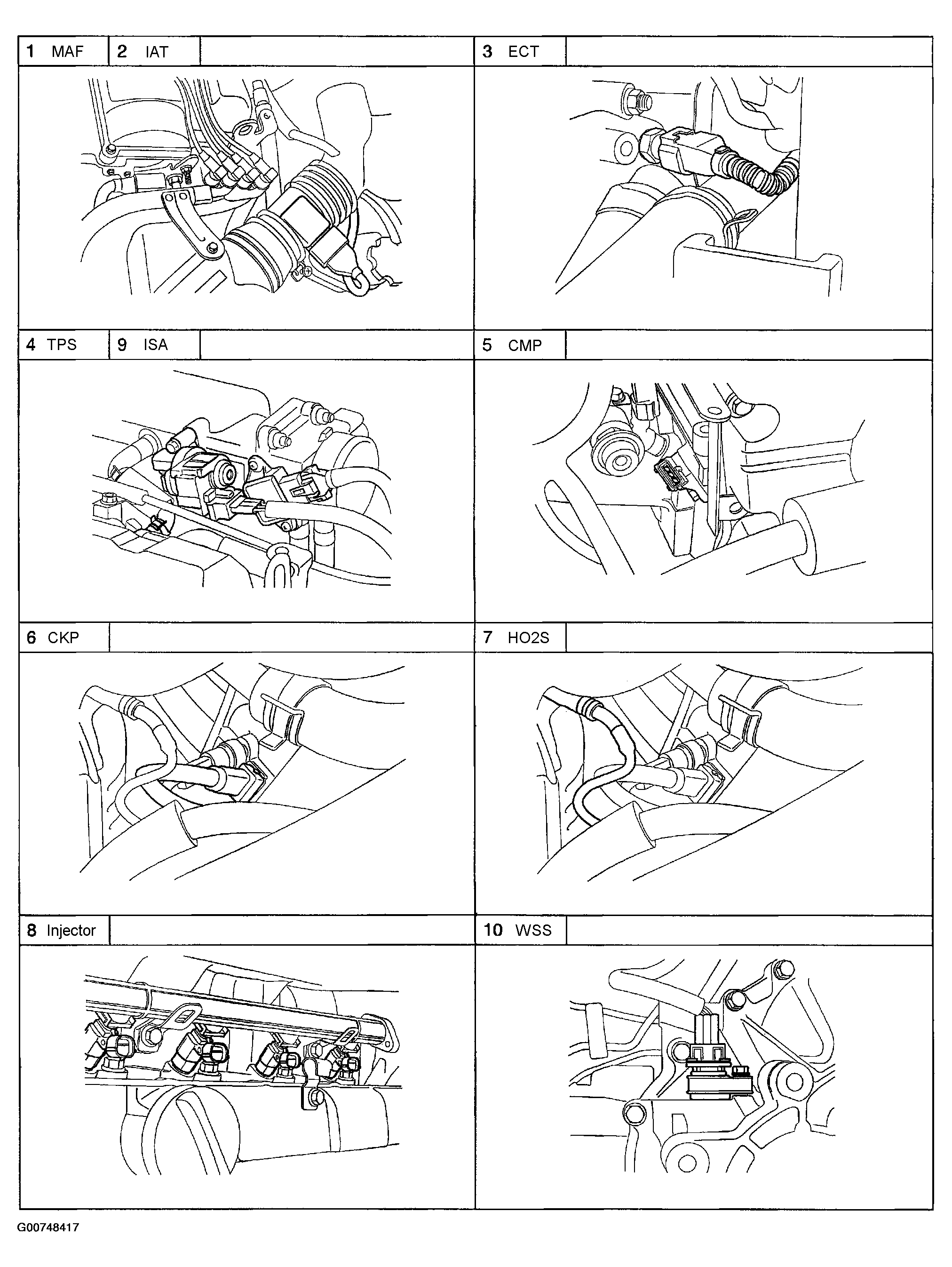

Fig 3: Locating MFI Components (3 Of 4)
G00748417Courtesy of HYUNDAI MOTOR CO.

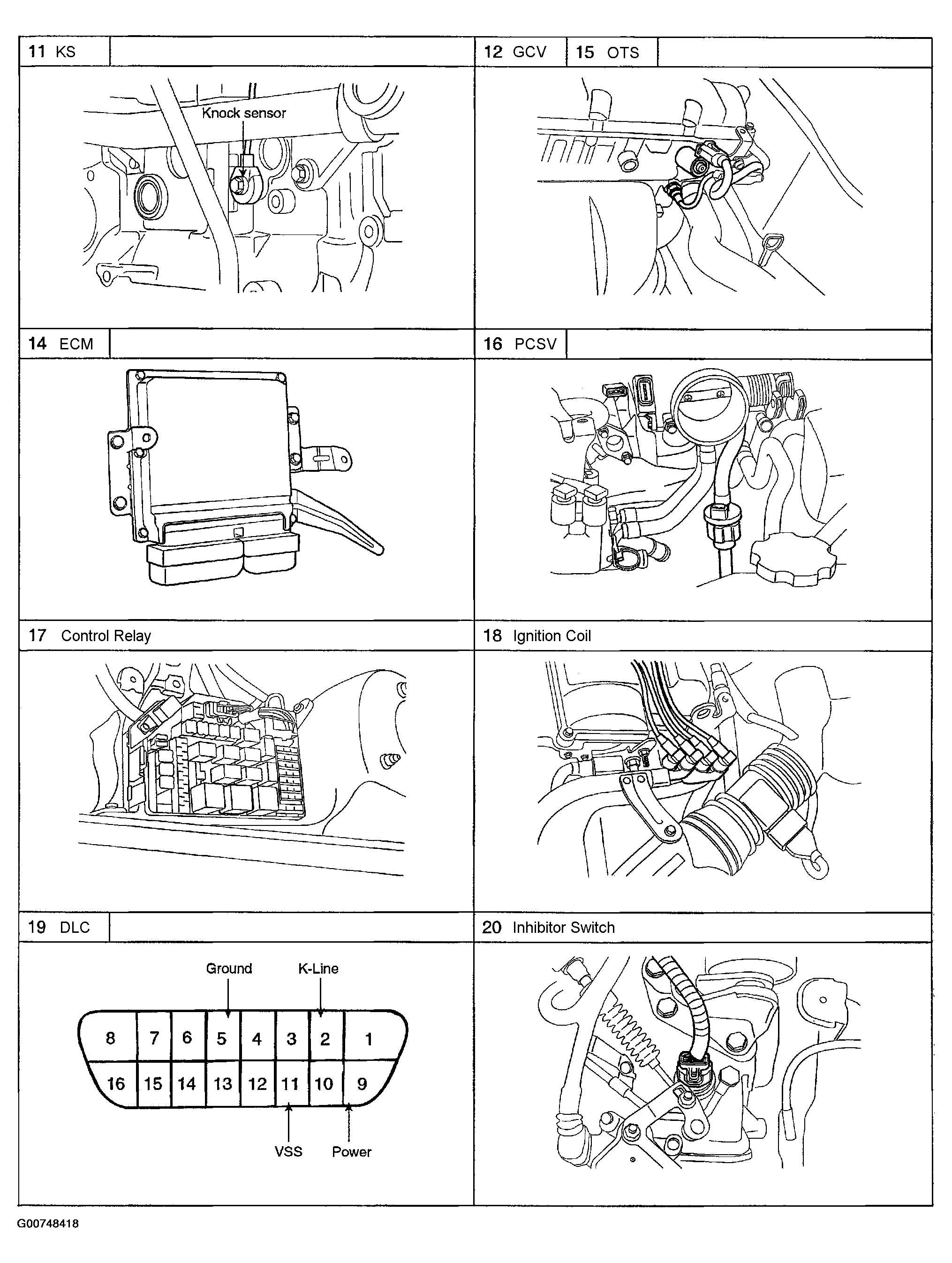

Fig 4: Locating MFI Components (4 Of 4)
G00748418Courtesy of HYUNDAI MOTOR CO.
